4.85m³ aircraft refueling truck | CL5070GJYL6 Aviation Fuel Vehicle

Product OveRView

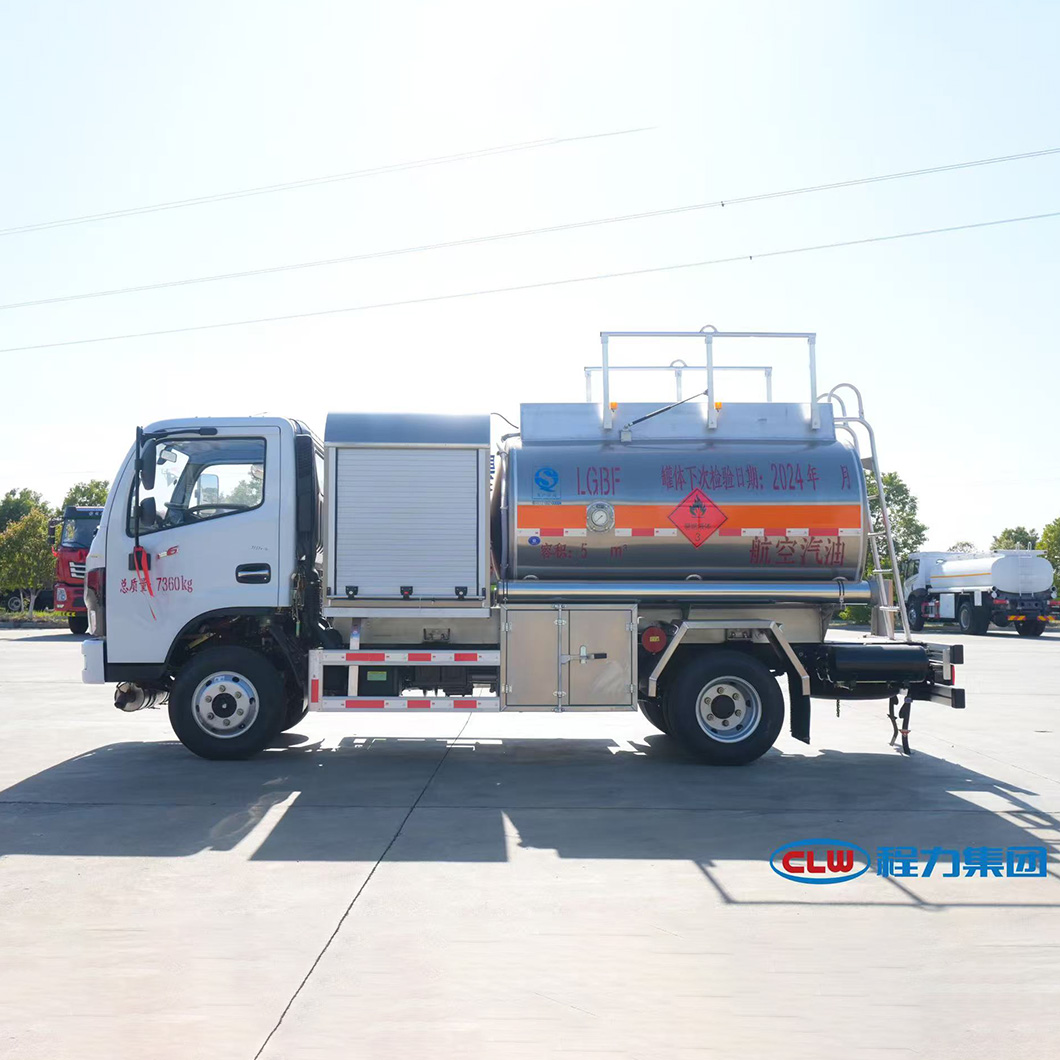

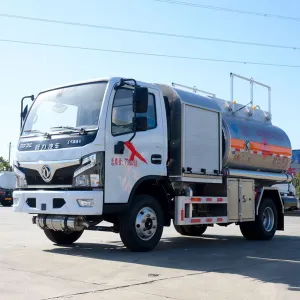

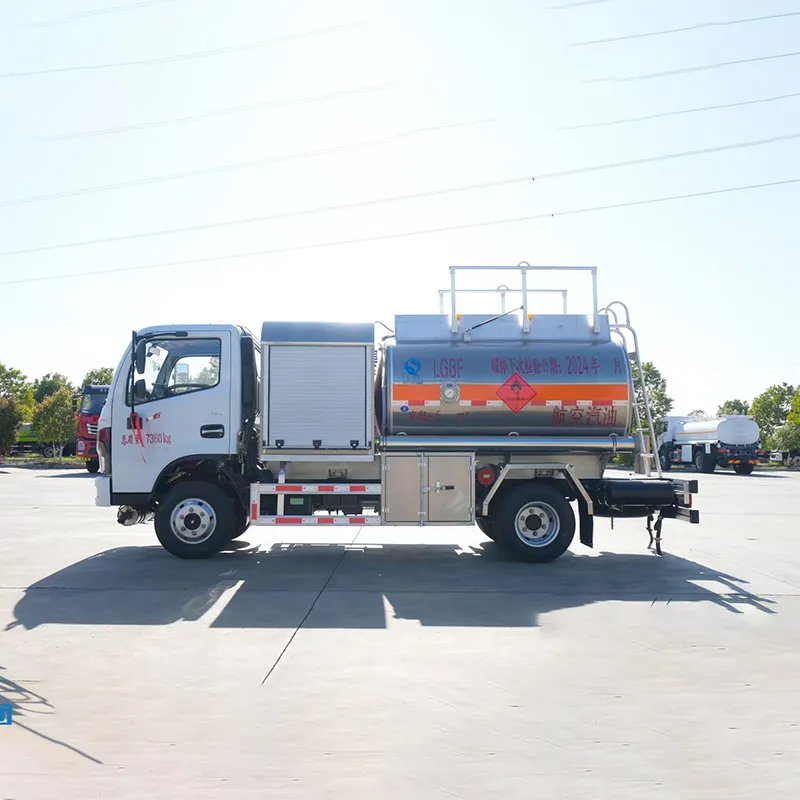

The CL5070GJYL6 4.85 cubic meter aircraft refueling truck is a compact yet highly efficient solution for the transportation and dispensing of aviation fuels, including aviation kerosene and aviation gasoline. Designed for small airports, private airfields, and regional aviation operations, this aviation fuel truck offers reliability, precision, and compliance with all hazardous materials transport regulations.

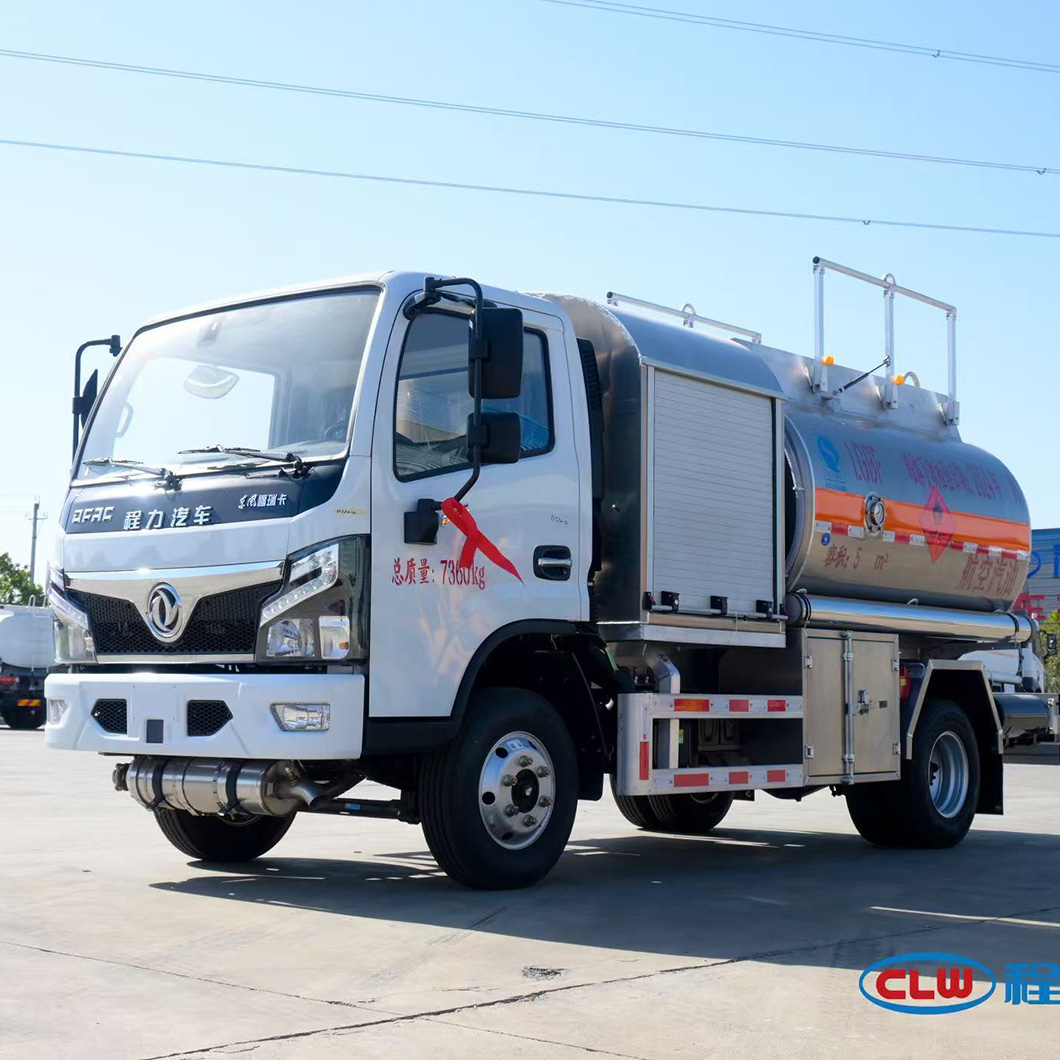

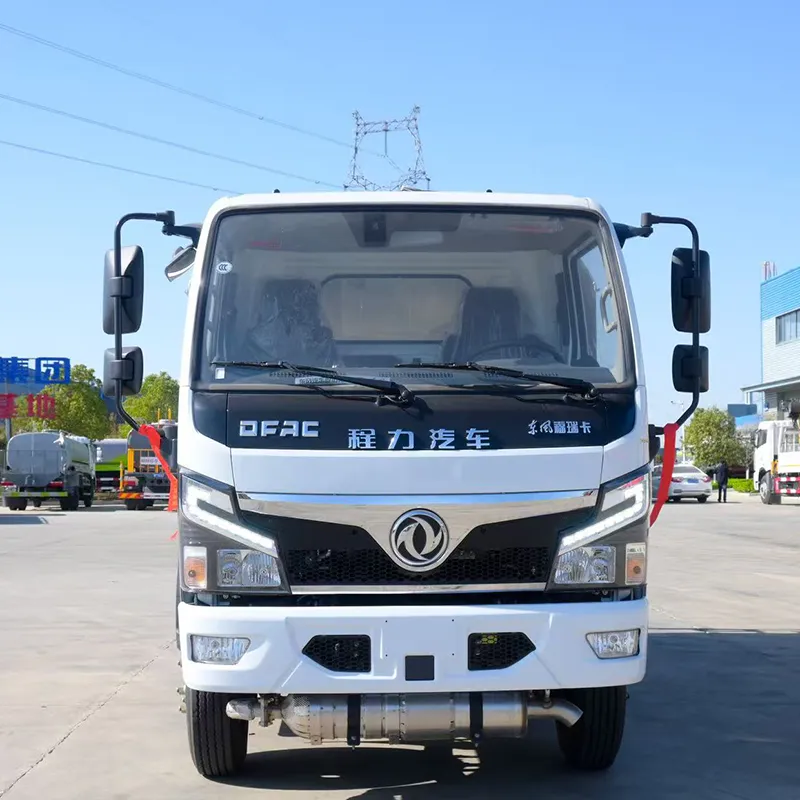

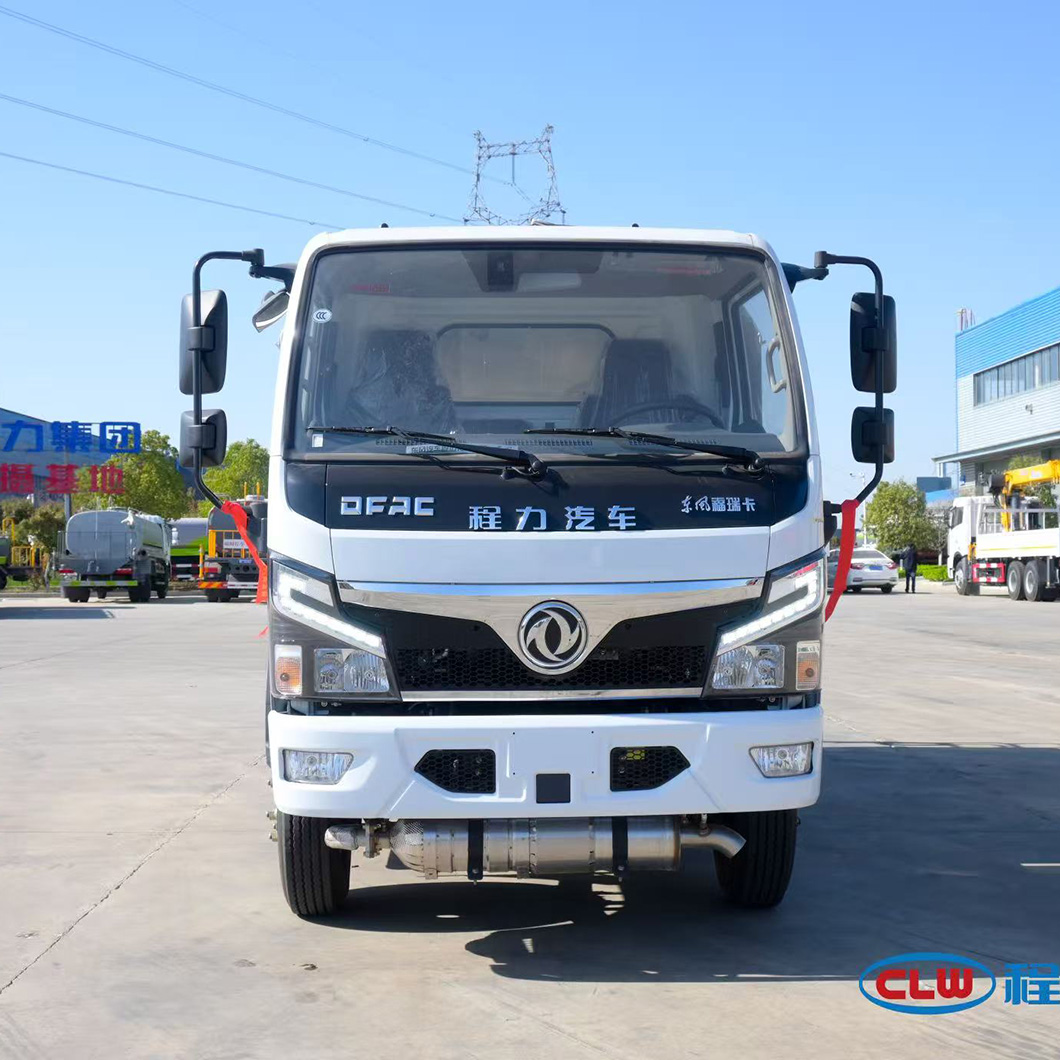

Built on the Dongfeng EQ1075SJ3CDFWXP chassis, the vehicle features a Yunnei D20TCIF1 2.0L diesel engine producing 93 kW, paired with a Wanliyang 6-speed manual transmission. The truck is equipped with modern safety and operational technologies, including ABS, air suspension, front disc and rear drum brakes, FCWS/LDWS collision and lane departure warnings, and TPMS tire pressure monitoring. Its maximum speed is 80 km/h, making it ideal for airport operations while ensuring safety during transport of flammable liquids.

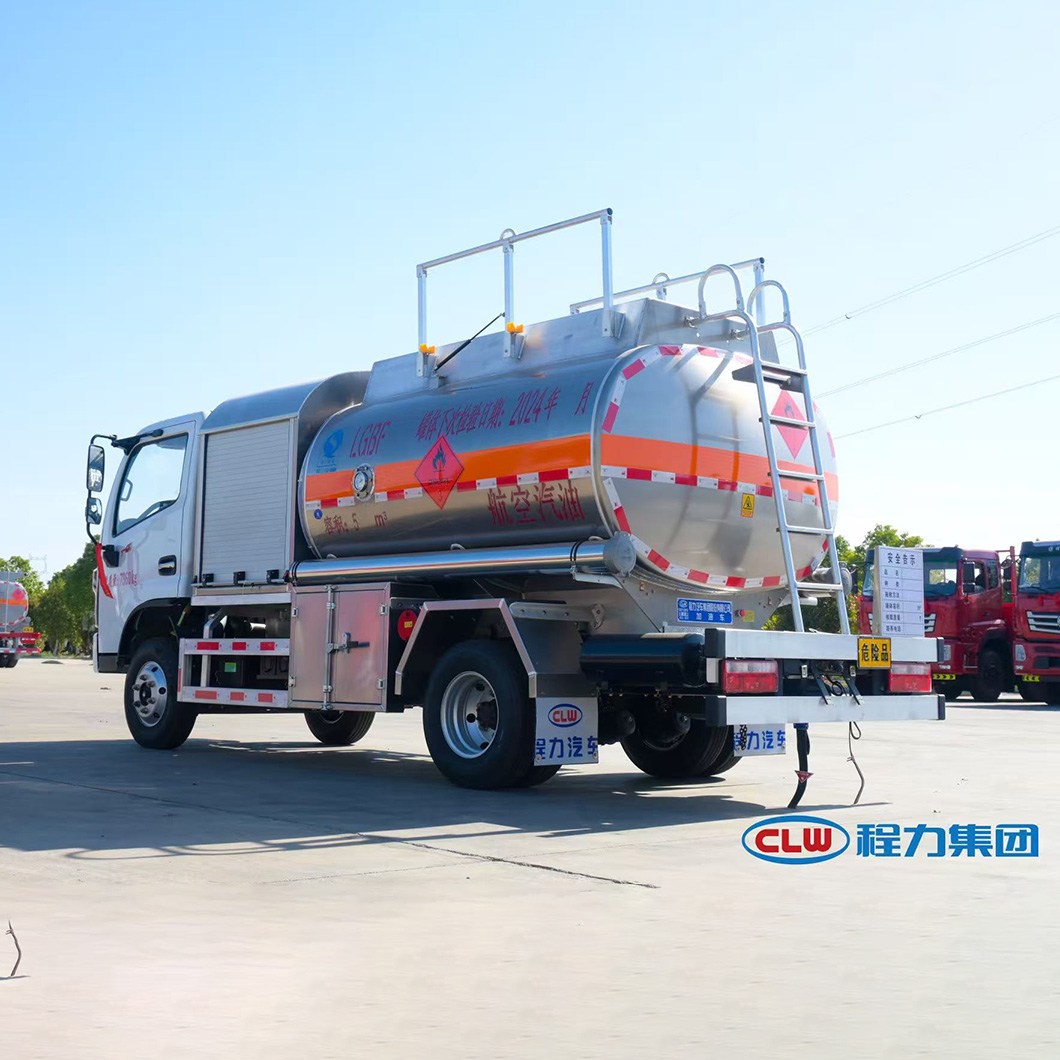

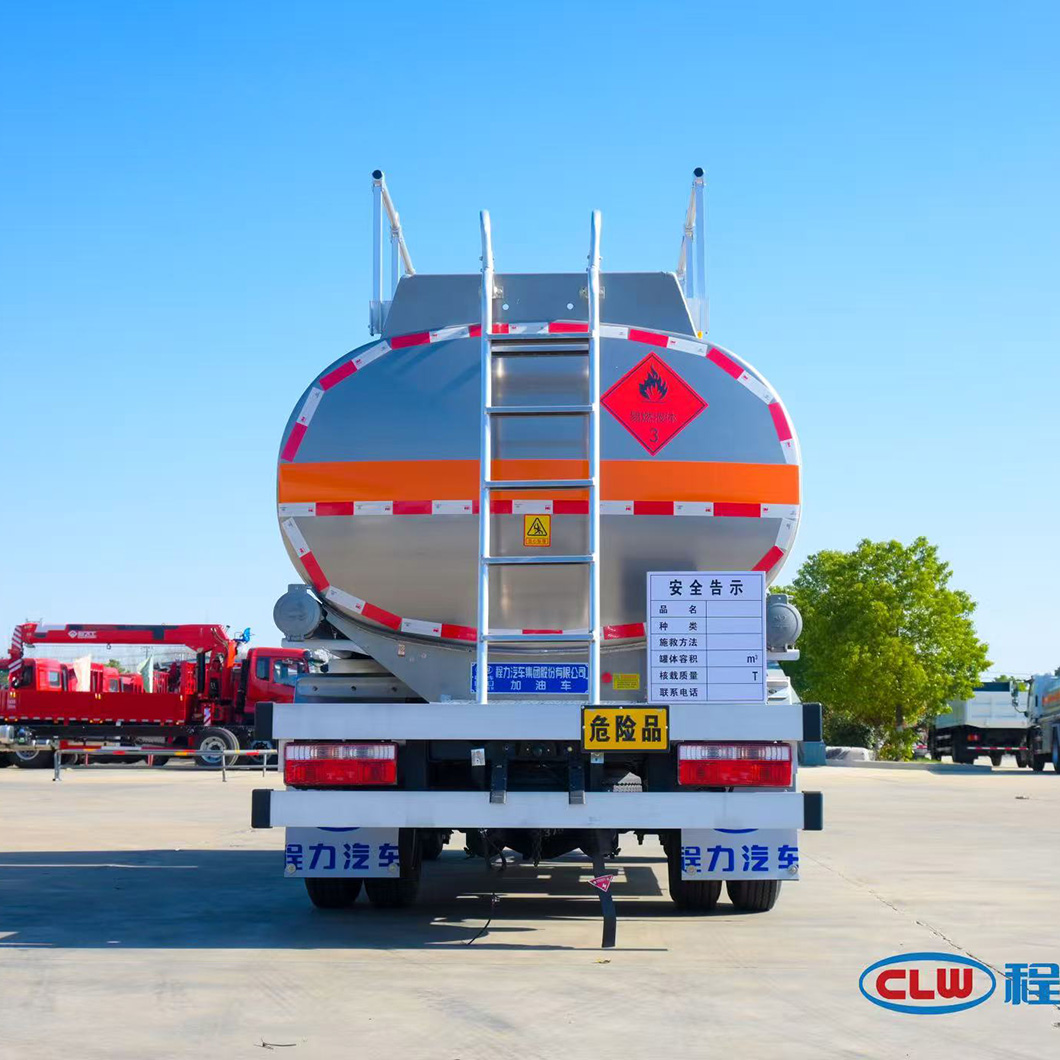

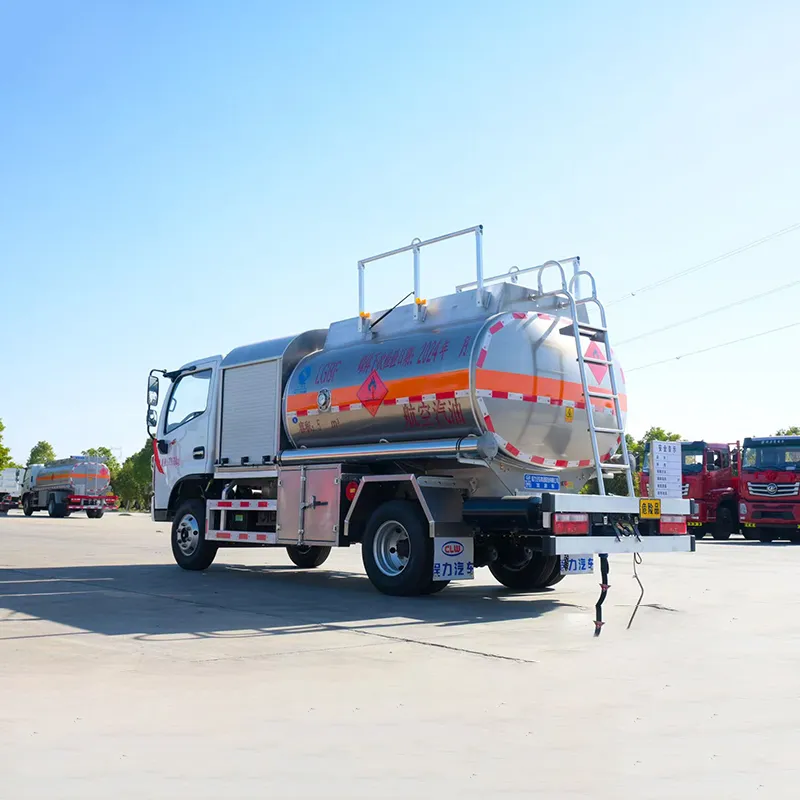

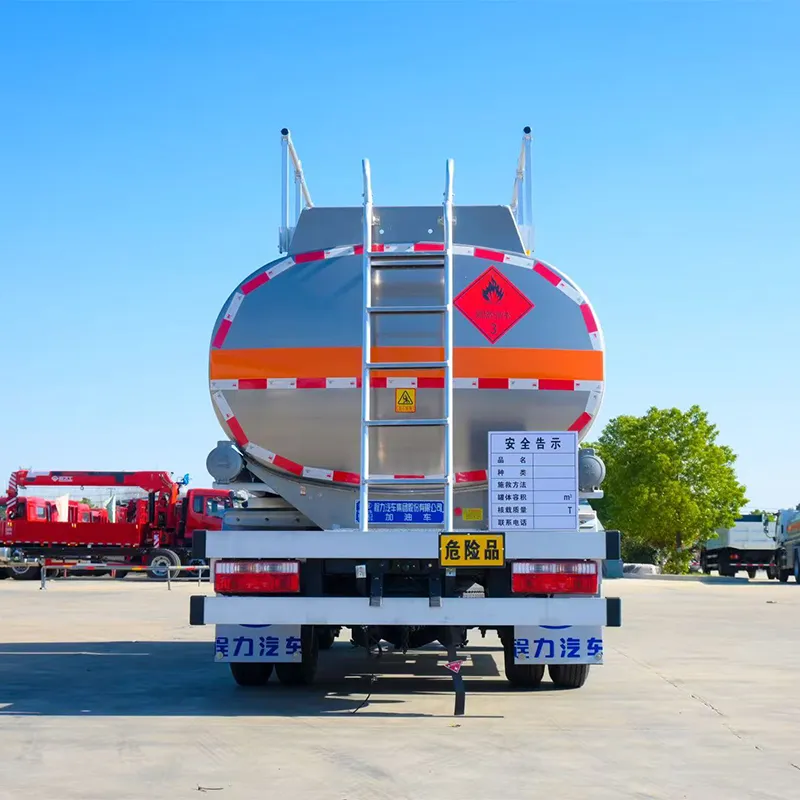

The airplane refueling vehicle is equipped with a high-quality aluminum alloy tank (5182 series) with a single compartment of 4.85 m³, ensuring corrosion resistance, lightweight construction, and fuel purity. The tank includes a central manhole with an integrated breathing valve, manual side rails, rear ladder, and integrated control panel for precise and safe operations.

Technical Specifications

Tank & Upper Body Configuration

1. Tank Structure

• Material: Aluminum alloy 5182

• Cylinder thickness: 5 mm, head thickness: 5 mm

• Single-compartment design, 4.85 m³ capacity

• Central aluminum alloy manhole with integrated breathing valve

• Manual side rails and rear removable aluminum ladder

2. Refueling System

• High-power centrifugal fuel pump (mechanical seal type)

• Hose reel with 1-inch nozzle: 70–90 L/min

• Optional 1.5-inch nozzle: 150–250 L/min

• Pipeline pumping flow: 700–800 L/min, working pressure: 0.25 MPa

• Flow meter: 0.2 grade accuracy, 50 mm diameter

• Filtration system: 5-stage stainless steel filter, rated 400 L/min, 1 MPa

3. Gravity Fueling

• Automatic reset hose reel, 25 mm diameter, 15 m length

• Liquid level indicators: stainless steel float inside tank, 4-inch aluminum gauge outside

4. Control System

• Integrated control room with independent operation

• Instrument panel: vacuum gauge, pressure gauge, differential pressure gauge

• Switches: main power, lighting, pump speed, circulation filter valves, sampling valves, sea valve control

Key Features

• Compact Design: 4.85 m³ tank ideal for small airports and regional operations

• High Safety Standards: DeadMan control, emergency shutoff valves, oil-gas recovery system

• Durable Construction: Lightweight aluminum alloy tank for corrosion resistance and fuel quality

• Precise Fuel Dispensing: Flow meters and filtration systems ensure accurate, clean fuel delivery

• Operational Convenience: Manual ladders, side rails, and integrated control panel simplify operations

Advantages

1. Reliable Performance: High-quality chassis and engine provide stability and smooth operations

2. Safety-Oriented Design: Multiple safety devices for hazard prevention and accident mitigation

3. Efficient Refueling: Hose reels and precision flow meters accelerate fuel dispensing

4. Regulatory Compliance: Fully meets FL-type hazardous fuel transport requirements

5. User-Friendly Operations: Ergonomic controls, easy-to-access ladders, and integrated toolboxes

Applications

• Small airports for passenger aircraft refueling

• Private or corporate airfields

• Regional aviation fueling operations

• Emergency fuel transport in remote or temporary airstrips

FAQ

Q1: What is the tank capacity of this aircraft refueling truck?
A: 4.85 m³, effective volume 4.62 m³.

Q2: What fuels can it carry?
A: Aviation kerosene and aviation gasoline.

Q3: Is this vehicle safe for hazardous fuel transport?
A: Yes, it includes DeadMan control, emergency valves, ABS/ASR, and oil-gas recovery systems.

Q4: What chassis and engine does it use?
A: Dongfeng EQ1075SJ3CDFWXP chassis with Yunnei 2.0L engine, 93 kW.

Q5: Does it include refueling accessories?
A: Yes, hose reel, flow meter, filtration system, and integrated control cabinet.
