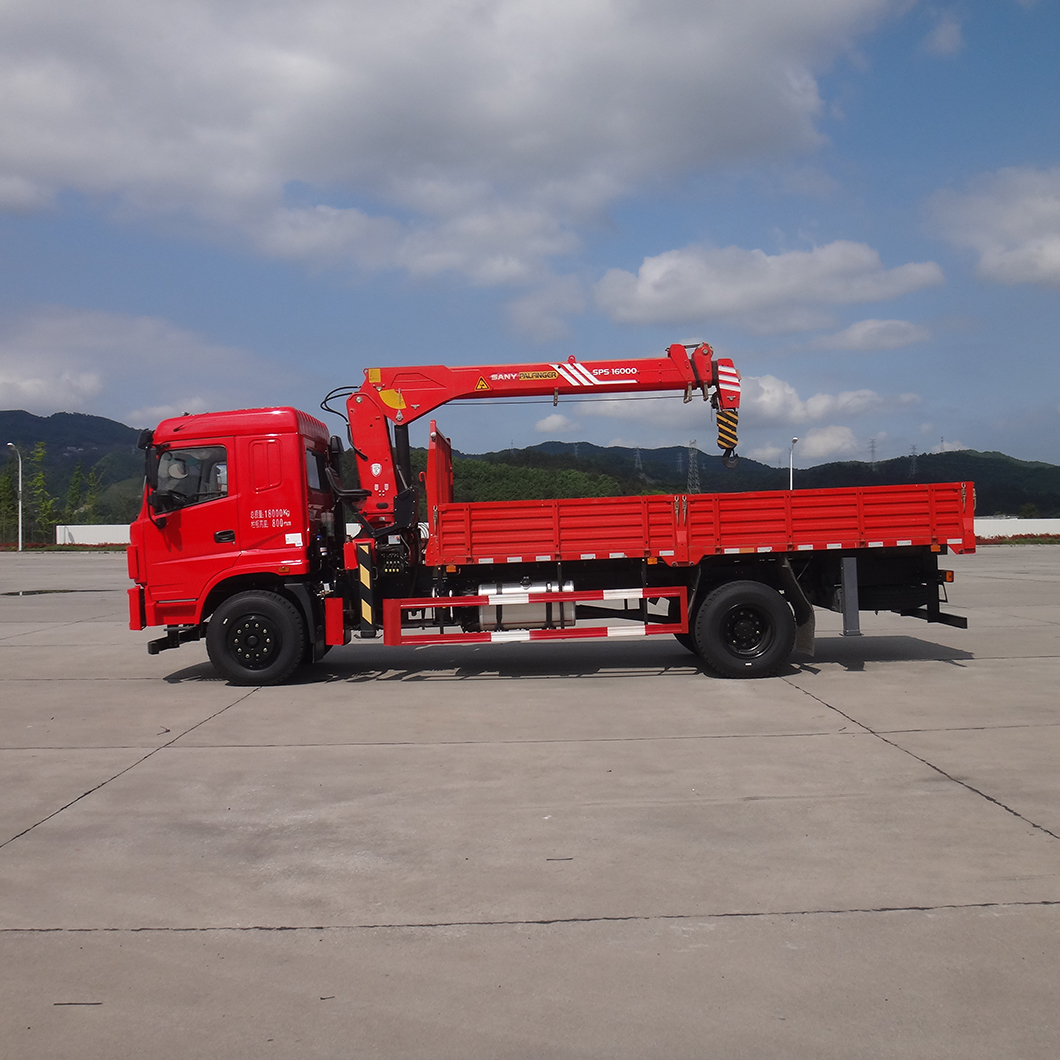

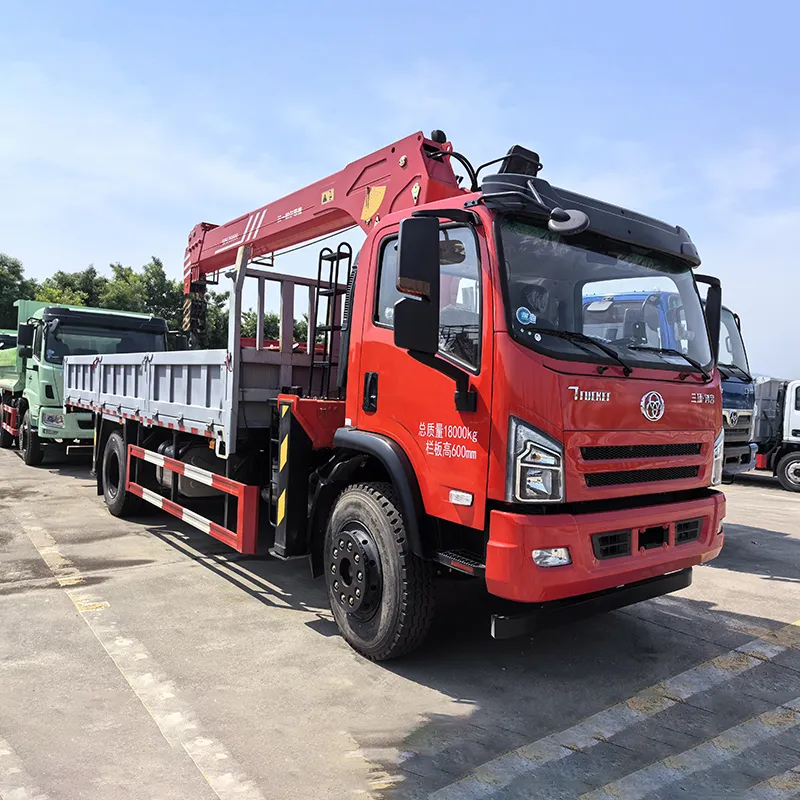

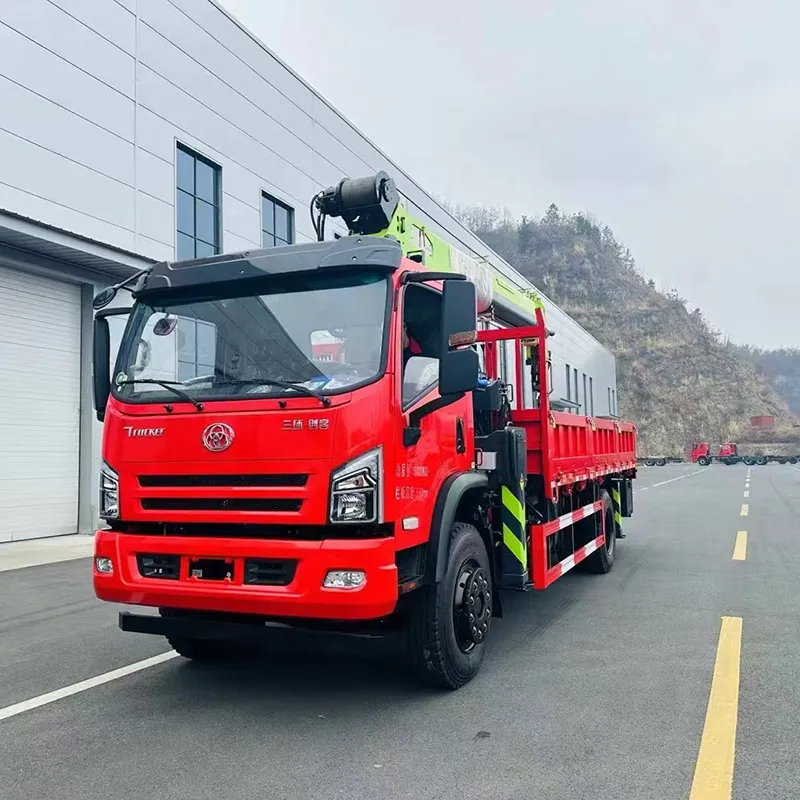

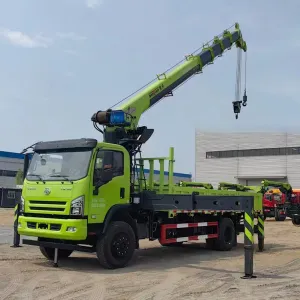

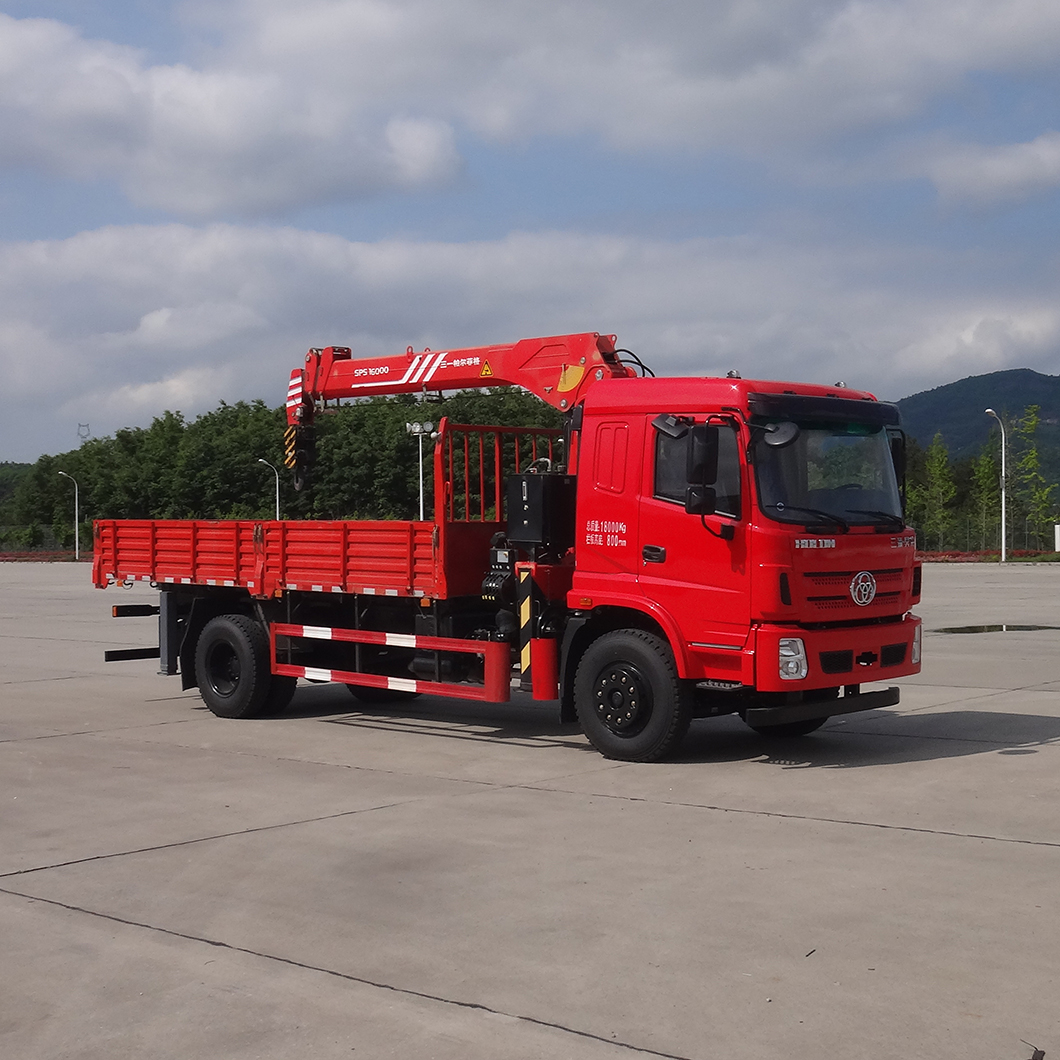

STQ5189JSQN6 Truck-mounted crane Transporter

Keywords: Truck-mounted crane, crane truck, Truck loader crane

Product OveRView

The STQ5189JSQN6 Truck-Mounted Crane Transporter is a high-performance solution designed for lifting, transporting, and material handling. This versatile crane truck merges the strength of a truck chassis with the functionality of a heavy-duty crane, making it ideal for construction, logistics, and industrial projects.

With 360° crane rotation, high lifting capacity, and robust hydraulic systems, this truck loader crane delivers reliability, efficiency, and precision. Its ergonomic cabin and durable chassis ensure operator comfort and long-term durability, making it the perfect mobile lifting solution.


Product Parameters

Category	Parameter	Specification
Basic Vehicle	Manufacturer	Hubei Tri-Ring Motor Co., Ltd.
	Model	STQ5189JSQN6
	Drive Form	4×2
	Total Mass (kg)	18,000
	Curb Weight (kg)	12,450
Dimensions	Length (mm)	9,000
	Width (mm)	2,550
	Height (mm)	3,850
	Wheelbase (mm)	5,000
Performance	Maximum Speed (km/h)	88
	Maximum Gradeability	30%
Engine	Manufacturer	Yuchai
	Displacement (L)	4.2
	Rated Power (kW)	162–173
	Emission Standard	Euro II–VI
Cabin	Type	Single-row semi-high roof
	Model	F3 (2100) (2.1m wide)
	Features	Airbag seat, Bluetooth radio, laminated glass, electric doors/windows, wide bumper, central locking
Gearbox	Type	Manual, 8-speed
Front Axle	Type	Drum brake
	Loadable Mass (kg)	5,000
Rear Axle	Type	Drum brake
	Loadable Mass (kg)	10,000
	Speed Ratio	5.143
Frame	Section Size (mm)	280 × 65 × (8 + 5), full three-layer outsourcing
Leaf Spring	Pieces	9 front, 11+8 rear
Tires	Type	Steel wire
	Quantity	6+1
	Model	10.00R20-18
Steering System	Type	Hydraulic power steering
Braking System	Service Brake	Double circuit air brake
	Parking Brake	Spring brake, hand control
	ABS	Yes
Electrical System	Voltage	24V
	Battery	100AH dual battery
Crane	Maximum Lifting Capacity (kg)	7,000
	Brand	Sany / XCMG
	Maximum Lifting Height (m)	15
	Rotation Angle (°)	360
	Max Working Pressure (MPa)	26
	Crane Weight (kg)	3,900
	Leg Type	H
	Leg Span (m)	2.28–5.9
Cargo Box	Size (mm)	6,100 × 2,450 × 600
	Material	Q235 Steel
	Thickness	Edge 2 mm, Bottom 4 mm
Other Features	Standard Equipment	Warning triangle, tool kit, rear spare tire, ABS, air conditioning, front lower protection, sunshade

Features

High Lifting Capacity: Handles up to 7,000 kg for demanding industrial tasks.
360° Rotating Crane: Full-circle rotation allows precise positioning in tight spaces.
Durable Hydraulic System: Ensures smooth, accurate lifting and long-term reliability.
Ergonomic Cabin: Semi-high roof, excellent visibility, airbag seat, and modern control features.
Reinforced Chassis: Multi-leaf suspension and reinforced frame maintain stability during lifting.
Multi-Terrain Performance: 4×2 drive and 30% gradeability enable operation on various surfaces.
Safety Features: ABS, hand-controlled parking brake, hydraulic steering, reinforced frame.

Advantages

Versatility: Combines transport and lifting in one vehicle, reducing fleet costs.
Efficiency: Rapid crane deployment and transportation reduce operational downtime.
Durability: High-quality steel and reinforced frame ensure long-lasting performance.
User-Friendly Design: Ergonomic cabin and intuitive controls reduce operator fatigue.
Eco-Friendly: Meets Euro II–VI emission standards for international compliance.
Customizable Options: Choice of crane brand and adjustable leg span for specific needs.

Applications

Construction Sites: Lifting and transporting steel, concrete, and equipment.
Logistics & Freight: Efficient loading/unloading of machinery, containers, and industrial goods.
Urban Infrastructure: Road maintenance, utility installation, and tight-space operations.
Industrial Maintenance: Moving machinery and plant components in factories.
Ports & Warehouses: Loading cargo in confined spaces.

The STQ5189JSQN6 Truck-Mounted Crane is a reliable choice for industries seeking a truck loader crane that integrates mobility and lifting functionality.

Frequently Asked Questions (FAQ)

Q1: What is the maximum lifting capacity?
A1: 7,000 kg.

Q2: Can the crane rotate fully?
A2: Yes, 360° rotation for precise positioning.

Q3: What type of engine is used?
A3: Yuchai 4.2L engine, Euro II–VI standard, 162–173 kW.

Q4: What terrains can it operate on?
A4: 4×2 drive, 30% gradeability; suitable for urban roads and construction sites.

Q5: How many tires does it have?
A5: 6+1 steel wire tires, 10.00R20-18.

Q6: Which crane brands are available?
A6: Sany and XCMG.

Q7: Is it suitable for urban projects?
A7: Yes, compact design and full crane rotation make it ideal for urban construction.

Q8: What safety features are included?
A8: ABS, hydraulic power steering, hand-controlled parking brake, reinforced frame.

Q9: What is the cargo box size?
A9: 6,100 × 2,450 × 600 mm, Q235 steel.

Q10: Does the cabin offer comfort features?
A10: Yes, airbag seat, electric windows/doors, Bluetooth radio, laminated glass, wide-view mirror.
