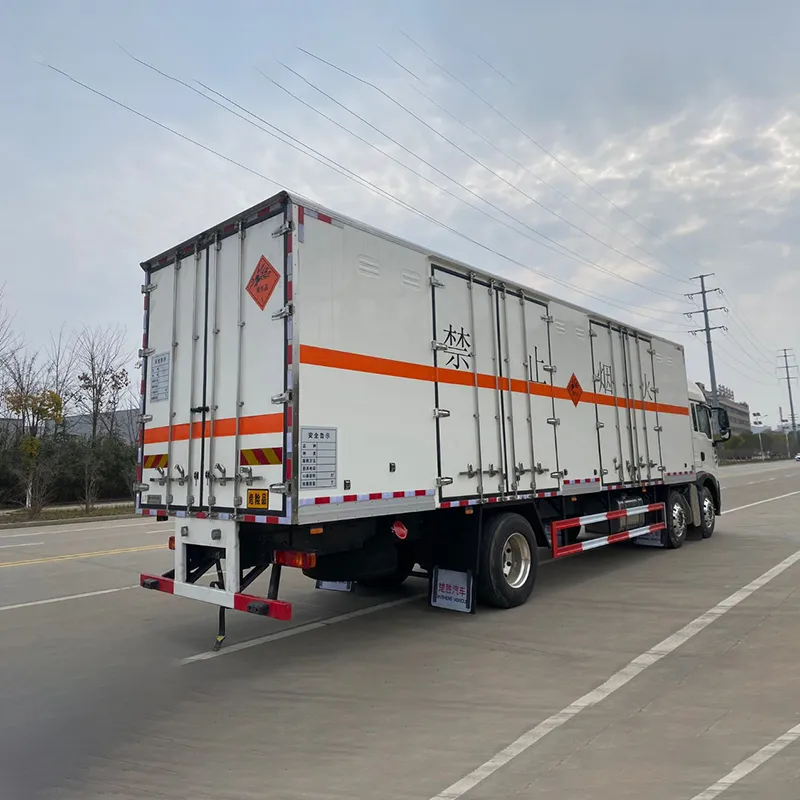

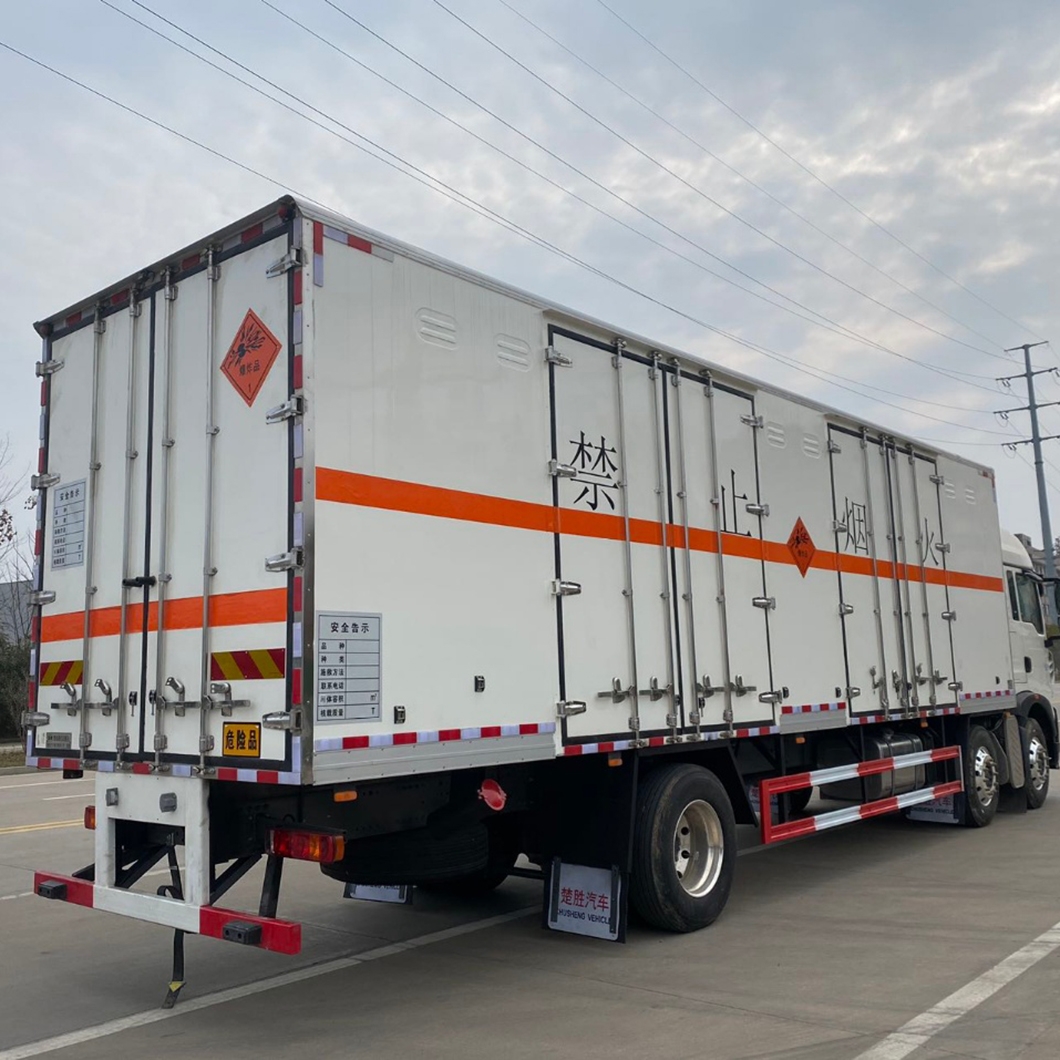

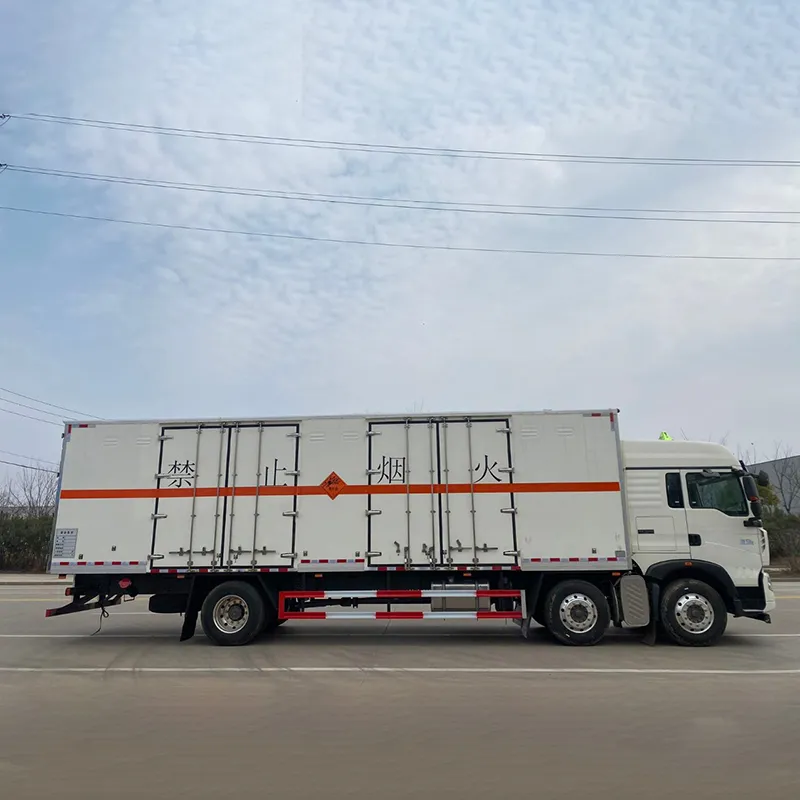

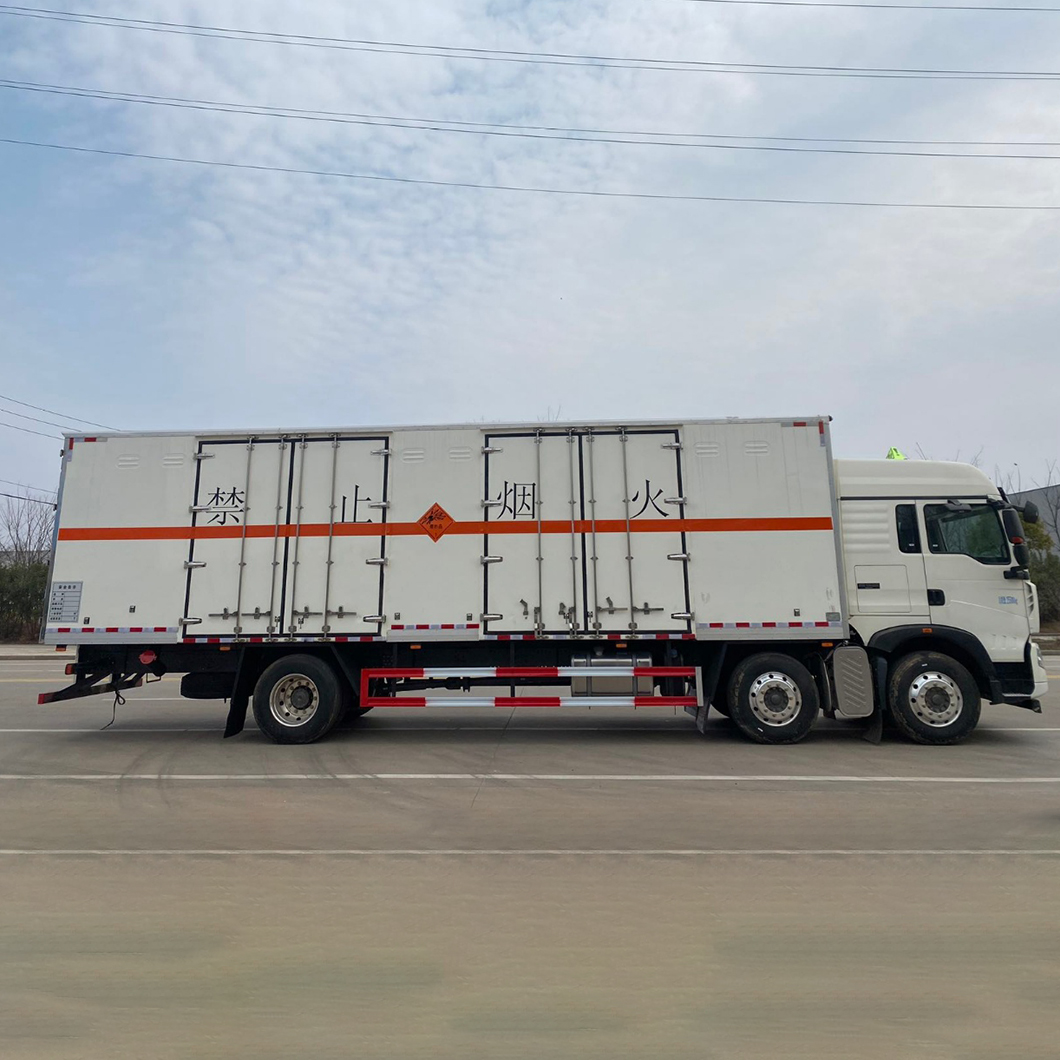

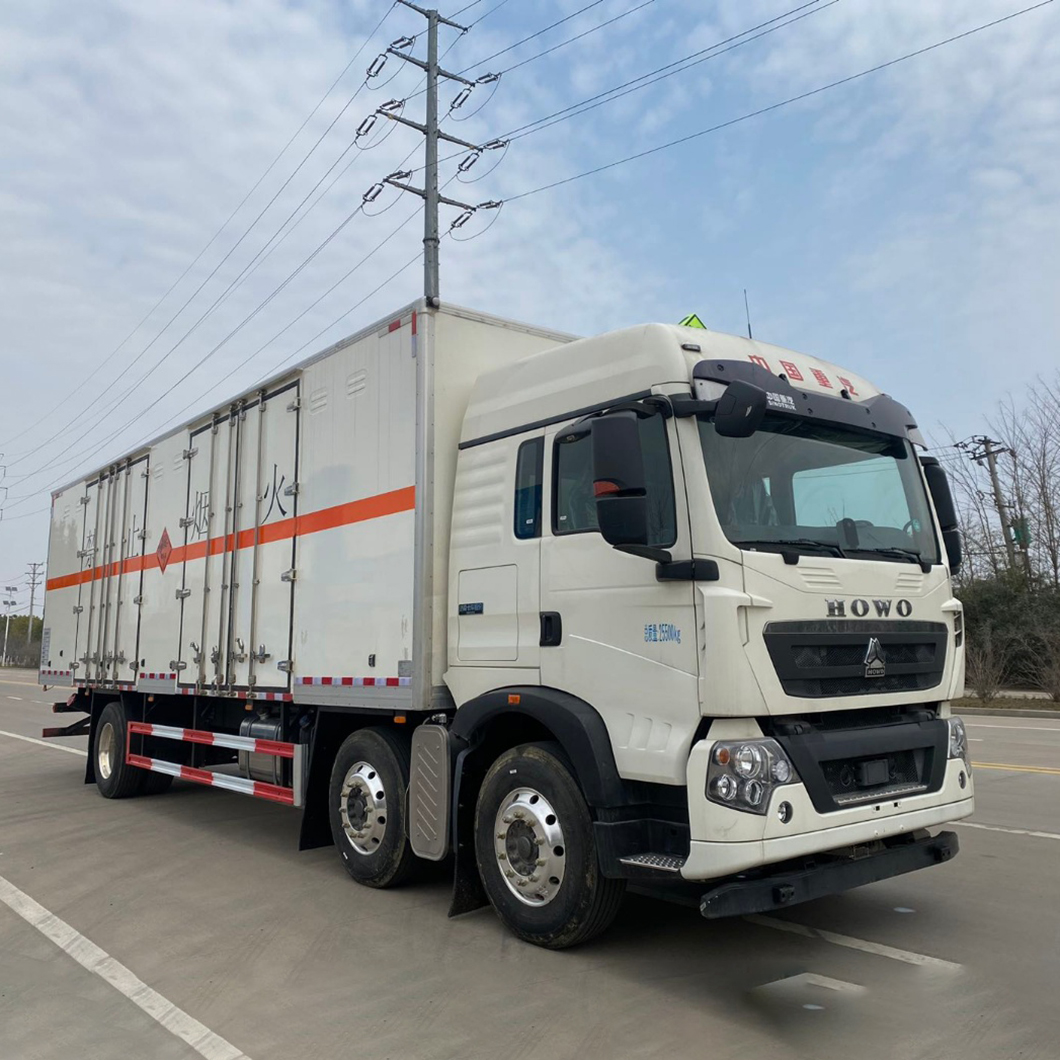

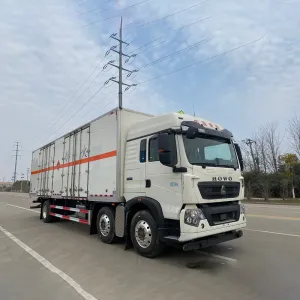

HOWO TX Front 4×4 Explosive Materials Transport Truck

(Model: CSC5267XQYZ6)

1. Product OveRView

The HOWO TX Front 4×4 Explosive Materials Transport Truck is engineered for safe, reliable, and efficient transportation of explosives and other hazardous materials. Designed with advanced chassis systems, reinforced cargo boxes, and state-of-the-art safety features, this explosive transport vehicle meets strict regulatory, environmental, and operational standards, ensuring high safety and durability in demanding conditions.

Ideal for military logistics, mining, chemical industries, and specialized hazardous materials transport, this truck guarantees secure handling, stable performance, and operational efficiency.

2. Model & Specifications

3. Chassis Configuration

• Cabin: HOWO TX-V cab, options for high roof or flat roof. Equipped with main airbag seat + auxiliary simple seat.

• Engine: MAN 350 HP diesel engine (MC07.35-60).

• Transmission: HW95508STC gearbox.

• Axles & Suspension: VPD75D front axle (disc), MCY11BES single rear axle (disc), speed ratio 4.63, front air suspension, dual rear suspension (air).

• Frame: Double-layer chassis (8+4/280).

• Safety Systems: AEBS (EBS + ESC), LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System) with radar, tire blowout emergency system.

• Wheels & Tires: Aluminum alloy wheels (domestic), 295/80R22.5 tires, optional tire pressure monitoring.

• Fuel & PTO: 300L fuel tank, rotary PTO, electronic power switch.

• Additional Features: Front-mounted exhaust, CHINA NATIONAL HEAVY DUTY TRUCK intelligent D-version, domestic steering mechanism.

4. Cargo Box Configuration

• Construction: Manufactured strictly according to official announcement dimensions. Outer panel: 1mm cold-rolled steel with louver vents. Interior: conductive aluminum flat panels with ventilation holes.

• Structure: Rectangular frame structure filled with moisture-proof, flame-retardant plastic board, composite rivet-laminated construction.

• Reinforcements: Aluminum edge and corner trims; floor lined with anti-static rubber; front 50cm lined with anti-static rubber.

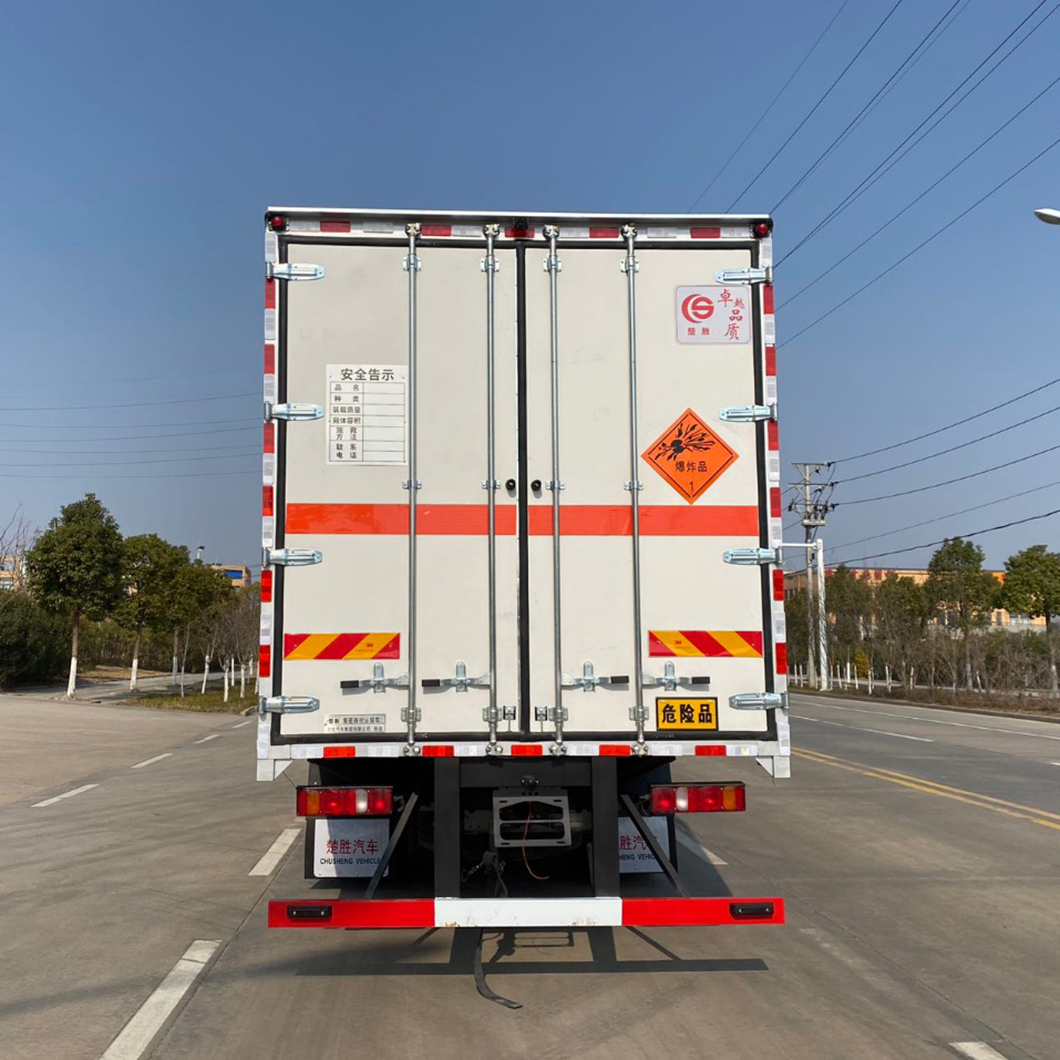

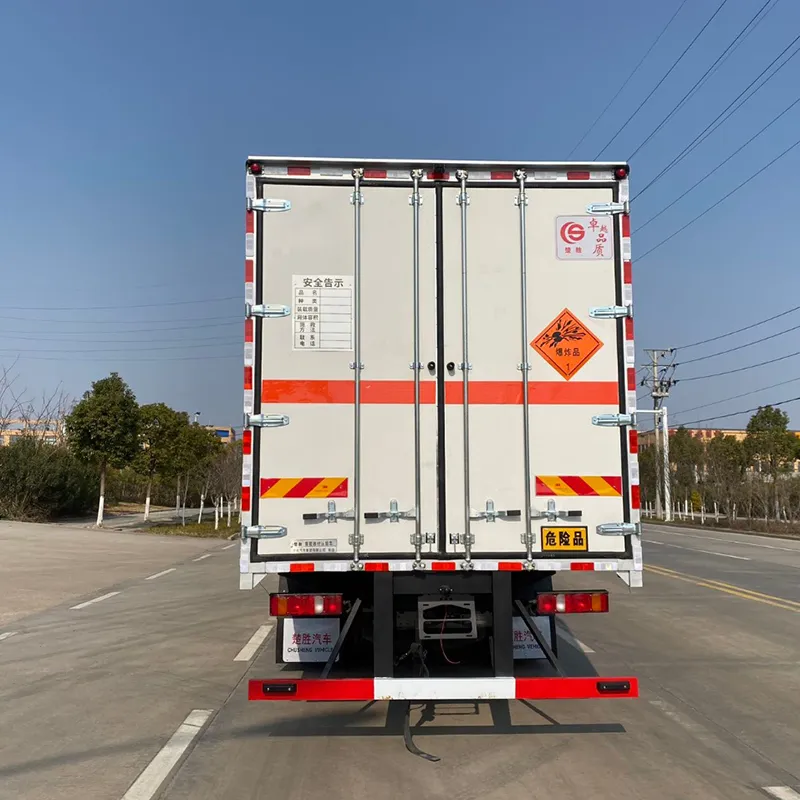

• Access & Security: Rear double doors; side-mounted tie-down rings; smoke detectors and anti-theft sensors installed.

• Safety Markings: Orange reflective tape around the box, diamond-shaped warning signs, danger labels, clearance lights (front white, rear red), grounding straps, and equipotential bonding.

• Load Safety: Cargo restraints and secure mounting for explosive materials, ensuring safe transport in all driving conditions.

5. Safety & Compliance Features

• Explosion-resistant cargo box design with ventilated panels and flame-retardant interior lining.

• Advanced monitoring systems: Smoke and anti-theft alarms.

• Reflective and warning markings ensure visibility during day and night operations.

• Equipped with AEBS, FCWS, and LDWS to prevent collisions and lane departure accidents.

• Reinforced double-layer chassis and air suspension provide high stability even on uneven terrain.

6. Keywords Integration

• hazardous materials transport truck – Highlighted in product overview and chassis configuration.

• dangerous goods box truck – Integrated in cargo box specifications and safety sections.

• explosive transport vehicle – Mentioned in safety compliance, load handling, and operational efficiency sections.

7. FAQ Section

Q1: What types of hazardous materials can this truck transport?

A: This truck is specifically designed for explosives and other hazardous materials, providing secure transport with reinforced cargo boxes and advanced safety systems.

Q2: What is the payload capacity?

A: The rated payload ranges between 9,930 kg to 9,995 kg, suitable for transporting medium to large quantities of explosive materials.

Q3: How many operators can drive the vehicle?

A: The vehicle accommodates 2 to 3 persons, depending on configuration.

Q4: Are there safety monitoring systems included?

A: Yes, it features smoke detectors, anti-theft sensors, reflective marking, AEBS, FCWS, LDWS, and anti-static protection.

Q5: What are the tire and wheel specifications?

A: 295/80R22.5 aluminum alloy wheels with optional tire pressure monitoring and tire blowout emergency system.

Q6: Can the cabin be customized?

A: Yes, customers can choose high-roof or flat-roof TX-V cab, main airbag seat plus auxiliary seat, and other optional safety and comfort features.

Q7: What is the gross vehicle weight and size?
