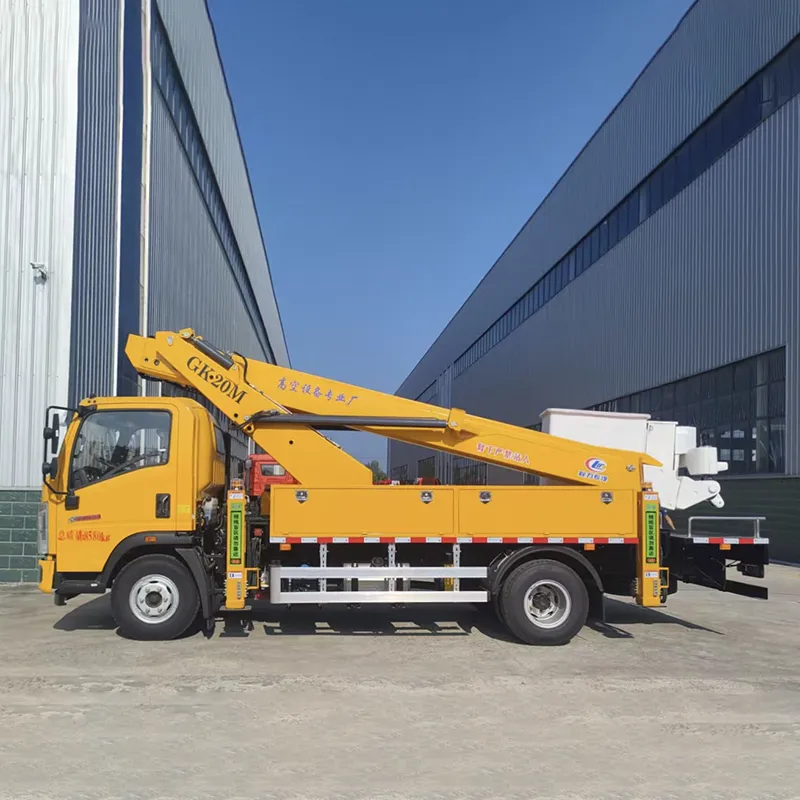

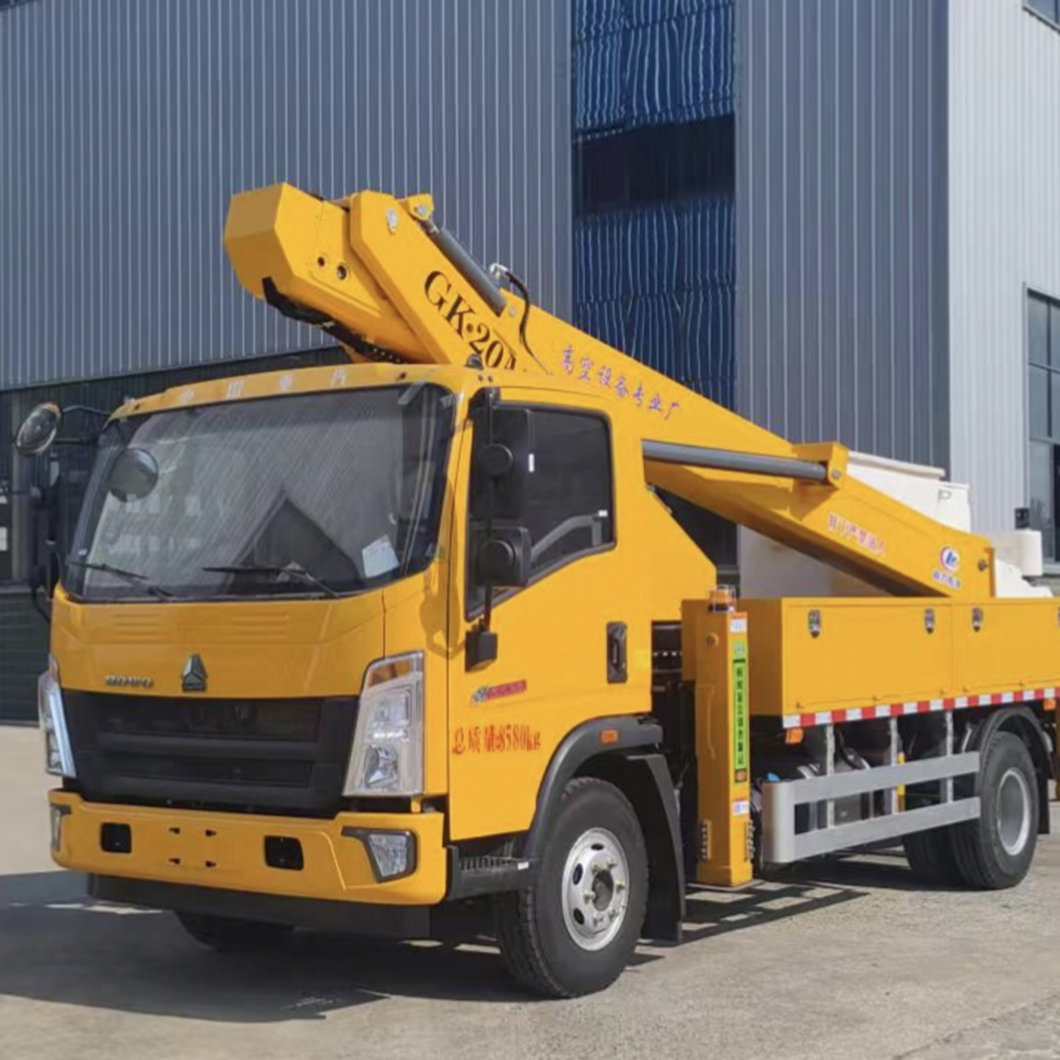

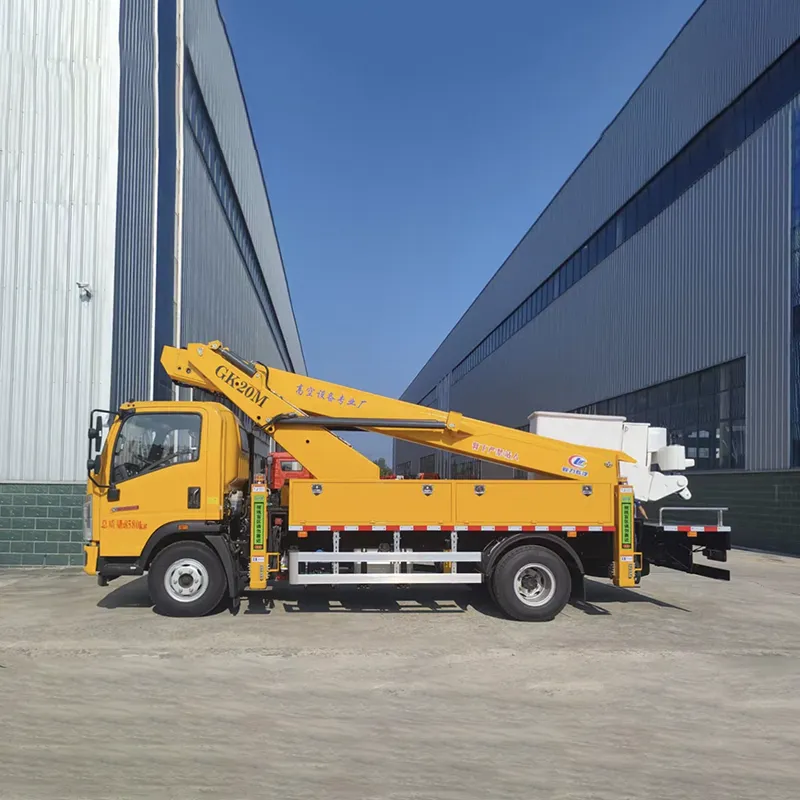

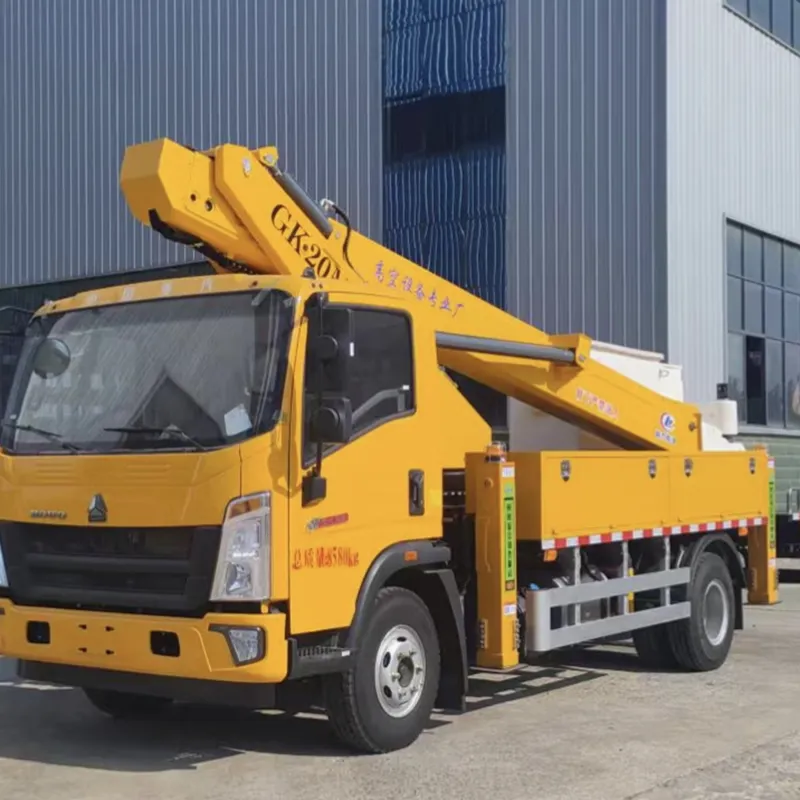

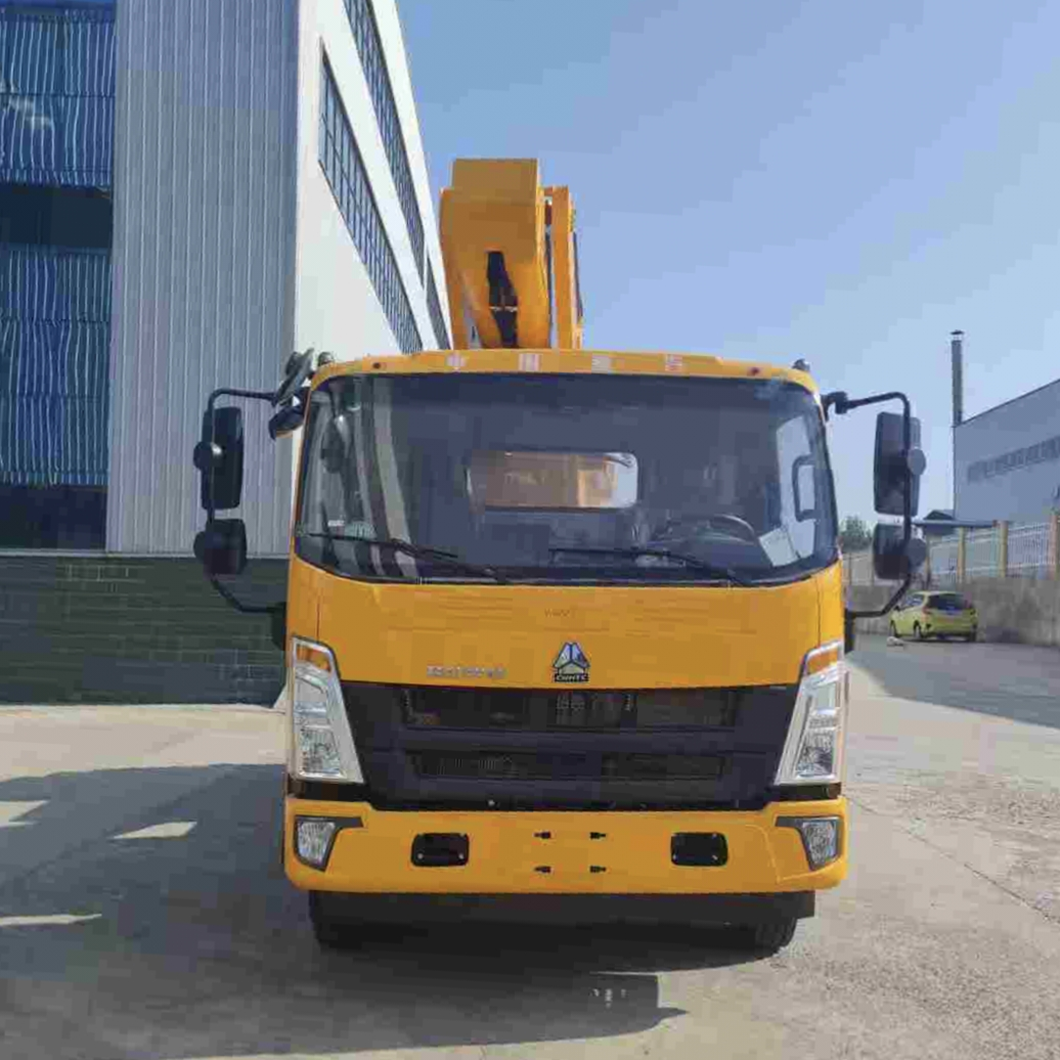

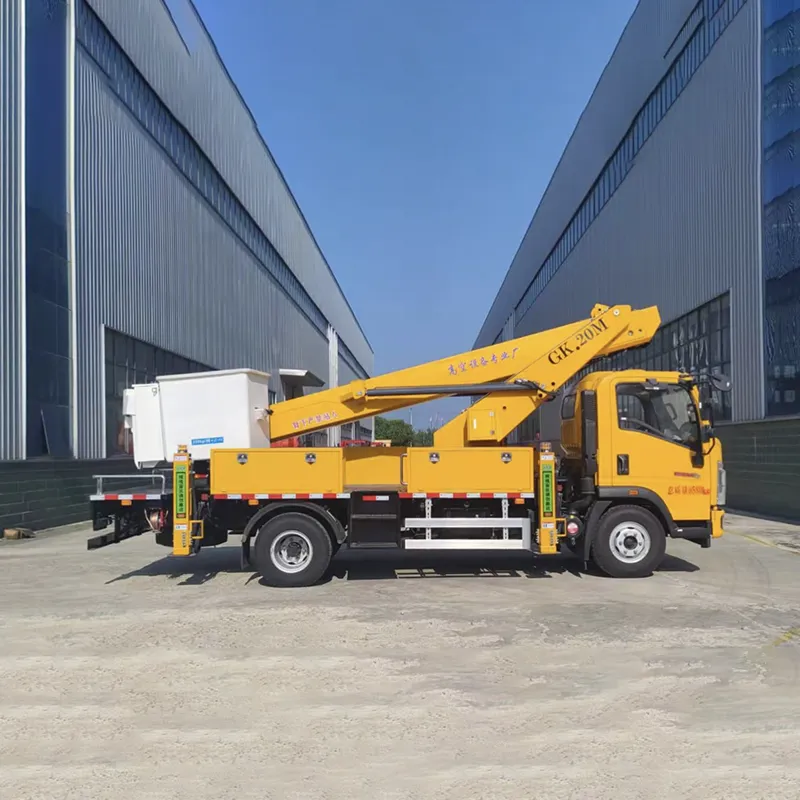

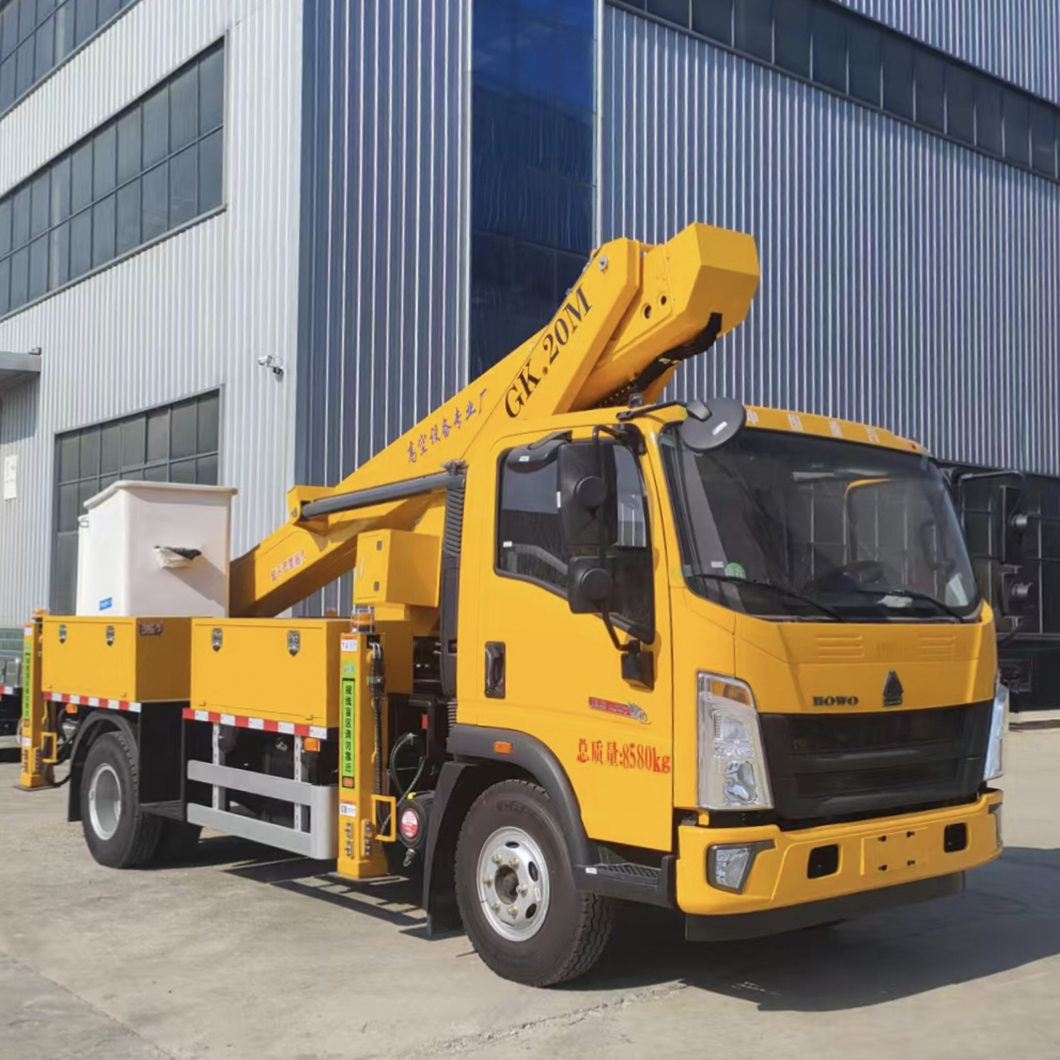

CLW5090JGKADT: 45kV Electric Insulated Aerial Lift for Live Line Work

The CLW5090JGKADT Electric Insulated Aerial Lift represents the highest standard of safety and performance in utility and maintenance applications. This advanced Insulated Boom Truck features comprehensive 45kV insulation protection, 15-meter working height, and 220kg platform capacity. Built on a robust Sinotruk ZZ1117G3815F112 chassis with Weichai WP3NQ160E61 Euro VI engine, this Insulated aerial work platform combines exceptional insulation performance with advanced operational capabilities. With automatic leveling, 360° continuous rotation, and multiple safety systems, this aerial lift ensures maximum safety and efficiency for electrical maintenance, utility repairs, and construction applications.

Technical Specifications

Vehicle & Chassis Parameters

Platform & Performance Specifications

Operational Parameters

Key Features & Advantages

Advanced Insulation System
This Electric Insulated Aerial Lift features a comprehensive insulation system with 2.0 meters of main insulation and 0.4 meters of gap insulation, providing full 45kV protection. The fiberglass arms are manufactured using wet winding technology for superior strength and insulation performance.

• Safety Advantage: Enables safe live line working up to 45kV, eliminating the need for de-energization and significantly reducing downtime while ensuring operator safety.

Intelligent Control Systems
The Insulated Boom Truck features 3D multi-function joystick control that manages boom elevation/descent, extension/retraction, and turntable rotation. The full hydraulic proportional valve system allows for smooth, precise movements with infinite speed control.

• Operational Advantage: Provides intuitive control and precise positioning capabilities, enabling operators to easily navigate complex work environments and access difficult-to-reach areas.

Comprehensive Safety Systems
Multiple safety systems include automatic interlock protection, leg pressure detection, emergency descent system, and automatic leveling. The platform features overload protection, tilt sensors, and continuous monitoring of all critical parameters.

• Risk Management: Redundant safety systems ensure continuous protection, with automatic inteRVentions and emergency backup systems that maintain safety even during system failures.

Enhanced Mobility & Accessibility
The mixed boom design (folding + telescopic) provides excellent obstacle-crossing capability and rapid positioning. The compact dimensions and excellent maneuverability allow access to confined spaces and urban environments.

• Performance Advantage: Combines high reach capability with excellent mobility, enabling efficient operation in various working conditions and environments.

Application Scenarios

Live Line Electrical Work
Perfect for 45kV live line maintenance, power line repair, and utility pole work where uninterrupted service is critical. The full insulation protection ensures safe operation on energized equipment.

Utility Maintenance
Ideal for telecommunications maintenance, street light repair, and signal system work. The insulated platform provides protection against accidental contact with energized equipment.

Municipal Services
Excellent for tree trimming, urban maintenance, and public works applications. The high capacity platform allows for multiple workers and equipment.

Construction & Installation
Suitable for building maintenance, installation work, and construction applications where electrical hazards may be present.

Emergency Services
Useful for fire department operations, rescue work, and emergency repairs in electrically hazardous environments.

5. Safety & Certification Features

Automatic Safety Systems

• Leg pressure detection and alarm system

• Upper/lower automatic interlock

• Automatic vehicle leveling system

• Cylinder anti-retraction devices

• Emergency electric hydraulic pump

• Instant emergency stop system

Insulation Protection

• 45kV rated insulation system

• 2.0m main insulation length

• 0.4m gap insulation protection

• Fiberglass wet winding technology

• Regular dielectric testing capability

• Comprehensive insulation monitoring

Operational Safety

• Horizontal status detection

• Engine start/stop from platform

• Hydraulic tool interfaces

• Travel-PTO interlock system

• Integrated safety harness points

• Night operation lighting

•


 Frequently Asked Questions (FAQ)

Q1: What is the significance of the 45kV insulation rating?
A: The 45kV rating indicates that this Insulated Aerial Work Platform provides protection for live line working on equipment energized up to 45,000 volts. This allows utilities to perform maintenance without de-energizing equipment, significantly reducing outage times and improving operational efficiency.

Q2: How does the automatic leveling system work?
A: The system uses sensors to detect vehicle inclination and automatically adjusts the outriggers to achieve perfect leveling. Once the horizontal outriggers are fully extended, switching to auto-leveling mode allows the system to automatically adjust the vertical legs for optimal stability.

Q3: What maintenance is required for the insulation system?
A: Regular insulation testing and visual inspection are required according to manufacturer guidelines and industry standards. This includes periodic dielectric testing, surface cleaning, and damage inspection. Complete maintenance records must be maintained to ensure ongoing insulation integrity.

Q4: Can the platform be used in rainy conditions?
A: The platform includes protective covers that help maintain insulation properties in damp conditions. However, specific procedures and limitations for wet weather operation should be followed according to manufacturer guidelines and local safety regulations.

Q5: What is the maximum wind speed for safe operation?
A: Generally, operation should be avoided when wind speeds exceed 12.5 m/s (45 km/h). However, always refer to the manufacturer's specific recommendations and local safety regulations for exact wind speed limitations.

Q6: How often should the insulation be tested?
A: Initial testing should be conducted before first use, with regular testing every 6 months for frequent use or according to manufacturer recommendations and local safety regulations. Additional testing is required after any impact or suspected damage.
