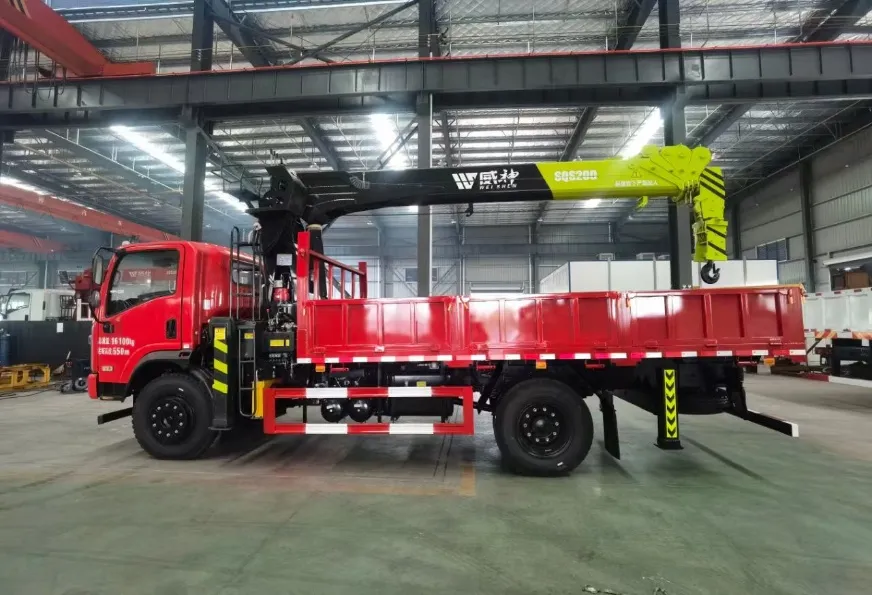

Truck mounted crane Transport Vehicle
A Truck-mounted crane transport vehicle is a type of vehicle that is equipped with a crane mounted on the truck chassis. This type of vehicle is commonly used for transporting and lifting heavy loads in various industries, such as construction, infrastructure development, and logistics.

The truck-mounted crane provides a convenient and efficient way to transport heavy materials and equipment to different locations. The crane can be used to lift and load/unload items onto the truck bed or to lift and move items at the job site. This eliminates the need for additional equipment or labor to load and unload heavy items, saving time and resources.

Truck-mounted crane transport vehicles come in a variety of sizes and configurations, depending on the payload capacity and lifting requirements. They are designed to be versatile and mobile, allowing them to access remote or difficult-to-reach locations where traditional cranes may not be able to operate. Overall, they are a valuable asset for businesses that require heavy lifting and transportation capabilities.

Basic Vehicle Parameters

- Drive Type: 4×2

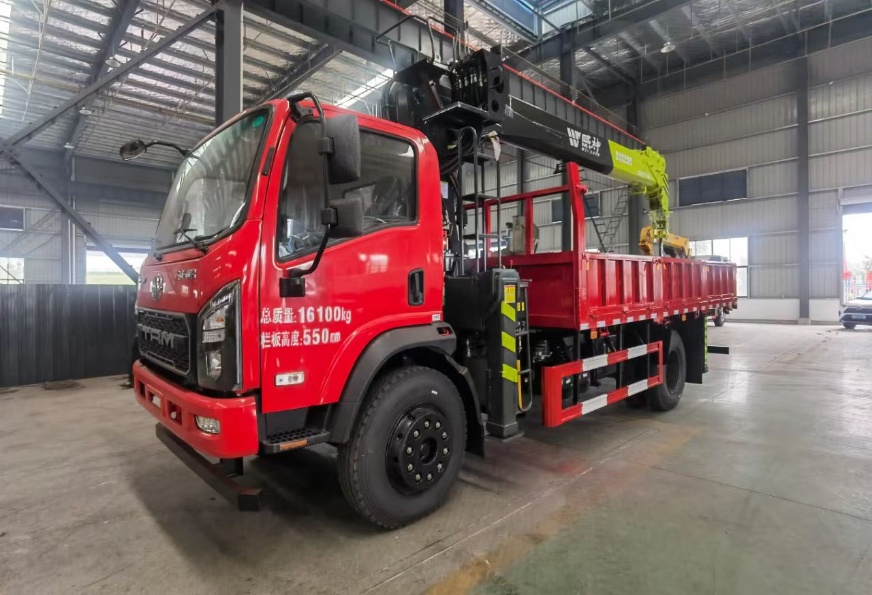

- Total Weight (kg): 16,100
- Curb Weight (kg): 11,000

The 4×2 drive type ensures efficient power distribution, making the vehicle suitable for urban and off-road applications. With a total weight of 16,100 kg, this truck-mounted crane is built to handle substantial loads while maintaining stability.

Vehicle Appearance Parameters

- Length (mm): 8,245
- Width (mm): 2,450
- Height (mm): 3,850
- Wheelbase (mm): 4,500

The compact yet sturdy dimensions allow for maneuverability in tight spaces while ensuring sufficient workspace for crane operations. The wheelbase of 4,500 mm contributes to stability during lifting tasks.

Performance Parameters

- Maximum Speed (km/h): 88
- Maximum Climbing Grade (°): 30%

With a top speed of 88 km/h, this vehicle is efficient for long-distance transport. The 30% climbing grade capability ensures it can operate on steep inclines, making it suitable for construction sites and rough terrains.

Chassis Configuration Parameters

Engine
- Emission Standards: Euro II, III, IV, V, VI
- Displacement (L): 3.6-4.2L
- Rated Power (kW): 132-147

The engine complies with multiple Euro emission standards, ensuring environmental adaptability. The 3.6-4.2L displacement and 132-147 kW power output provide strong performance for heavy lifting and transport.

Cab Type
- Model: T3 (1995) (1.995m Wide)
- Standard Configuration:
 - Bluetooth radio
 - Laminated glass
 - Electric windows
 - Central locking
 - Wide bumper
 - Roof storage box
 - LED daytime running lights

The single-row flat-roof cab offers a comfortable and ergonomic workspace. The inclusion of Bluetooth radio, electric windows, and LED lighting enhances driver convenience and safety.

Gearbox
- Type: Manual, 8 Gears
- Front Axle Type: Drum Brake
- Loadable Weight (Kg): 3,600
- Rear Axle Gearbox Type: Drum Brake
- Loadable Weight (Kg): 10,000
- Speed Ratio: 5.571

The 8-speed manual gearbox ensures precise control, while the drum brake system with ABS anti-lock braking enhances safety. The front and rear axle load capacities (3,600 kg and 10,000 kg, respectively) ensure balanced weight distribution.

Frame & Suspension
- Frame Section Size (mm): 280×65×(8+5) Full Three-Layer Outsourcing
- Leaf Spring Configuration: 9 Front Springs, 11+8 Rear Springs

The reinforced frame and multi-layer leaf springs provide durability and shock absorption, crucial for heavy-duty operations.

Tire & Steering System
- Tire Type: Steel Wire Tire
- Quantity: 6+1
- Model: 9.00R20-16
- Steering System Type: Hydraulic Power Steering

The steel wire tires offer excellent traction and load-bearing capacity. The hydraulic power steering ensures smooth handling even under heavy loads.

Braking System
- SeRVice Brake Type: Dual Circuit Air Brake
- Parking Brake Type: Spring Brake (Manual Operation)
- ABS Anti-Lock Braking System: Yes

The dual-circuit air brake system provides reliable stopping power, while the spring brake parking system ensures secure immobilization when stationary.

Electrical System
- System Voltage: 24V
- Battery: 100Ah Dual Battery

The 24V electrical system supports high-power operations, and the dual battery setup ensures uninterrupted performance.

Upper Body Configuration Parameters

Crane Specifications
- Maximum Lifting Mass (Kg): 7,000
- Maximum Lifting Height (M): 12
- Rotation Angle (°): 360
- Maximum Working Pressure (MPa): 26
- Crane Weight (Kg): 3,500

The 7,000 kg lifting capacity and 12-meter height make this crane ideal for construction, logistics, and industrial applications. The 360-degree rotation allows for flexible positioning.

Outrigger System
- Leg Type: H
- Leg Span (M): 2.28-5.9

The H-type outriggers provide stability, with an adjustable span for different ground conditions.

Cargo Box Specifications
- Size (mm): 5,200×2,350×550
- Material: Q235 Steel
- Wall Thickness (mm): 2
- Bottom Thickness (mm): 4

The 5.2-meter cargo box is constructed from high-strength Q235 steel, ensuring durability. The 4mm thick base enhances load-bearing capacity.
