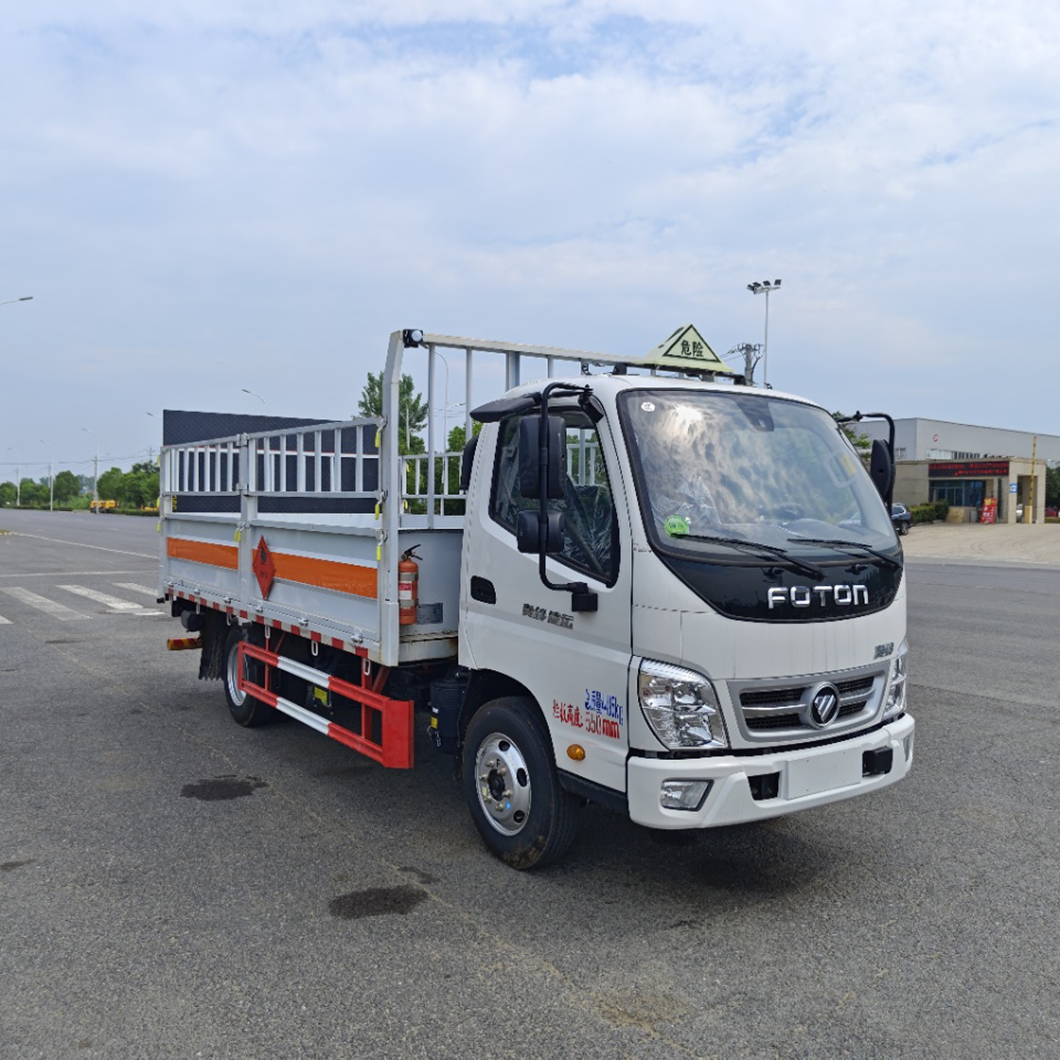

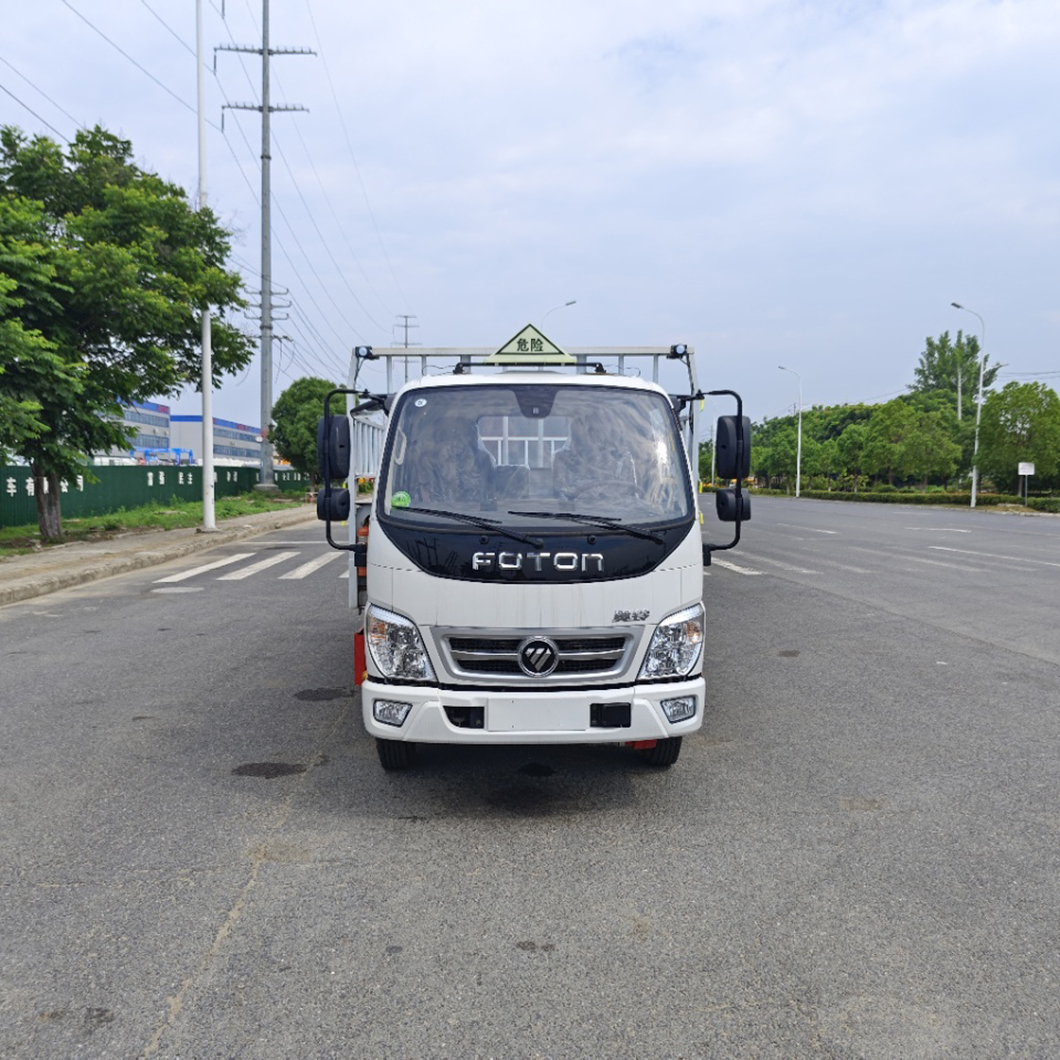

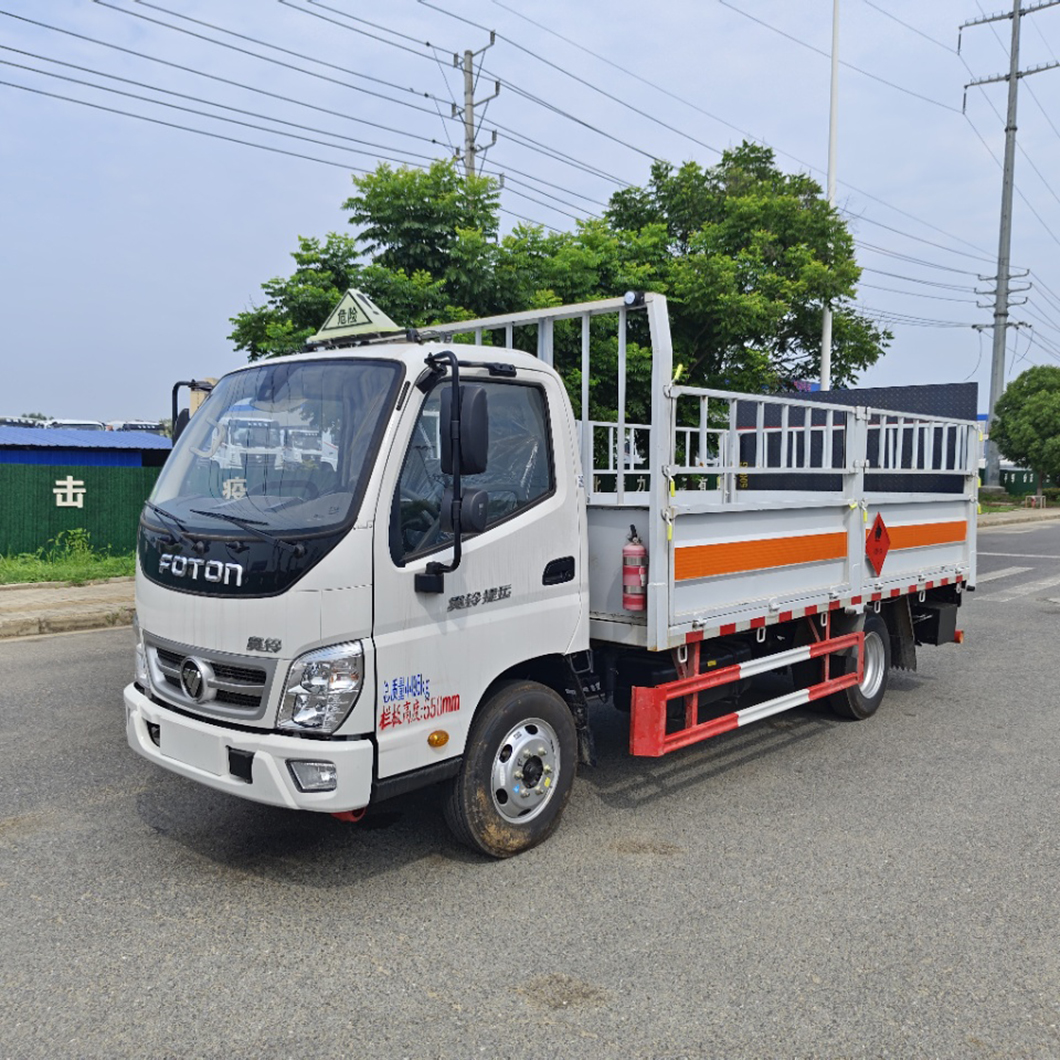

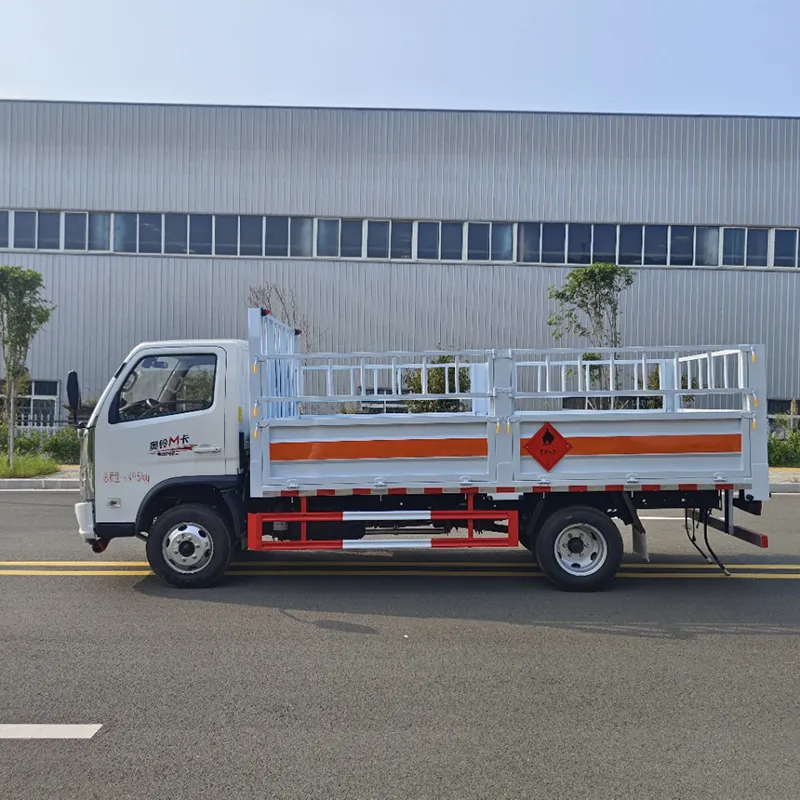

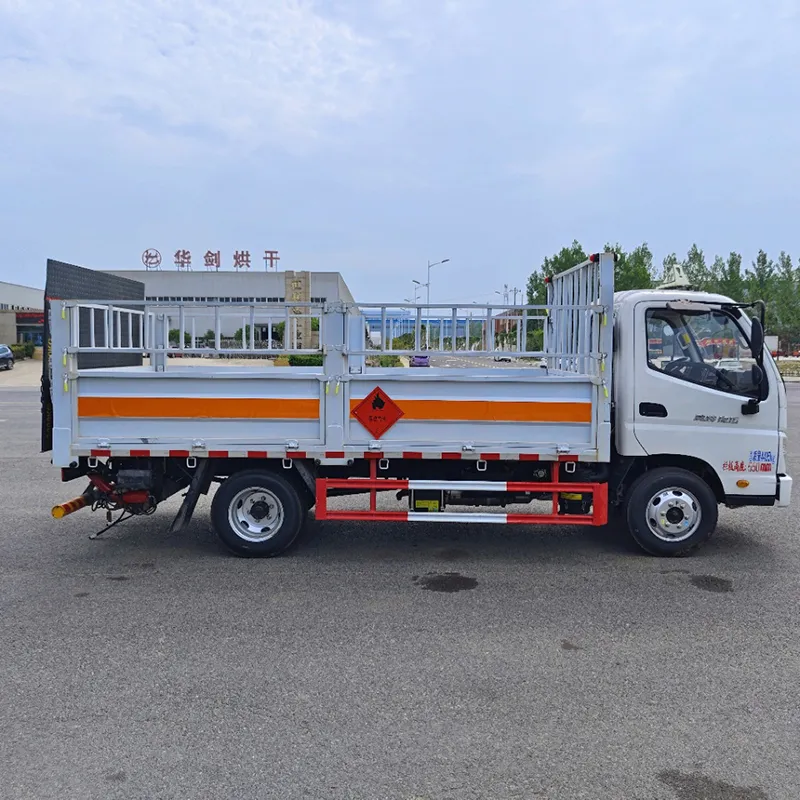

Foton Aoling Light Duty Truck with Flatbed / Removable Side Walls

1. Product OveRView

The Foton Aoling light-duty truck is a versatile vehicle designed for urban delivery, municipal services, and general cargo transport. Featuring robust chassis options, high-strength flatbed construction, and configurable removable sidewalls, this truck offers efficiency, safety, and operational flexibility.

Two main chassis options are available: the Jieyun chassis and the M-Cabin (M卡) chassis, both optimized for durability, stability, and easy handling. The truck is suitable for transporting goods, materials, and equipment in urban and semi-urban environments, providing reliable performance in tight spaces and frequent stop-and-go operations.

2. Model & Specifications

3. Chassis Configuration

Jieyun Chassis

• Engine: Q23-132E60 diesel, 132 HP

• Transmission: 5G32 manual gearbox

• Axle Ratio: 4.875, front disc / rear drum brakes

• Tires: Tubeless LL6.50R16 10MT

• Cabin Features: Air conditioning, central locking, electric windows, T-BOX wireless service controller, MP3 audio system, ABS, power steering, standard cloth seats

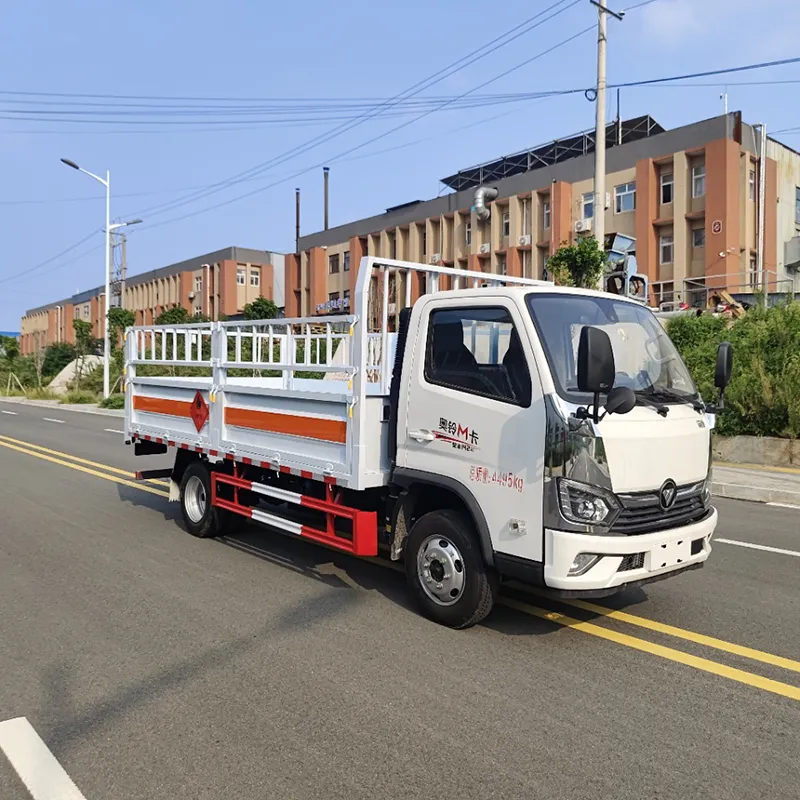

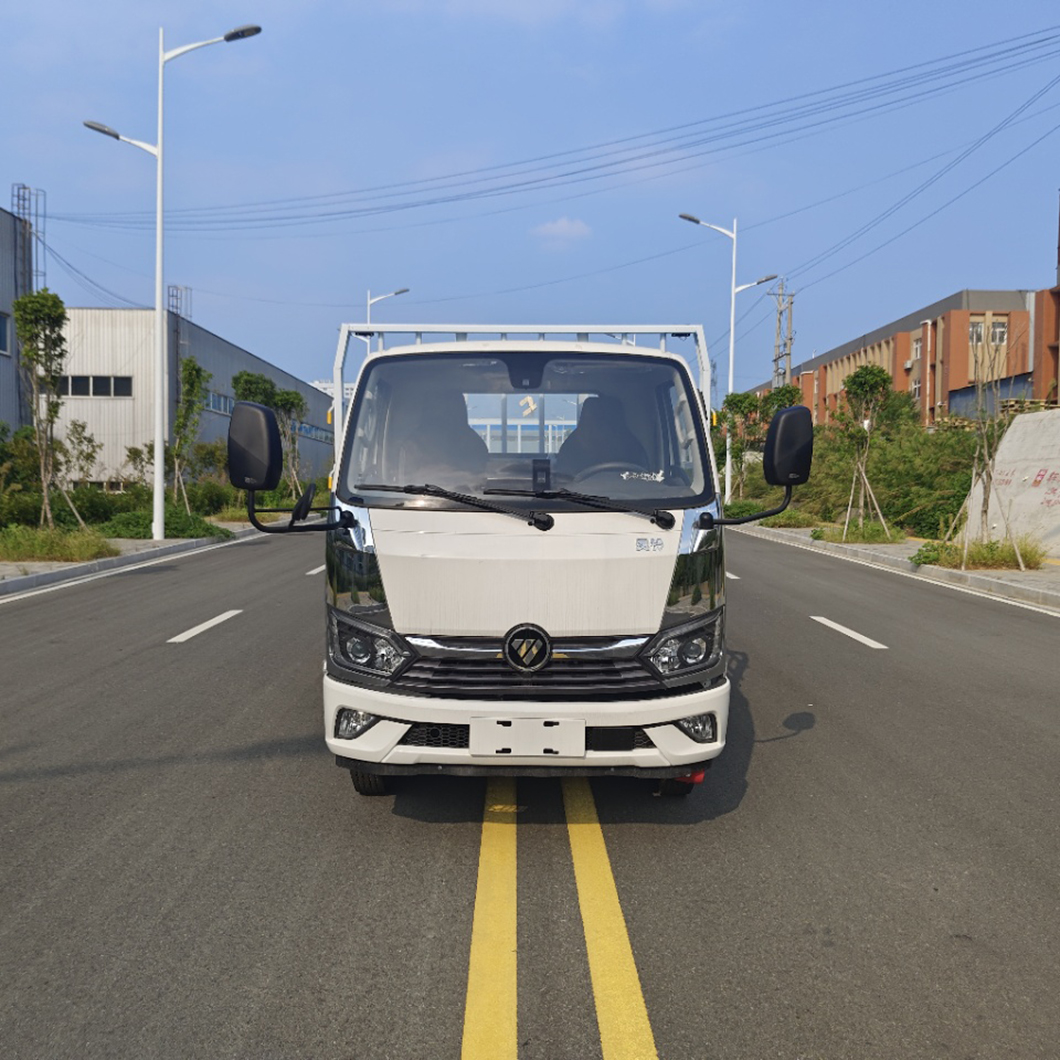

M-Cabin Chassis (M卡)

• Engine: Quanchai 140 HP diesel, optional 2800 mm wheelbase

• Transmission: WLY5G32 Wanliyang 5-speed manual gearbox

• Fuel Tank: 70 L plastic tank

• Axles & Suspension: 2.0 t front axle, drive axle ratio 4.875, 3-leaf front springs, 3+2-leaf rear springs

• Brakes: Pneumatic system, front disc / rear drum

• Cabin Features: Air conditioning, electric windows, central locking, remote locking, cruise control, dual warning systems, 12V battery

• Wheels: Steel rims

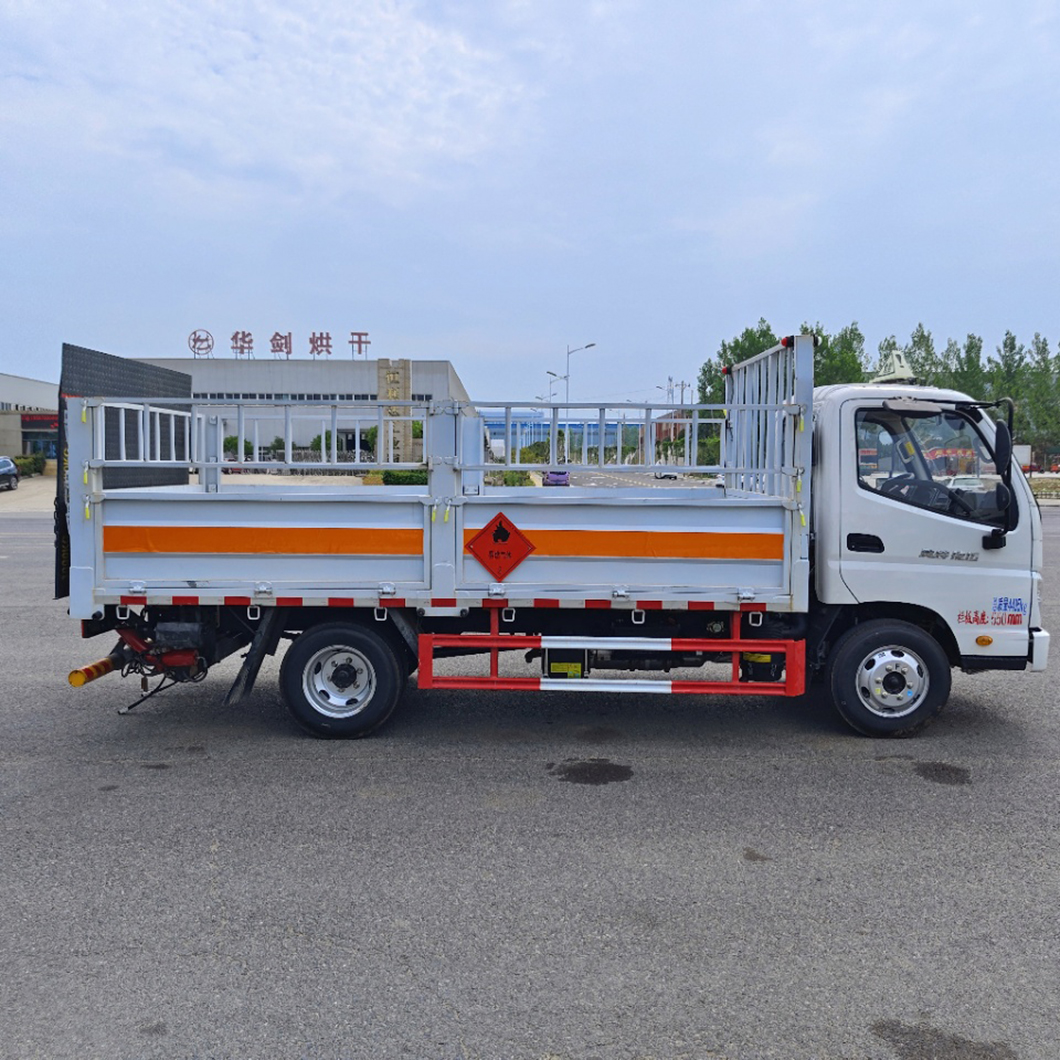

4. Flatbed & Body Configuration

• Frame: Round tube gantry structure with corrugated side panels

• Side Walls: Removable posts, configurable for various cargo heights

• Bed: 2mm high-strength steel floor, 550mm wall height

• Protective Rails: Detachable guardrails

• Manufacturing: Strictly according to announcement images, high-quality welding and assembly standards

• Accessories: Standard onboard tools included

5. Optional Features

• Choice of Foton Jieyun or Aoling M-Cabin driver cab

• Engine: Jieyun 132 HP, M-Cabin 140 HP

• Wheelbase (M-Cabin): Optional 2800 mm, allowing cargo box length from 3.4 m to 3.8 m

6. Key Features & Advantages

• High adaptability: Suitable for urban and semi-urban deliveries

• Robust chassis: Stable handling, safe braking, durable suspension

• Flexible cargo bed: Removable sidewalls, customizable length and height

• Advanced safety: ABS, dual warnings, remote cabin controls

• Operator comfort: Air conditioning, electric windows, power steering, ergonomic seats

• Easy maintenance: Standardized components, accessible service points

7. Keywords for SEO Integration

• light duty delivery truck

• urban cargo transport vehicle

• Flatbed Truck with removable side walls

8. FAQ Section

Q1: What chassis options are available?

A: Customers can choose between Jieyun chassis with 132 HP engine or M-Cabin chassis with 140 HP engine and optional 2800 mm wheelbase.

Q2: What is the rated payload?

A: The rated payload is 1,800 kg, suitable for light urban cargo transport.

Q3: What are the cargo box dimensions?

A: The cargo bed can vary from 3.4 m to 4.2 m in length, 1.8 m to 2.1 m in width, and 550 mm in height.

Q4: Can the side walls be removed?

A: Yes, the removable side walls and detachable posts provide flexibility for different cargo types.

Q5: How many operators can drive the vehicle?

A: The truck is designed for 2 persons.

Q6: What safety features are included?

A: The truck includes ABS, dual warning systems, central locking, power steering, and T-BOX wireless service monitoring.

Q7: Can the truck operate in all urban environments?

A: Yes, the compact dimensions, flexible chassis, and robust suspension make it suitable for tight urban spaces and frequent stop-and-go deliveries.
