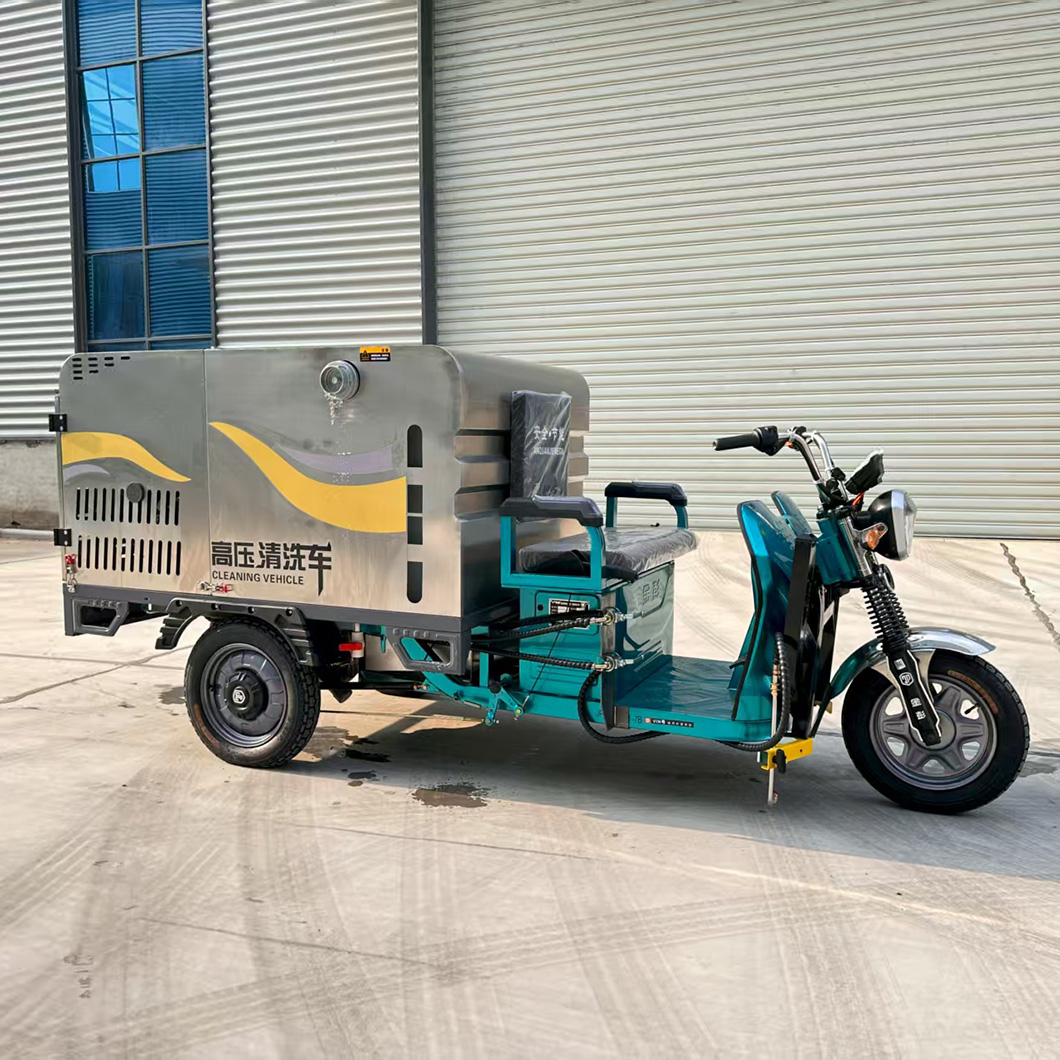

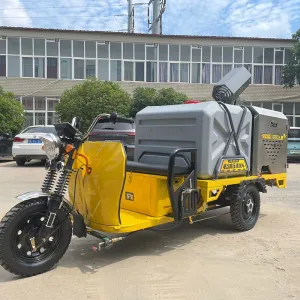

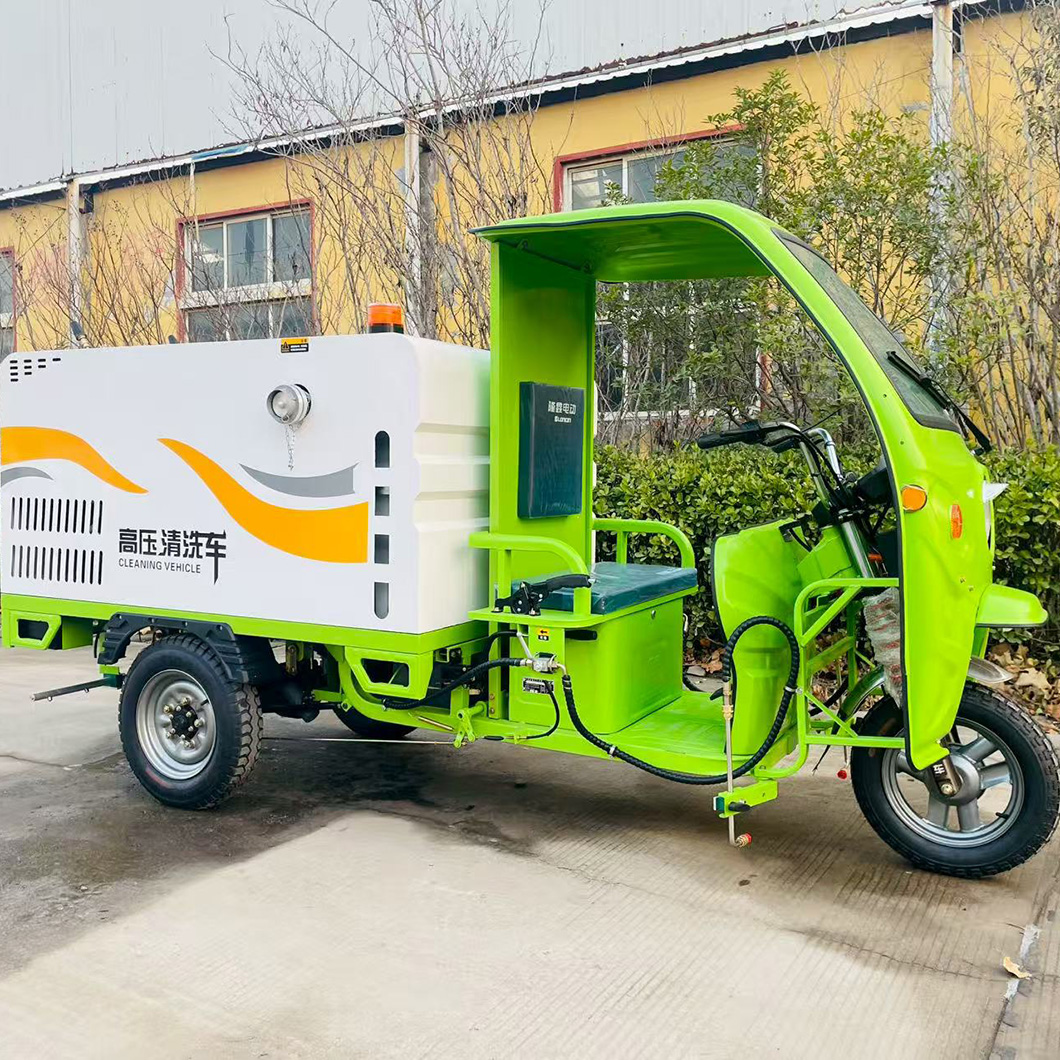

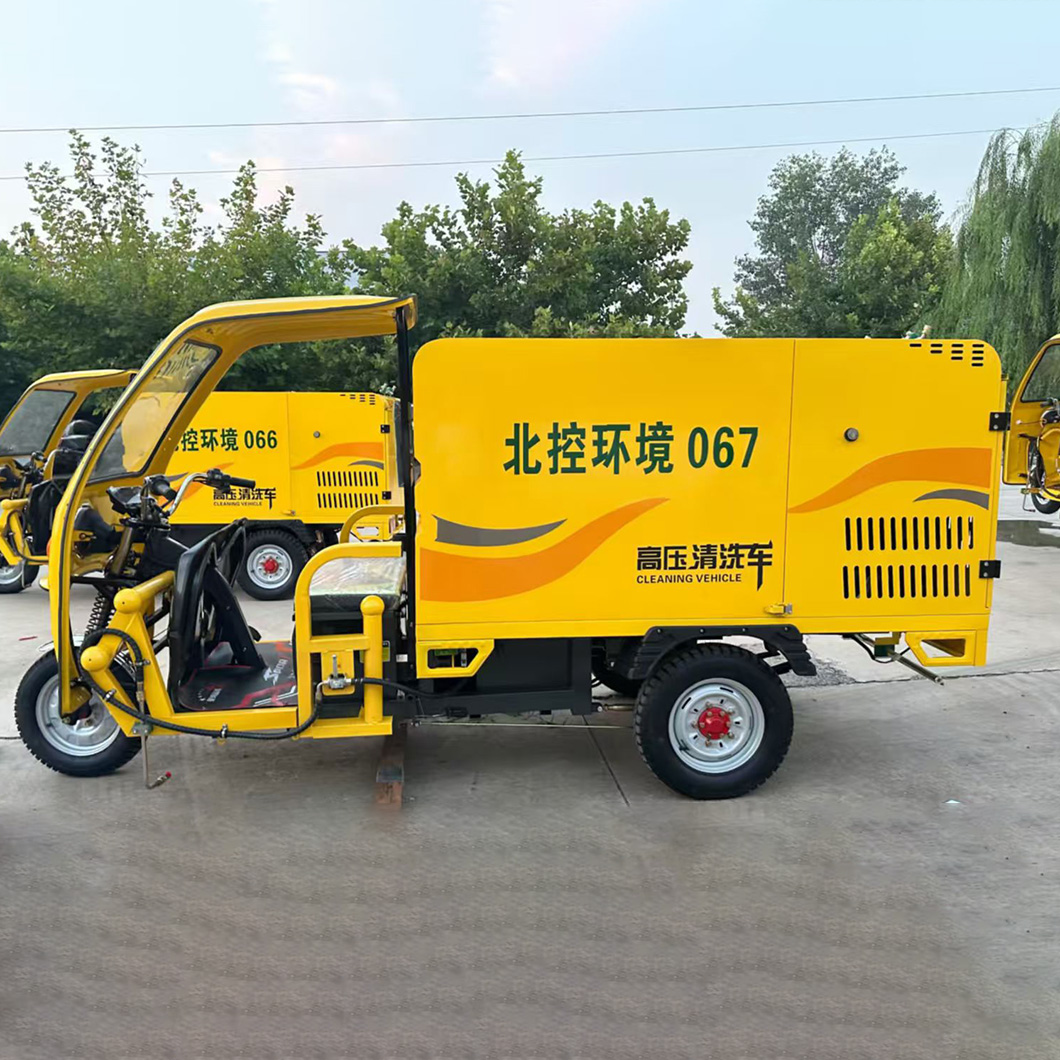

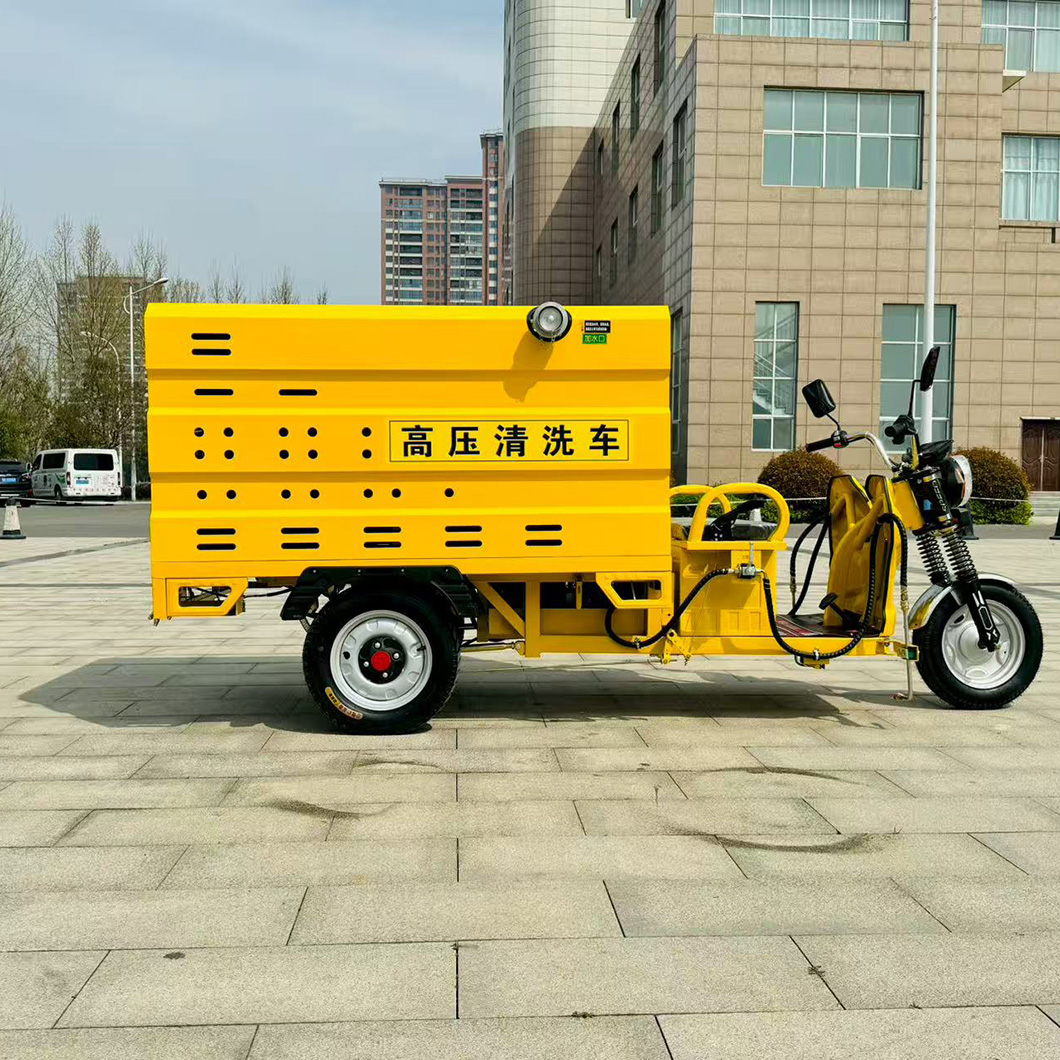

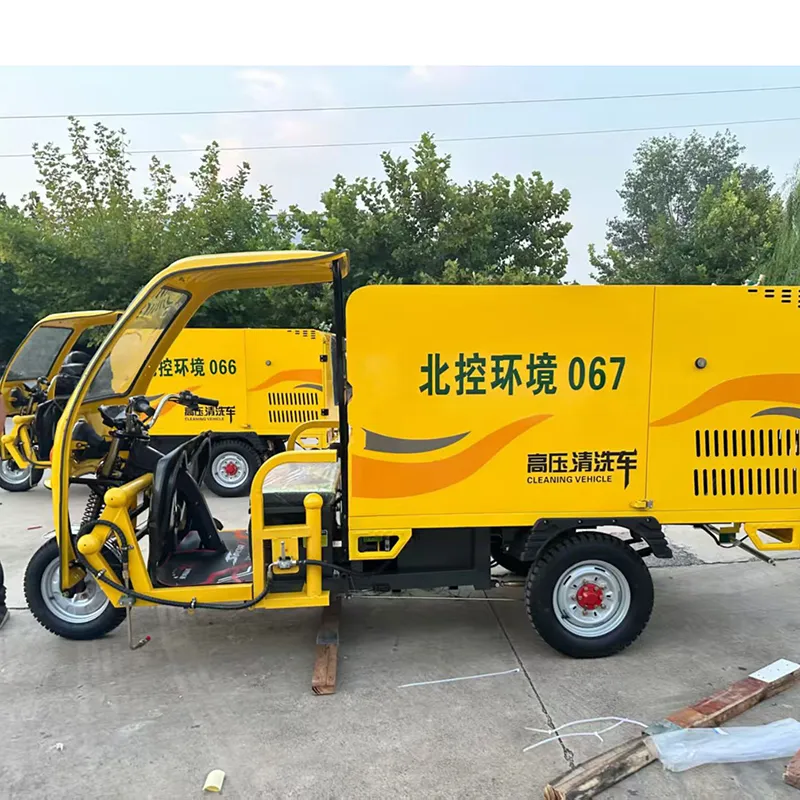

600L Electric Three-Wheel High-Pressure Cleaning Vehicle (4000W Motor)
Keywords: Cleaning Truck, High-Pressure Cleaning Vehicle, Street Washer Truck
The 600L Electric Three-Wheel High-Pressure Cleaning Vehicle is a compact, efficient, and environmentally friendly solution designed for urban cleaning and sanitation. Powered by a 4000W electric motor, this vehicle integrates cleaning, front flushing, and water spraying functions into one versatile platform, making it ideal for streets, walkways, and various public areas.
| No. | Component | Specification |
|---|---|---|
| 1 | Function | Cleaning + Front Flushing + Water Spraying (3-in-1) |
| 2 | Rear Axle | Integrated, reinforced and heavy-duty |
| 3 | Driving Motor Power | 1000 W |
| 4 | Battery | 60V 100Ah high-quality maintenance-free lead-acid battery; stable voltage, long service life |
| 5 | Climbing Ability | ≤15° |
| 6 | Rated Occupancy | 1 person |
| 7 | Maximum Speed | 25 km/h |
| 8 | Wheelbase | 2100 mm |
| 9 | Vehicle Weight | 450 kg |
| 10 | Color | Orange-Yellow |
| No. | Component | Specification |
|---|---|---|
| 1 | Frame & Body | High-quality carbon steel, automotive-grade electrophoretic coating, high-temperature baking paint; corrosion-resistant and long-lasting |
| 2 | Main Beam | 40×60 mm rectangular tube, 2 mm wall thickness |
| 3 | Rear Axle | Custom heavy-duty rear axle, high load capacity |
| 4 | Brake System | Front mechanical brake, parking brake included |
| 5 | Suspension | Front: reinforced dual-tube shock absorber; Rear: leaf spring non-independent suspension |
| 6 | Tire Specification | Front: 375-12, Rear: 400-12 |
| 7 | Signal Lights | Headlights, front & rear turn signals, brake lights, horn |
| 8 | Vehicle Dimensions | L: 3065 mm × W: 1100 mm × H: 1500 mm |
| 9 | Seat | High-density foam seat for comfort |
| No. | Component | Specification |
|---|---|---|
| 1 | Material | Galvanized iron sheet for side and rear doors |
| 2 | Tank Dimensions | L: 1655 mm × W: 1070 mm × H: 815 mm |
| 3 | Water Tank Material | Rotational molded plastic tank, one-piece mold; leak-proof, corrosion-resistant, anti-aging; includes inlet and drain ports |
| 4 | Tank Capacity | 600 L |
| No. | Component | Specification |
|---|---|---|
| 1 | Motor Power | 4000 W |
| 2 | Water Pump | Cleaning pump pressure: 150 Kg/cm², Flow rate: 13 L/min, Pressure adjustable |
| 3 | Hose Reel | 13-meter heavy-duty dual-arm automatic retractable hose; dual-layer hydraulic protection, durable and wear-resistant |
| 4 | Filter | 80-mesh water filter, easily accessible for cleaning |
| 5 | Spray Device | High-pressure cleaning gun with multiple spray modes (0°, 15°, 25°, 45°, rotating); front flushing and rear sprinkling functions |
Multi-Functional: Integrates high-pressure cleaning, water spraying, and front flushing.
Compact & Agile: Small size with 2100 mm wheelbase for easy maneuvering in narrow streets and alleys.
Powerful Cleaning: 4000W high-pressure pump and adjustable spray settings ensure efficient dirt removal.
Durable Construction: Reinforced carbon steel frame, high-quality coating, heavy-duty rear axle.
Convenient Operation: Single-person operation with ergonomic seat and simple control system.
Eco-Friendly: Fully electric, zero emissions, low noise for urban environments.
Ideal for a wide range of cleaning tasks, including:
Construction sites
Municipal streets and sidewalks
Schools, parks, hospitals, and office complexes
Parking lots and small urban alleys
Urban streets, station areas, pedestrian pathways, and guardrails
This Electric Three-Wheel High-Pressure Cleaning Vehicle is designed to be efficient, safe, and environmentally friendly, making it the perfect solution for cleaning operations in cities and urban areas.
Q1: What is the maximum speed of the vehicle?
A1: The maximum speed is 25 km/h, suitable for safe operation in urban areas.
Q2: How many people can operate the vehicle?
A2: The vehicle is designed for single-person operation.
Q3: What is the water tank capacity?
A3: The rotomolded tank holds 600 liters and is corrosion-resistant.
Q4: What is the climbing ability?
A4: The vehicle can climb slopes up to 15°.
Q5: What type of battery is used?
A5: It uses a 60V 100Ah maintenance-free lead-acid battery, providing stable voltage and long service life.
Q6: What cleaning functions are available?
A6: It features high-pressure cleaning, front flushing, and rear water spraying with adjustable spray modes.
Q7: Where can this vehicle be used?
A7: Ideal for municipal streets, construction sites, schools, parks, hospitals, and pedestrian walkways.
