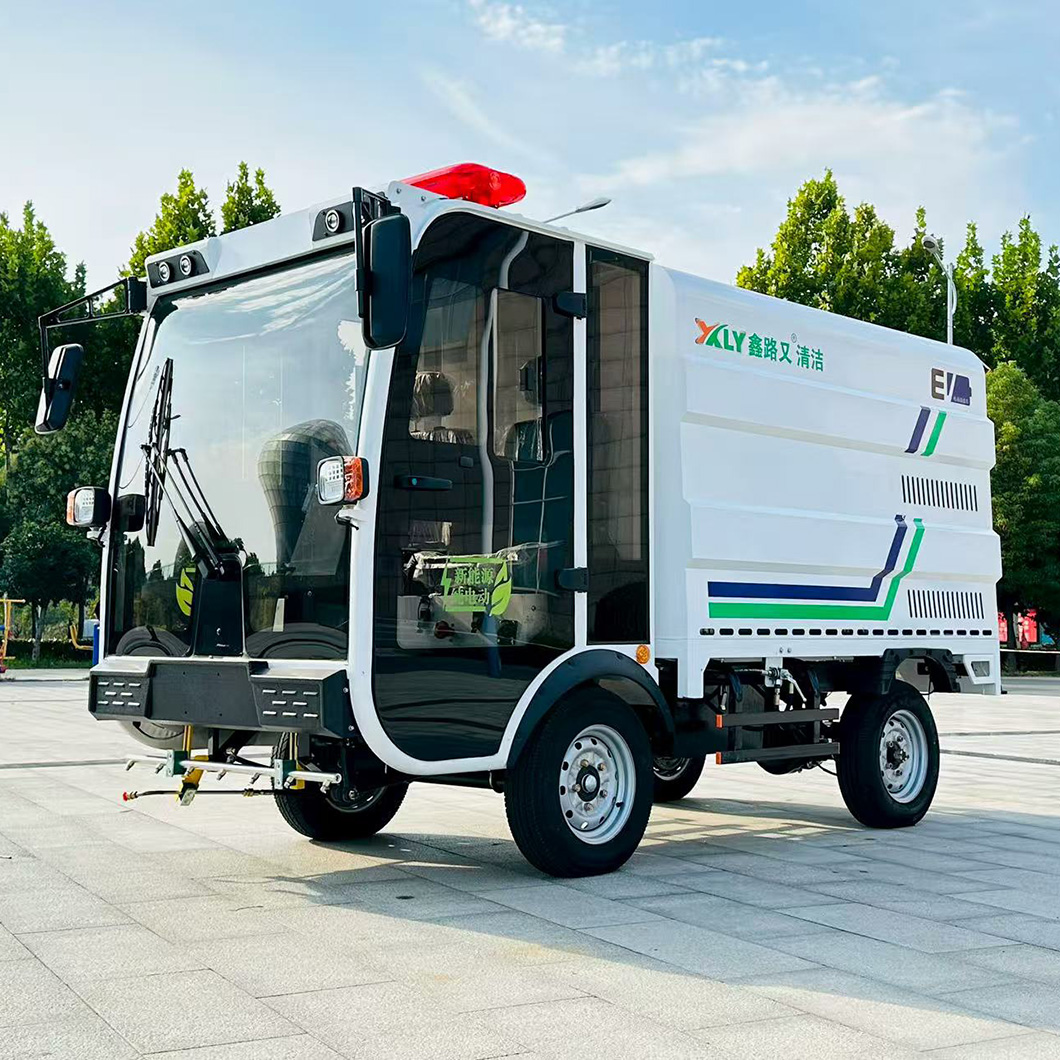

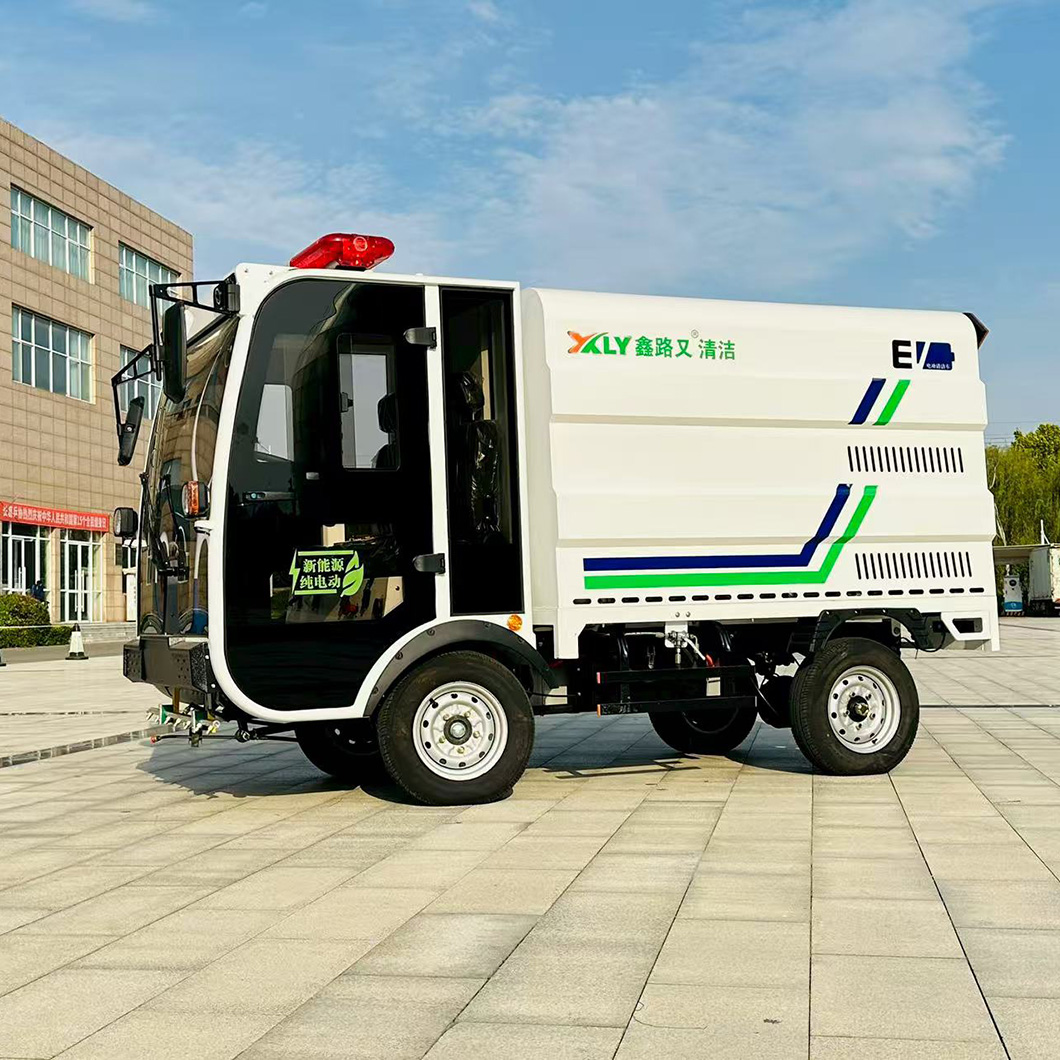

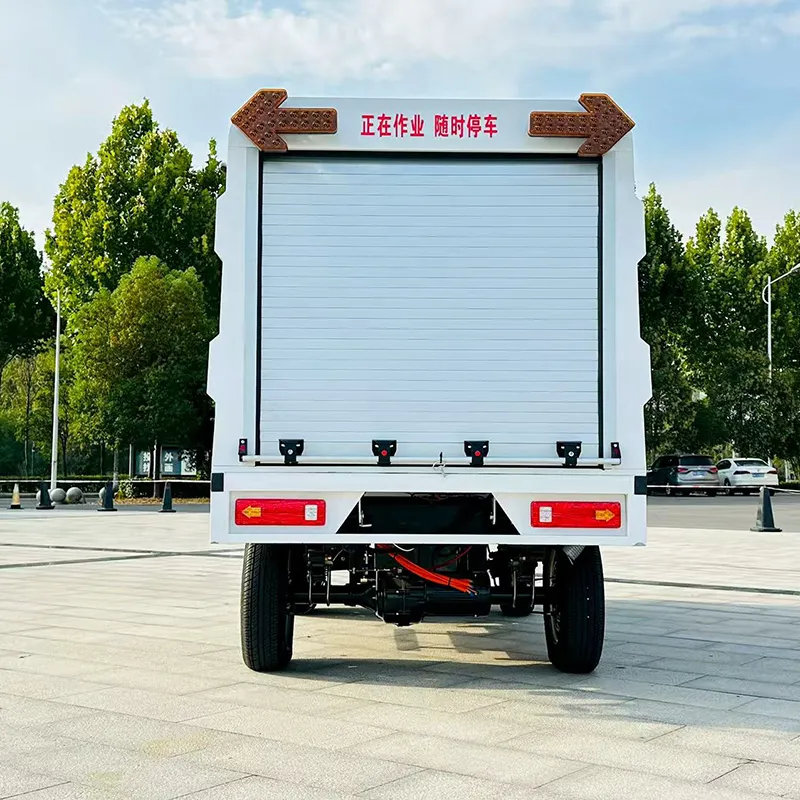

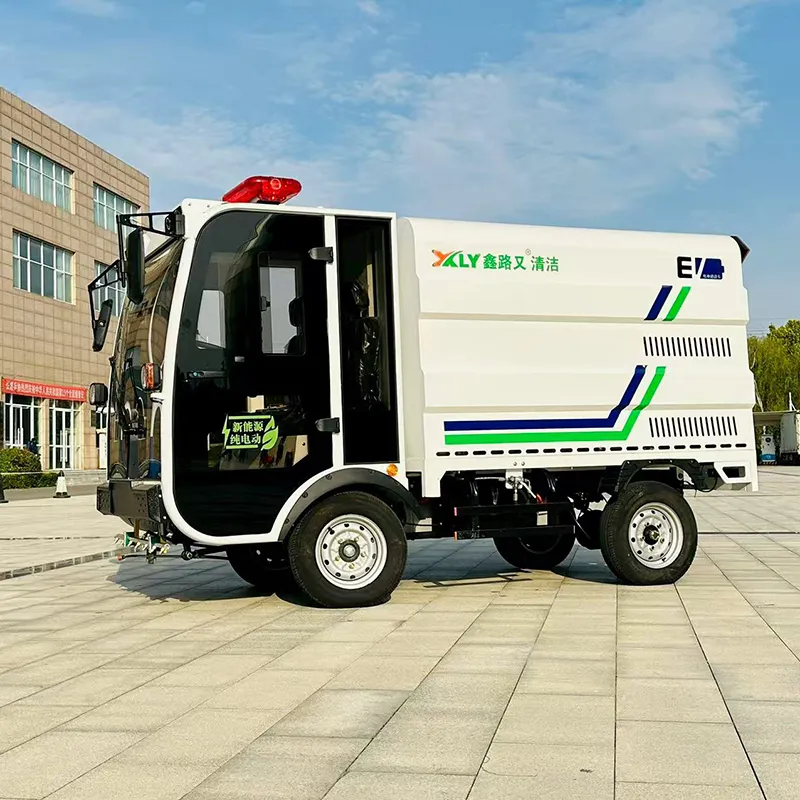

K20-2000 Fully Enclosed Electric Four-Wheel High-Pressure Cleaning Vehicle
Keywords: Cleaning Truck, High-Pressure Cleaning Vehicle, Street Washer Truck
The K20-2000 Fully Enclosed Electric Four-Wheel High-Pressure Cleaning Vehicle is a compact, powerful, and environmentally friendly cleaning solution. Designed for urban sanitation, it combines high-pressure cleaning and front flushing in a fully enclosed, all-electric platform. With a durable stainless steel water tank and high-efficiency cleaning system, it is ideal for streets, sidewalks, industrial areas, and public facilities.
| No. | Component | Specification |
|---|---|---|
| 1 | Chassis Type | Fully enclosed electric four-wheel |
| 2 | Function | Cleaning + Front Flushing |
| 3 | Drive Motor | 3000W brushless DC high-power heavy-duty motor, optimized power matching |
| 4 | Rear Axle | Differential integrated high-low speed axle, minimum 250mm diameter segmented brake drums; load-bearing leaf spring rear suspension |
| 5 | Battery | 72V 100Ah, stable performance, long life, consistent working voltage |
| 6 | Climbing Ability | ≤15° |
| 7 | Maximum Speed | 30 km/h |
| No. | Component | Specification |
|---|---|---|
| 8 | Cabin | Enclosed steel frame, glass doors, electric windshield wiper, digital instrument display, adjustable leather seat, large-view rearview mirrors |
| 9 | Lights & Signals | Dual headlights, turn signals, brake lights, rear lights, reverse horn, long-strip warning light |
| 10 | Frame & Body | Carbon steel structure, automotive-grade electrophoretic coating, high-temperature baked paint, corrosion-resistant |
| 11 | Braking System | Front mechanical brake, parking brake included |
| 12 | Frame | Rectangular tube frame |
| 13 | Suspension | Rear leaf spring non-independent suspension |
| 14 | Tire Specification | Front: 165R13 vacuum tires |
| 15 | Vehicle Dimensions | L: 3800 mm × W: 1300 mm × H: 1850 mm |
| No. | Component | Specification |
|---|---|---|
| 1 | Compartment Material | Galvanized sheet |
| 2 | Compartment Dimensions | L: 2095 mm × W: 1450 mm × H: 1300 mm |
| 3 | Tank Material | Stainless steel, 1.5 mm thick; full weld, brushed finish; internal pressure-resistant design; equipped with inlet, drain, overflow, and water level display |
| 4 | Tank Capacity | 1900 L |
| No. | Component | Specification |
|---|---|---|
| 1 | Motor Power | 4000 W |
| 2 | Cleaning Pressure | 150 kg/cm² |
| 3 | Water Flow | 13 L/min (cold water) |
| 4 | Hose Reel | 13-meter heavy-duty dual-arm automatic retractable hose; dual-layer hydraulic hose with ultra-wear-resistant protective sleeve |
| 5 | Filter | 80-mesh water filter, clearly positioned for easy cleaning |
| 6 | Spray Device | High-pressure gun with multiple spray modes (0°, 15°, 25°, 45°, rotating); front flush and rear spray |
| 7 | Water Path Switching | Stainless steel high-pressure ball valve, convenient and fast |
| 8 | High-Pressure Ball Valve | 304 stainless steel, rust-resistant, high-pressure rated up to 31.5 MPa |
Fully Enclosed Cabin: Protects operator from splashes, dust, and weather.
Multi-Functional Cleaning: High-pressure cleaning and front flushing.
Powerful & Efficient: 3000W drive motor and 4000W cleaning pump ensure effective cleaning.
Durable Construction: Stainless steel water tank, carbon steel frame, corrosion-resistant coatings.
Convenient Operation: Ergonomic cabin with adjustable seat, digital display, and large mirrors.
Eco-Friendly: All-electric, zero emissions, quiet operation.
Suitable for a variety of urban cleaning tasks, including:
Streets, sidewalks, and alleys
Industrial areas and construction sites
Public parks, schools, hospitals, and office complexes
Parking lots and pedestrian pathways
Urban streets, station areas, and guardrails
This K20-2000 High-Pressure Cleaning Vehicle is ideal for efficient, safe, and eco-friendly urban cleaning operations.
Q1: What is the maximum speed?
A1: The vehicle can reach up to 30 km/h, allowing safe and efficient urban cleaning.
Q2: How many operators are required?
A2: The vehicle is designed for single-person operation.
Q3: What is the tank capacity?
A3: The fully enclosed stainless steel tank holds 1900 liters.
Q4: What is the climbing ability?
A4: Capable of climbing slopes up to 15°.
Q5: What cleaning functions are available?
A5: High-pressure cleaning and front flushing, with multiple adjustable spray modes.
Q6: What type of battery is used?
A6: 72V 100Ah battery with long life, stable voltage, and reliable performance.
Q7: Where can this vehicle be used?
A7: Ideal for streets, sidewalks, urban roads, public areas, and industrial facilities.
| No. | Component | Specification |
|---|---|---|
| 1 | Chassis Type | Fully enclosed electric four-wheel |
| 2 | Function | Cleaning + Front Flushing |
| 3 | Drive Motor | 3000W brushless DC high-power heavy-duty motor, optimized power matching |
| 4 | Rear Axle | Differential integrated high-low speed axle, minimum 250mm diameter segmented brake drums; load-bearing leaf spring rear suspension |
| 5 | Battery | 72V 100Ah, stable performance, long life, consistent working voltage |
| 6 | Climbing Ability | ≤15° |
| 7 | Maximum Speed | 30 km/h |
| No. | Component | Specification |
|---|---|---|
| 8 | Cabin | Enclosed steel frame, glass doors, electric windshield wiper, digital instrument display, adjustable leather seat, large-view reaRView mirrors |
| 9 | Lights & Signals | Dual headlights, turn signals, brake lights, rear lights, reverse horn, long-strip warning light |
| 10 | Frame & Body | Carbon steel structure, automotive-grade electrophoretic coating, high-temperature baked paint, corrosion-resistant |
| 11 | Braking System | Front mechanical brake, parking brake included |
| 12 | Frame | Rectangular tube frame |
| 13 | Suspension | Rear leaf spring non-independent suspension |
| 14 | Tire Specification | Front: 165R13 vacuum tires |
| 15 | Vehicle Dimensions | L: 3800 mm × W: 1300 mm × H: 1850 mm |
| No. | Component | Specification |
|---|---|---|
| 1 | Compartment Material | Galvanized sheet |
| 2 | Compartment Dimensions | L: 2095 mm × W: 1450 mm × H: 1300 mm |
| 3 | Tank Material | Stainless steel, 1.5 mm thick; full weld, brushed finish; internal pressure-resistant design; equipped with inlet, drain, overflow, and water level display |
| 4 | Tank Capacity | 1900 L |
| No. | Component | Specification |
|---|---|---|
| 1 | Motor Power | 4000 W |
| 2 | Cleaning Pressure | 150 kg/cm² |
| 3 | Water Flow | 13 L/min (cold water) |
| 4 | Hose Reel | 13-meter heavy-duty dual-arm automatic retractable hose; dual-layer hydraulic hose with ultra-wear-resistant protective sleeve |
| 5 | Filter | 80-mesh water filter, clearly positioned for easy cleaning |
| 6 | Spray Device | High-pressure gun with multiple spray modes (0°, 15°, 25°, 45°, rotating); front flush and rear spray |
| 7 | Water Path Switching | Stainless steel high-pressure ball valve, convenient and fast |
| 8 | High-Pressure Ball Valve | 304 stainless steel, rust-resistant, high-pressure rated up to 31.5 MPa |
Fully Enclosed Cabin: Protects operator from splashes, dust, and weather.
Multi-Functional Cleaning: High-pressure cleaning and front flushing.
Powerful & Efficient: 3000W drive motor and 4000W cleaning pump ensure effective cleaning.
Durable Construction: Stainless steel water tank, carbon steel frame, corrosion-resistant coatings.
Convenient Operation: Ergonomic cabin with adjustable seat, digital display, and large mirrors.
Eco-Friendly: All-electric, zero emissions, quiet operation.
Suitable for a variety of urban cleaning tasks, including:
Streets, sidewalks, and alleys
Industrial areas and construction sites
Public parks, schools, hospitals, and office complexes
Parking lots and pedestrian pathways
Urban streets, station areas, and guardrails
This K20-2000 High-Pressure Cleaning Vehicle is ideal for efficient, safe, and eco-friendly urban cleaning operations.
Q1: What is the maximum speed?
A1: The vehicle can reach up to 30 km/h, allowing safe and efficient urban cleaning.
Q2: How many operators are required?
A2: The vehicle is designed for single-person operation.
Q3: What is the tank capacity?
A3: The fully enclosed stainless steel tank holds 1900 liters.
Q4: What is the climbing ability?
A4: Capable of climbing slopes up to 15°.
Q5: What cleaning functions are available?
A5: High-pressure cleaning and front flushing, with multiple adjustable spray modes.
Q6: What type of battery is used?
A6: 72V 100Ah battery with long life, stable voltage, and reliable performance.
Q7: Where can this vehicle be used?
A7: Ideal for streets, sidewalks, urban roads, public areas, and industrial facilities.
