CL5168GPS6AQC Multi-Functional Road Cleaning and Dust Suppression Truck

Product OveRView

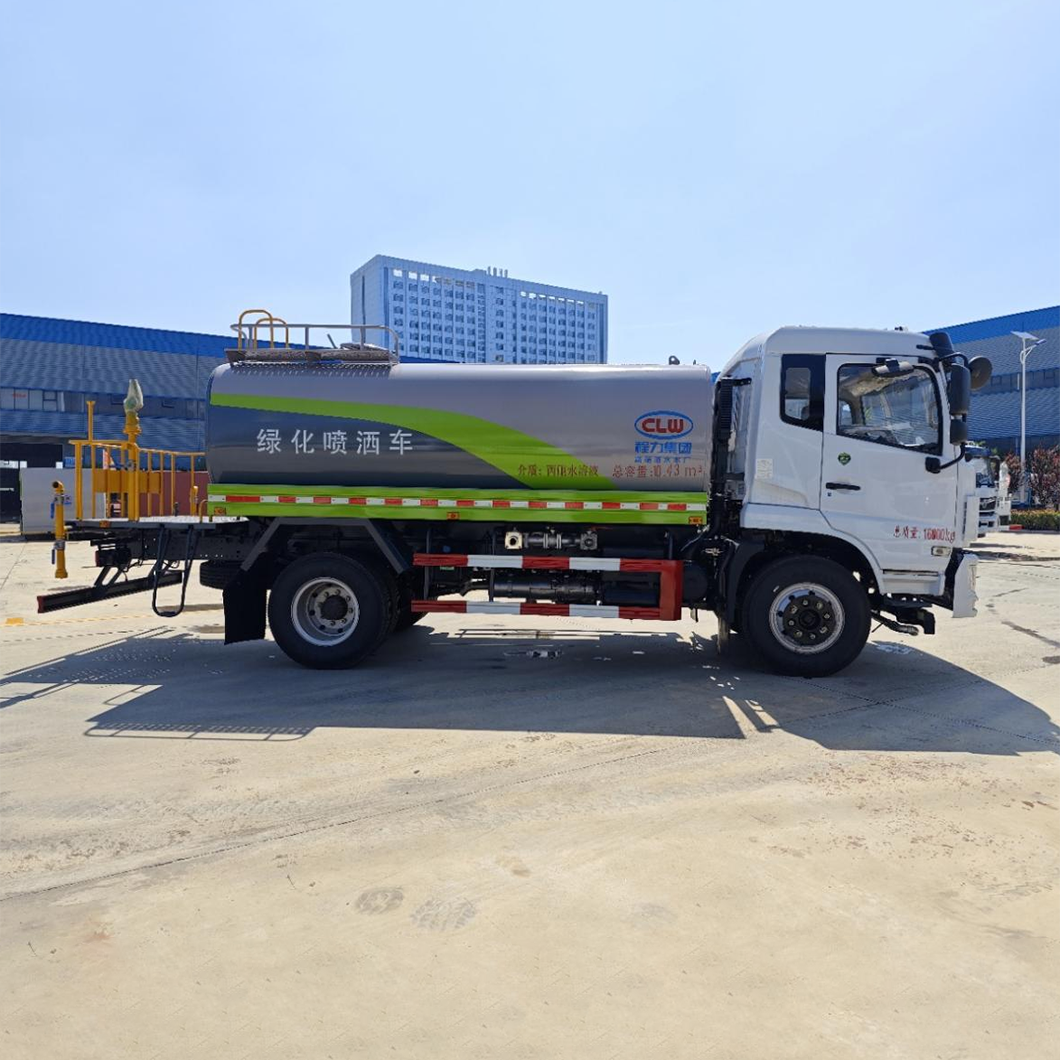

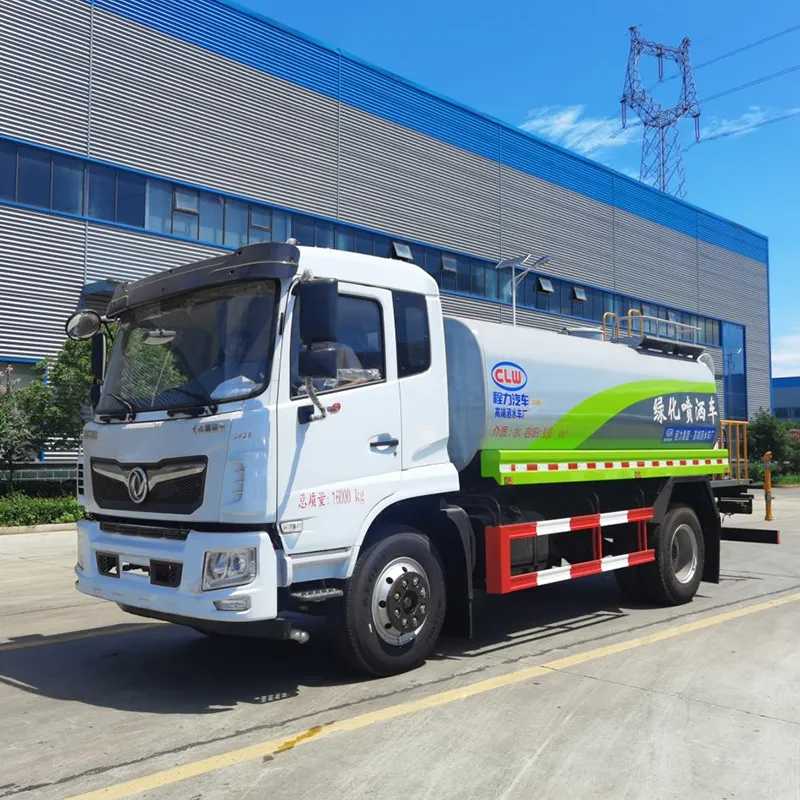

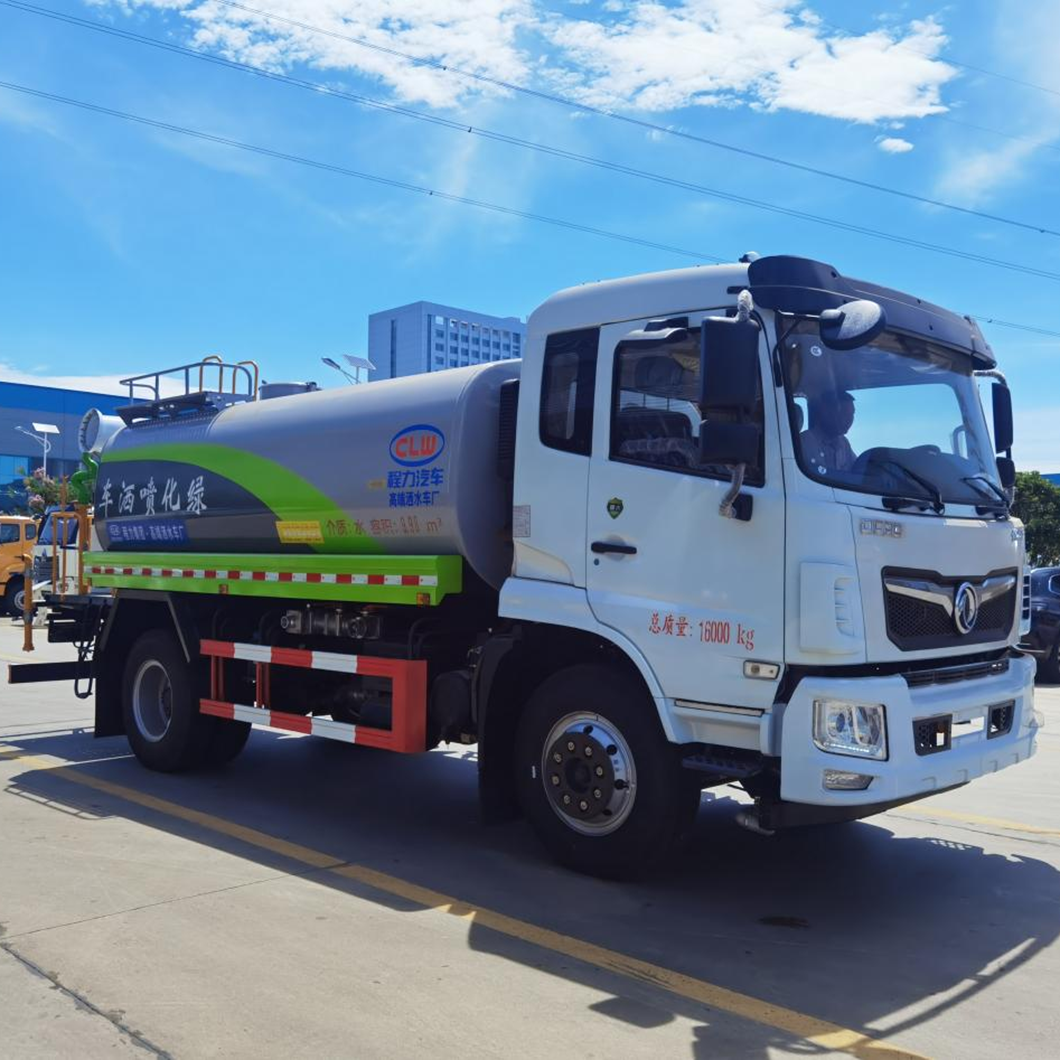

The CL5168GPS6AQC represents a new generation of multi-purpose Road Cleaning Truck designed for modern municipal maintenance and environmental management applications. This versatile vehicle combines powerful cleaning capabilities with efficient water distribution systems, making it an ideal solution for urban sanitation, dust control, and landscape irrigation projects. Built on the reliable EQ1165S8EDF chassis and powered by a robust Yunnei 170HP engine, this professional-grade Dust Suppression Truck delivers exceptional performance in various operational scenarios.

With an impressive actual water capacity of 12.58 cubic meters and featuring advanced spraying technology, this comprehensive Irrigation Sprinkler Truck ensures efficient operation with minimal downtime. The innovative design incorporates multiple cleaning and irrigation functions, including high-pressure front flushing, wide-area rear sprinkling, and precision side spraying capabilities. This multi-functional unit stands as a testament to engineering excellence, offering unmatched reliability and operational efficiency for municipal authorities, construction companies, and landscaping professionals.

Technical Specifications

Basic Parameters

Engine Configuration

Chassis Configuration

Performance Capabilities

Cleaning and Spraying Performance

Specialized Features

• High-pressure front flushing for effective road cleaning

• Wide-angle rear sprinkling for comprehensive coverage

• Strategic side spraying for targeted irrigation

• Adjustable water cannon with multiple pattern settings

• Self-priming capability with filtration system

• Fire-fighting interface compatibility

• Self-flow valve for efficient water management

Advanced Features

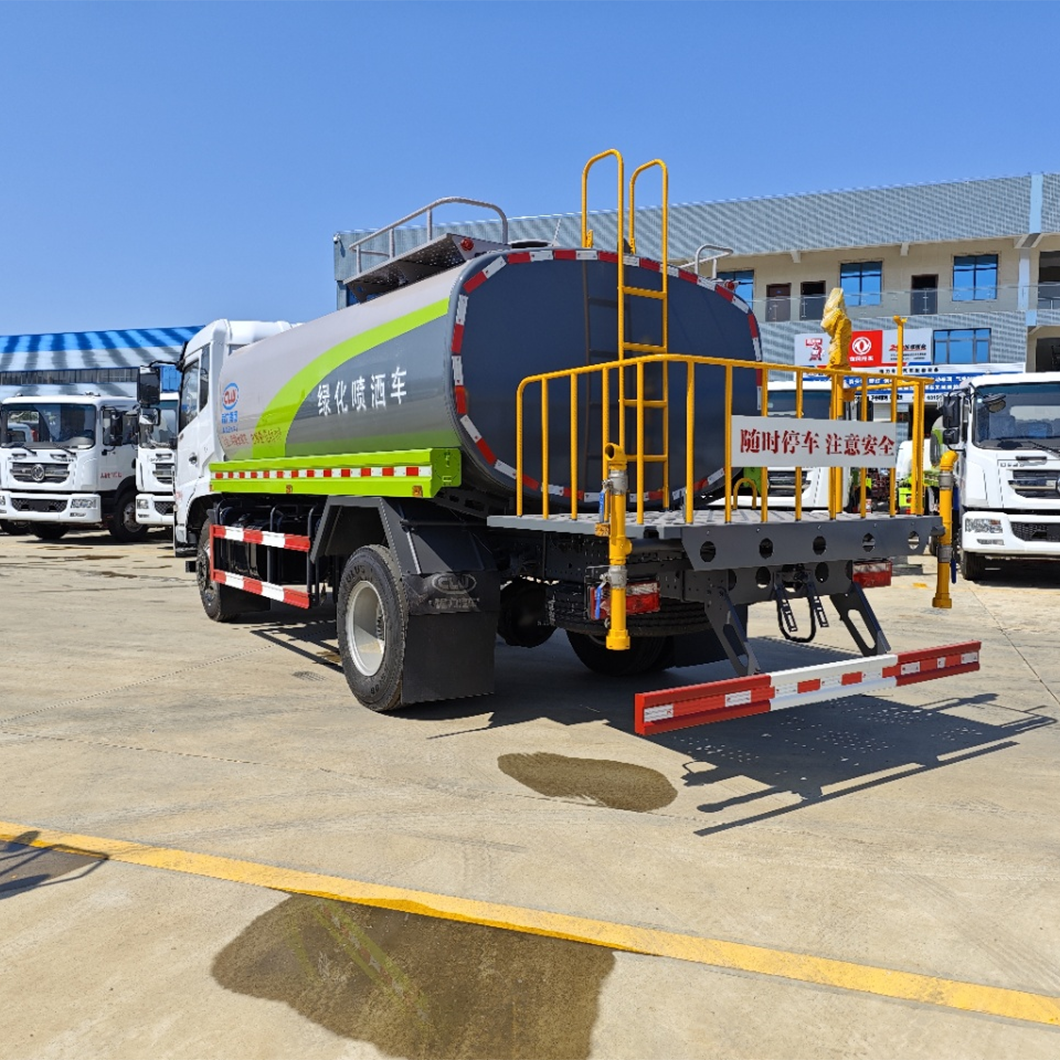

High-Capacity Water Management System

This professional Road Cleaning Truck features a optimized water tank with an actual capacity of 12.58 cubic meters, constructed from premium Q235 carbon steel. The tank incorporates 3mm thick baffles, 4mm body thickness, and 5mm reinforced headers, ensuring exceptional durability and structural integrity. The capacity is strategically designed to balance operational efficiency with maneuverability in urban environments.

Comprehensive Cleaning and Spraying System

The vehicle boasts a multi-functional configuration that includes high-pressure front flushing nozzles for effective Road Cleaning Truck operations, wide-angle rear sprinklers for extensive area coverage, and strategically positioned side sprayers for targeted irrigation. The advanced high-pressure water cannon mounted on the rear platform offers multiple adjustable patterns including direct jet for powerful cleaning, heavy rain for quick watering, medium rain for general irrigation, and fine drizzle for gentle plant care.

Professional-Grade Plumbing System

The Dust Suppression Truck incorporates a heavy-duty 76mm main pipeline system featuring large-diameter straight-through ball valves and premium aluminum alloy fittings. The plumbing components include cast steel elbow tees, aluminum alloy flange tees, all manufactured through single-time mold casting technology that eliminates welding seams and prevents leakage. The standardized design ensures excellent interchangeability, facilitating easy maintenance and component replacement.

Enhanced Operational Platform

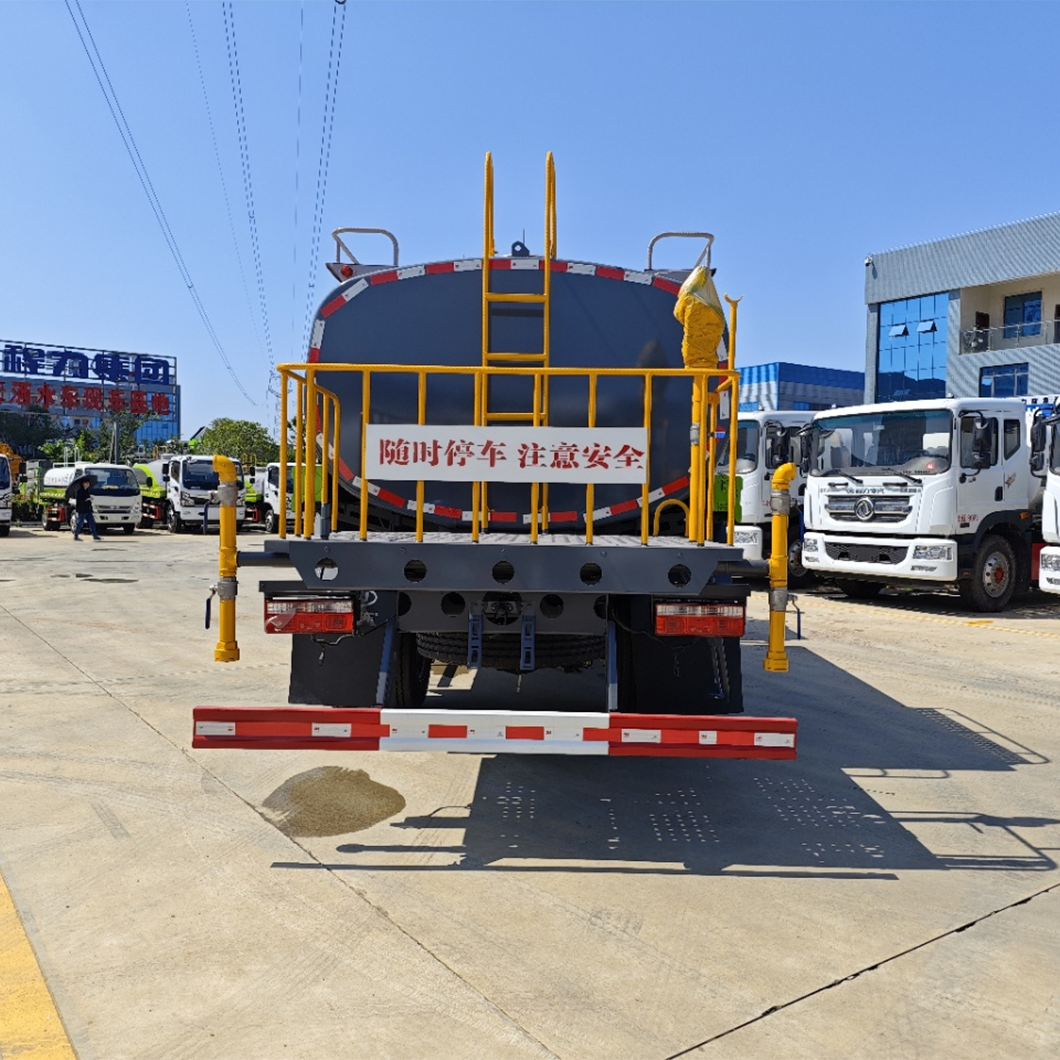

The rear operational platform features thickened punched steel plate construction that provides superior anti-slip properties and prevents water accumulation. The optimized structural design offers improved durability and safety for operators during cleaning and spraying operations.

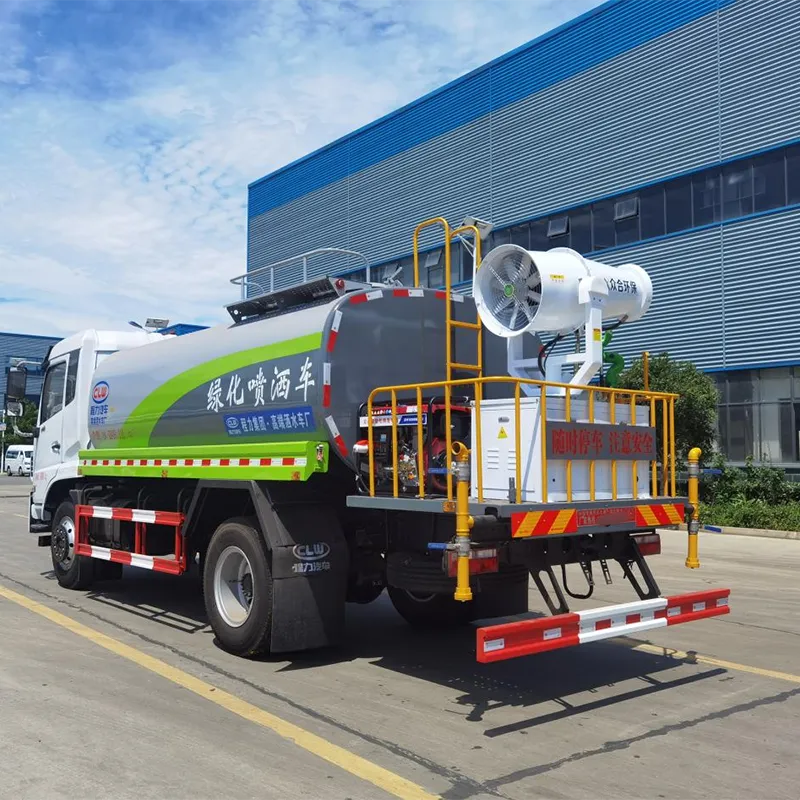

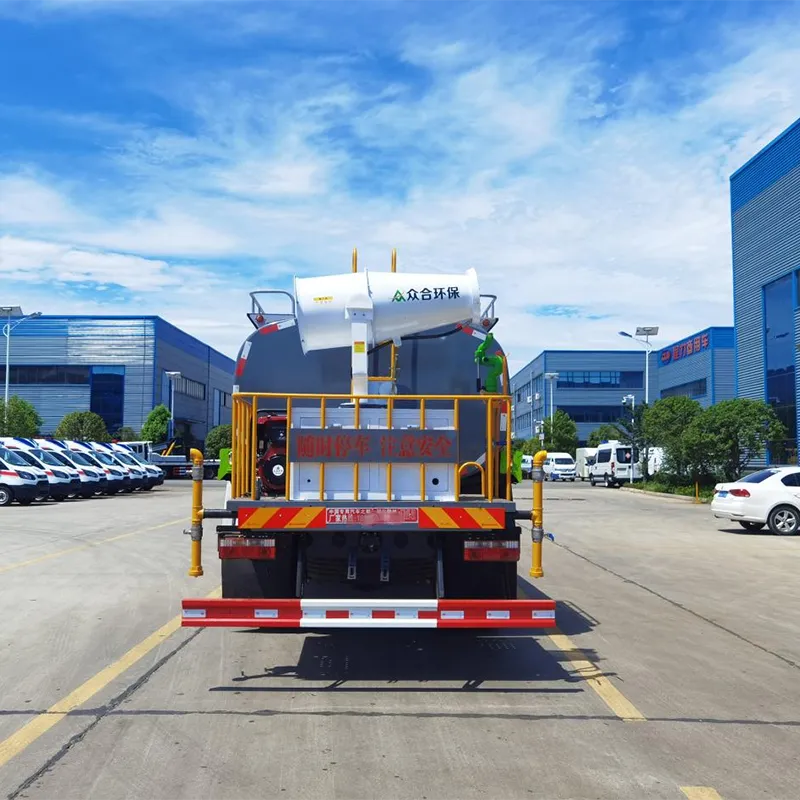

Optional Mist Cannon System

Advanced Dust Suppression Technology

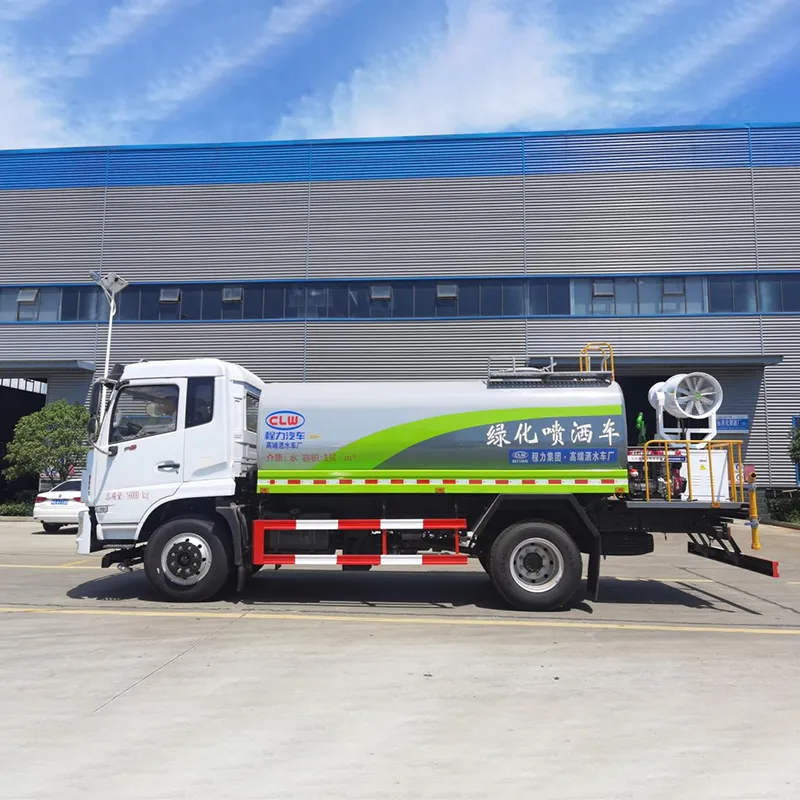

The available QF-30 wind-type mist cannon represents advanced technology in dust control, powered by an 8KW air-cooled diesel generator set. The system features a 2.2KW fan motor and 1.5KW water pump, operating at 1.0-3.5MPA pressure with a spray flow rate of 20L/min. This comprehensive Dust Suppression Truck solution provides exceptional versatility with remote-controlled operation offering -5 to 60-degree vertical adjustment and 360-degree horizontal rotation capability.

Precision Spray Performance

Equipped with 16 stainless steel nozzles, the system produces fine droplets in the 50-150μm range, ideal for effective dust suppression and specialized spraying applications. The cannon achieves an impressive 30-meter horizontal range in calm wind conditions, making it perfectly suited for construction sites, mining operations, and industrial facilities where dust control is critical.

Physical Dimensions

• Fan Base Dimensions: Approximately 1050×550×1700mm

• Generator Dimensions: Approximately 800×600×650mm

• Note: Actual dimensions may vary slightly from specified measurements

Product Advantages

Operational Efficiency

The combination of substantial water capacity and versatile spraying systems enables this Irrigation Sprinkler Truck to handle multiple tasks without frequent refilling interruptions. The optimized chassis design provides excellent stability and maneuverability in various environments, from narrow urban streets to construction sites.

Durability and Reliability

Manufactured with industrial-grade materials and quality components, this vehicle guarantees long service life under demanding working conditions. The reinforced tank construction and professional-grade systems minimize downtime and maintenance costs.

Multi-Functional Applications

This versatile Road Cleaning Truck serves numerous purposes including comprehensive street cleaning, effective dust suppression, efficient irrigation, and emergency fire-fighting support. The flexible system configuration adapts to seasonal requirements and changing operational demands.

Operator Comfort and Safety

The ergonomic cabin design prioritizes operator comfort with modern amenities and safety features. The vehicle includes all necessary components for secure operation in various conditions.

Application Scenarios

Urban Road Maintenance

Ideal for comprehensive urban cleaning operations, street maintenance, and public space sanitation. The precise spraying control prevents water waste while ensuring effective cleaning performance.

Construction Site Management

Essential for effective dust control at construction sites and industrial facilities. The advanced mist cannon option effectively suppresses airborne particles, maintaining regulatory compliance.

Agricultural Irrigation

Suitable for large-scale agricultural irrigation and landscape maintenance. The extended range and adjustable patterns accommodate various crop types and field conditions.

Municipal Services

The powerful cleaning system efficiently maintains urban infrastructure while the adjustable pressure settings accommodate various surface types and cleaning requirements.

Frequently Asked Questions

Q: What is the primary function of this vehicle?
A: This multi-functional unit serves as a comprehensive Road Cleaning Truck, Dust Suppression Truck, and Irrigation Sprinkler Truck for various municipal and industrial applications.

Q: What maintenance is required for the spraying system?
A: Regular inspection of nozzles and filters, periodic pump maintenance, and annual comprehensive system checks are recommended.

Q: How does the mist cannon enhance operational capabilities?
A: The mist cannon significantly expands dust suppression capabilities, offering remote-controlled operation and fine mist generation for optimal particle control.

Q: What is the expected service life of the water tank?
A: The Q235 carbon steel construction typically provides 10-15 years of service life with proper maintenance and corrosion protection.

Q: Can the vehicle operate in various weather conditions?
A: Yes, the robust chassis design and reliable components ensure operation in various weather conditions, with appropriate precautions for extreme temperatures.

Q: What training is provided for operators?
A: Comprehensive operational training covering all systems, safety procedures, and maintenance requirements is provided to ensure optimal performance.
