Product OveRView

The 18-ton Pure Electric Multi-functional Dust Suppression Truck is a new-generation sanitation vehicle developed by our company. It is built on our self-developed CL1181JBEV Type-II pure electric truck chassis. This product is independently designed and manufactured by our company, leveraging years of experience in the sanitation vehicle industry and thorough market research to meet customer needs. It adopts an integrated design of chassis and upper body, specifically engineered to improve operational convenience and address customer pain points.

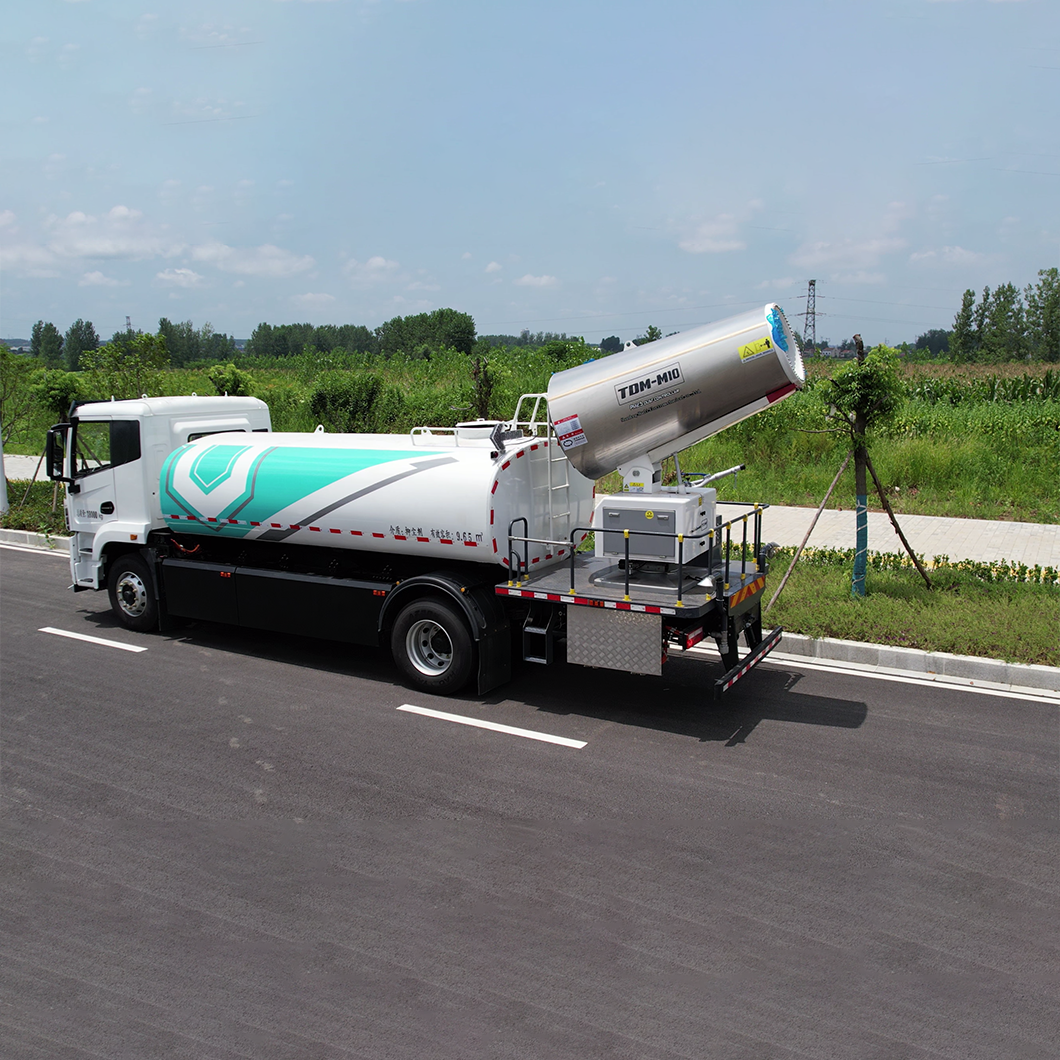

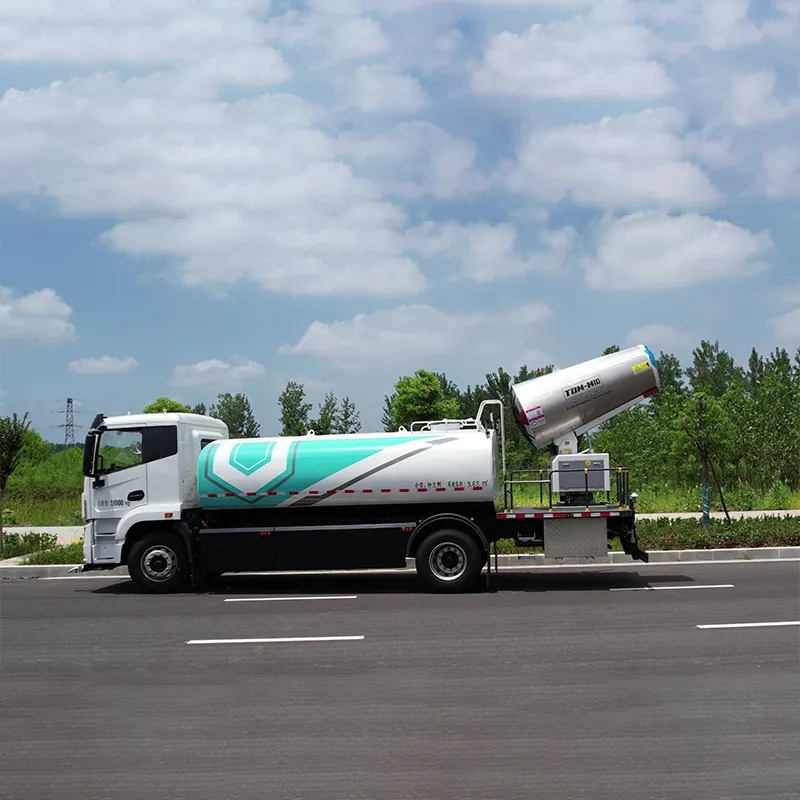

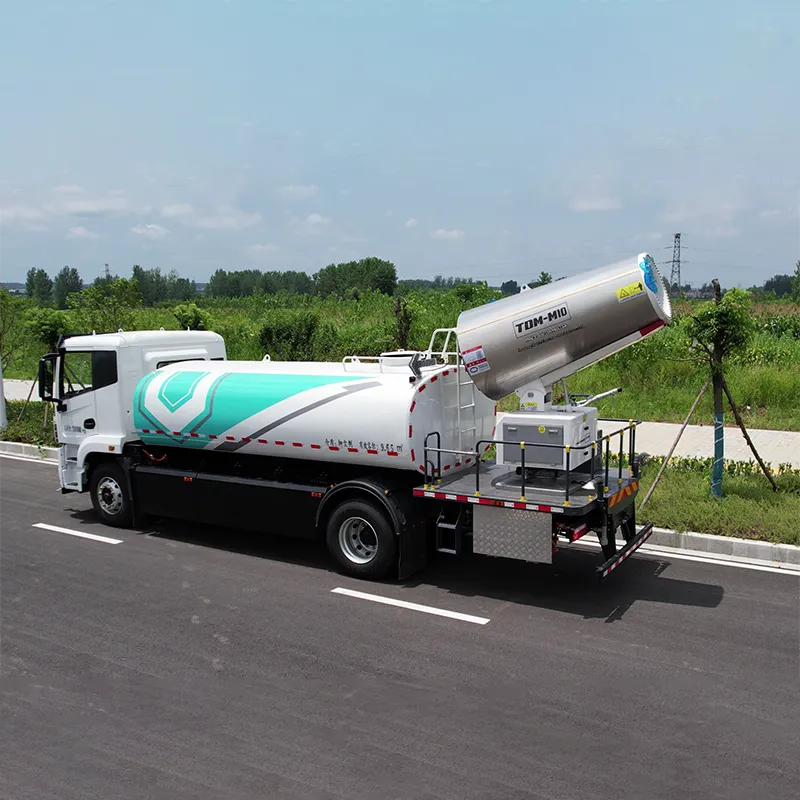

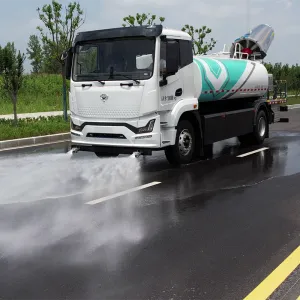

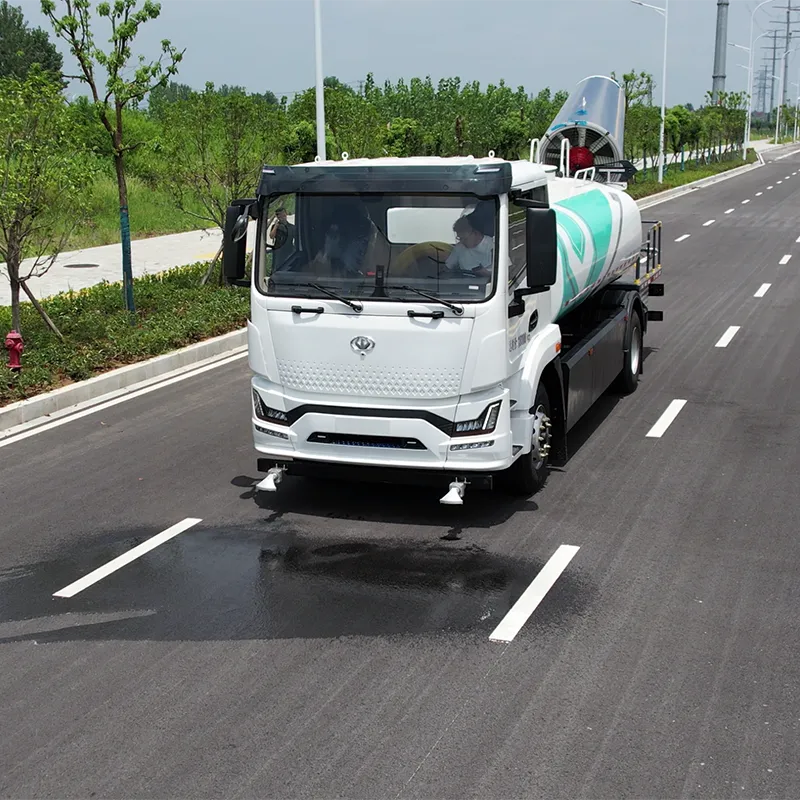

Figure 1: Static View of the Vehicle

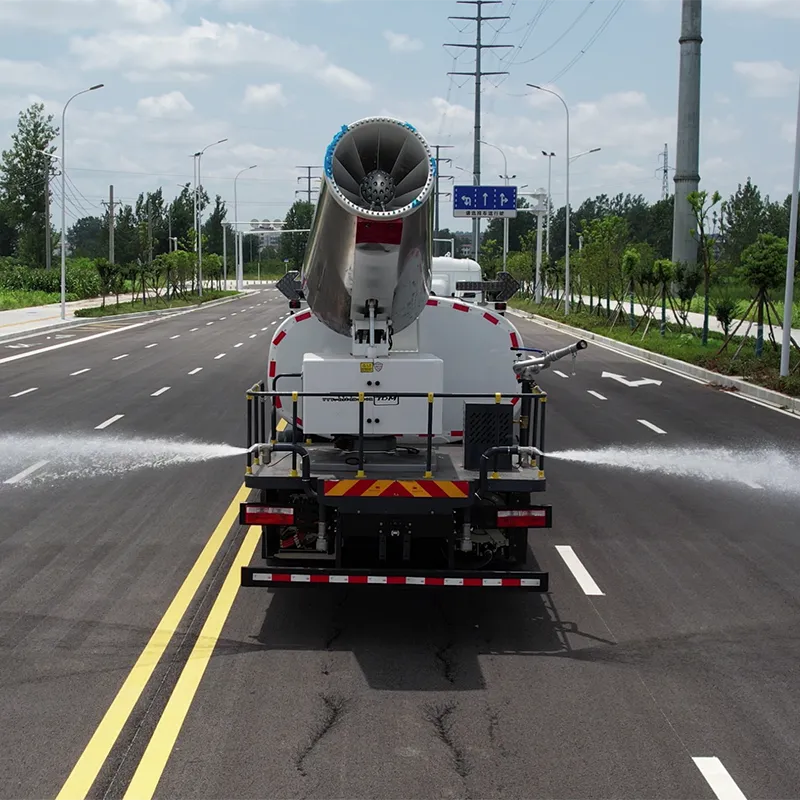

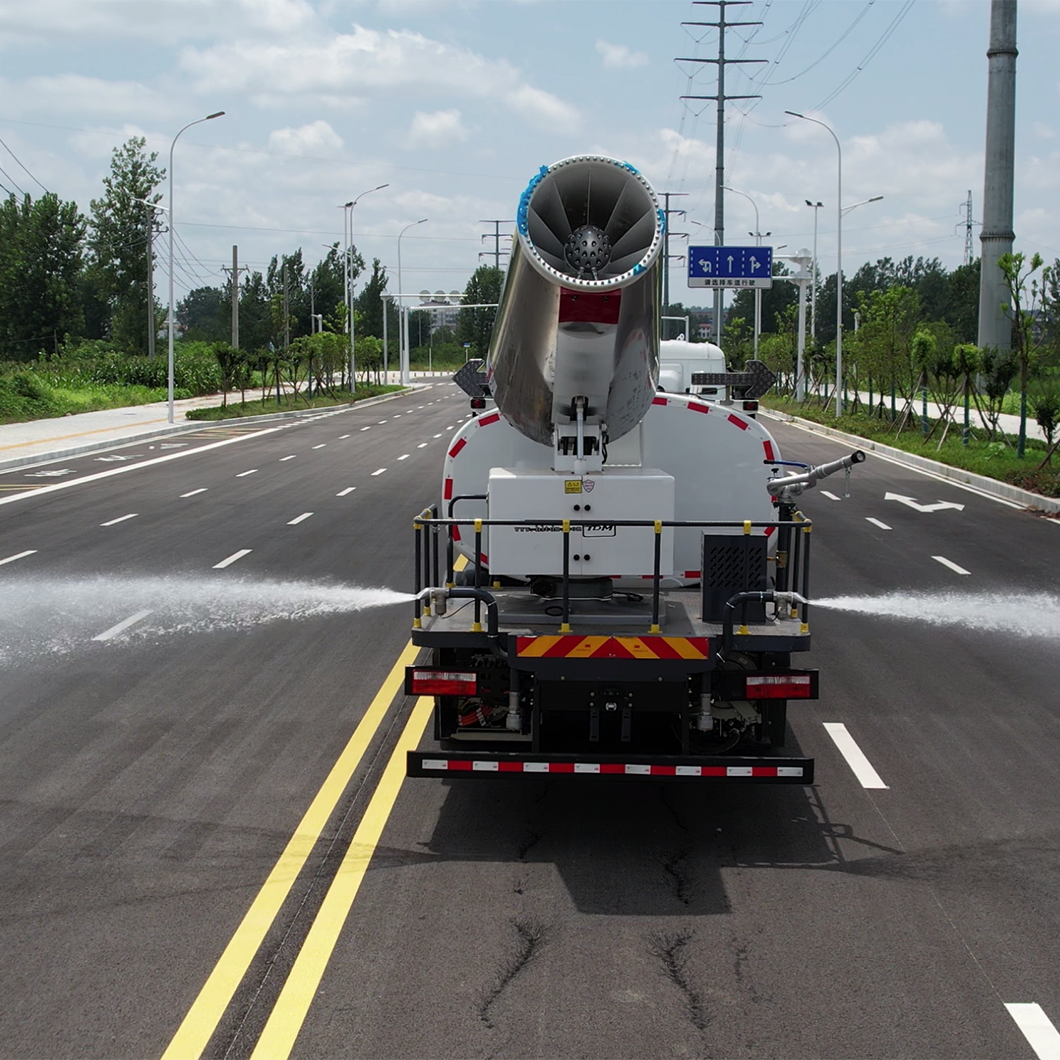

The vehicle primarily uses a high-performance fog cannon system to spray atomized water, which combines with airborne particulate matter and settles it to the ground. This process can reduce more than 70% of fine particles, significantly improving air quality. It can be used to suppress dust and purify the air in roads, squares, and parks; as well as control dust emissions in demolition sites, powder storage yards, construction sites, and open-pit mines, effectively reducing air pollution at the source.

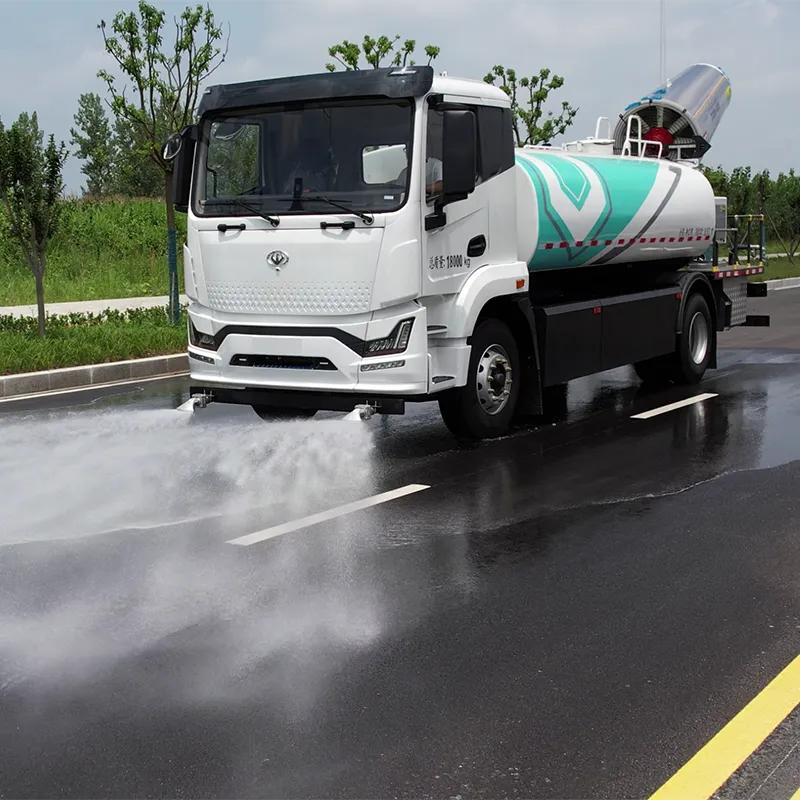

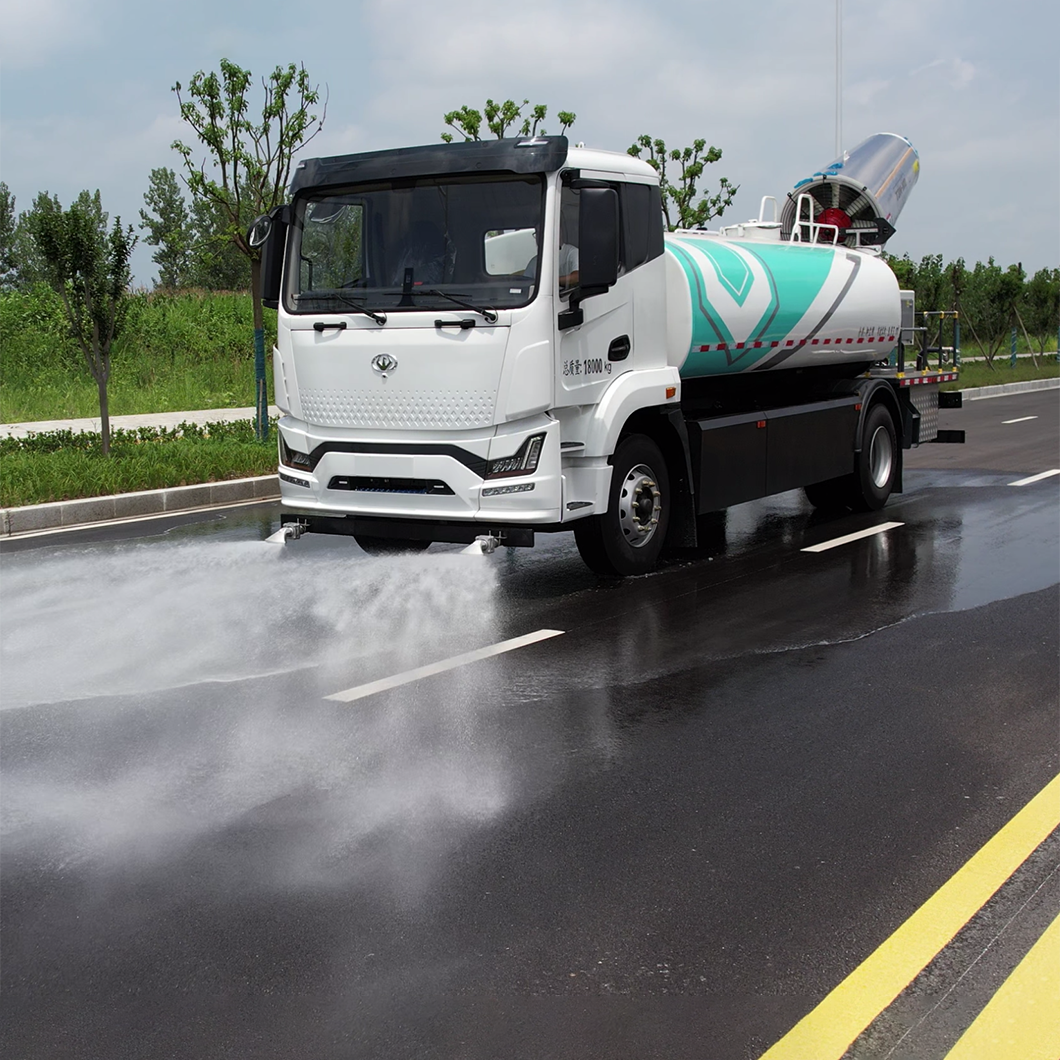

This product integrates multiple functions including road flushing, water spraying for dust suppression, and airborne dust reduction, making it an ideal vehicle for municipal sanitation and air quality management.

Main Technical Specifications

(Additional detailed tables for fog cannon system, water pump specs, and control unit available upon request.)

 Key Features & Advantages

3.1 Proprietary Chassis Design

• Integrated Design: Chassis and upper body engineered together for dust suppression operations, preserving structural integrity and corrosion resistance.

• Advanced Coating Process: Electrophoretic coating ensures 6–8 years of corrosion resistance.

• Smart Power System: Optimized for dust suppression operations using big data for efficient power management.

• Real-time Monitoring: Comprehensive data collection for operational analysis and fleet management.

3.2 High Safety Standards

• Battery: IP68 protection, LFP chemistry, thermal runaway prevention, real-time monitoring.

• Motor: IP68 protection, multiple protective features including overload, short-circuit, and temperature control.

• Electronic Control: Integrated 4-in-1 controller with IP68 protection.

• Driver Assistance: 360° camera system, anti-rollback function.

• Operational Safety: Low water level alarm, valve protection, over-speed safeguards.

3.3 Ultra-Fast Charging

• Dual-gun DC fast charging, 30% to 80% SOC in just 30 minutes (with ≥150kW charger).

3.4 User-Friendly Design

• EPB (Electronic Parking Brake), Auto Hold, cruise control, rotary gear selector, silent mode, ergonomic cab design.

3.5 Comfort Features

• Air suspension leather seats, automatic climate control, 12.3-inch digital instrument panel, multifunction steering wheel, spacious flat-floor cab.

3.6 Extended Operation

• Full water tank (9.65 m³) supports 90 minutes of continuous fog cannon operation.

3.7 Proven Reliability

• High-Temperature Testing: Conducted in Turpan, Xinjiang, under extreme conditions (up to 82.3°C ground temperature).

• Water-Wading Test: Successfully passed 500mm depth test with no electrical or mechanical failures.

• Durability Test: Completed severe road simulation including cobblestone, Belgian road, and gradient tests.

4. Specialized Components

4.1 Water Tank

• High-strength carbon steel with electrophoretic anti-corrosion coating, internal epoxy lining, CAE structural analysis for durability.

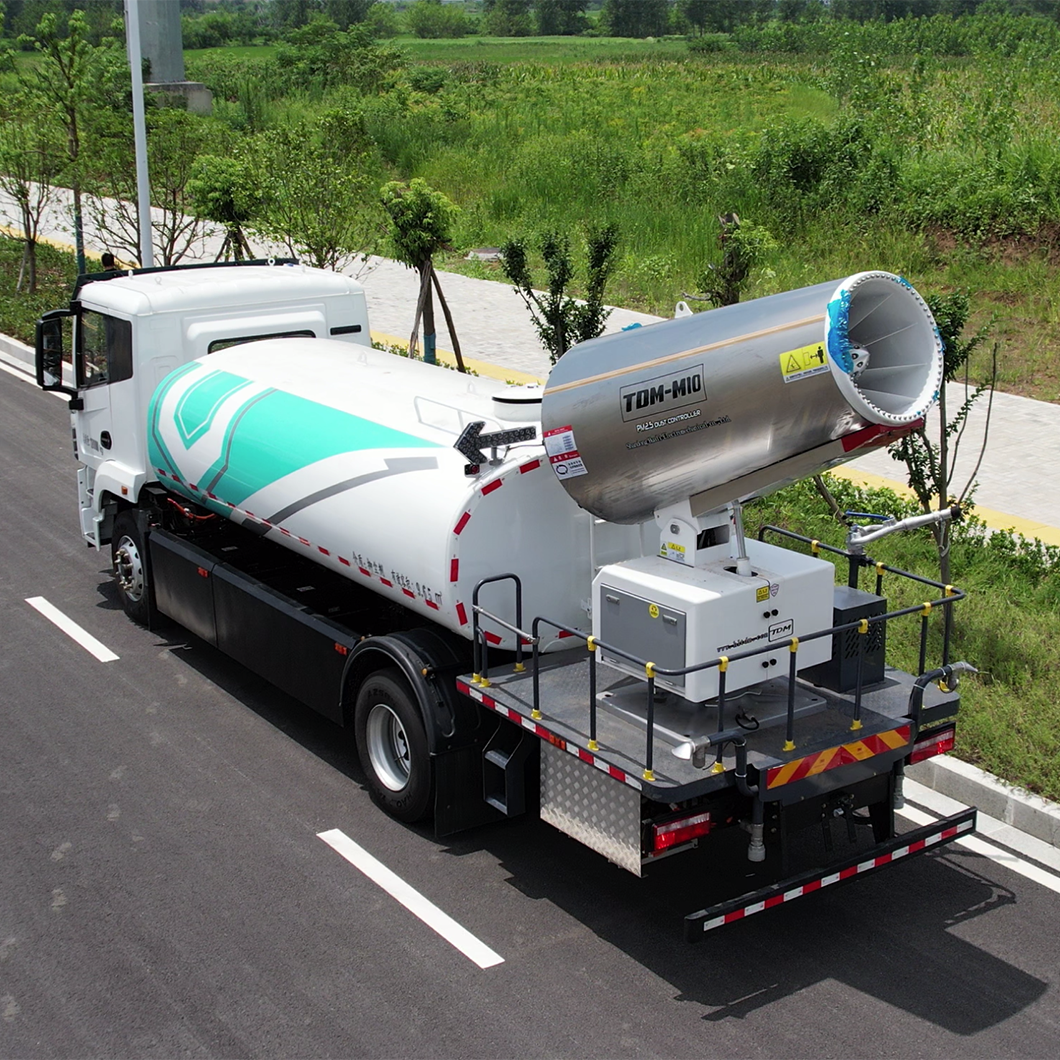

4.2 Fog Cannon Unit

• Spray range: 100m, atomized droplet size: 20–200 μm, 360° adjustable rotation, noise reduction design, advanced dual-ring spray system.

4.3 Intelligent Control System

• CAN-bus architecture, real-time monitoring, one-button winter drainage, integrated 30kW PMSM drive motor, IP67-rated water pump system.

Applications

• Municipal sanitation

• Urban dust control

• Open-pit mining

• Construction and demolition sites

• Coal yards, cement plants, steel mills

Frequently Asked Questions (FAQ)

Q1: What is the main function of the 18-ton Pure electric dust suppression truck?
A1: The primary function of this truck is to reduce dust pollution by spraying fine mist over construction sites, mining areas, urban roads, and industrial zones. It helps improve air quality and minimize airborne particles, especially in dry and windy conditions.

Q2: How long can the truck operate on a full charge?
A2: The 18-ton all-electric dust suppression truck is equipped with a high-capacity lithium battery pack, providing an operational range of 180–250 kilometers per charge under normal working conditions. Continuous spraying operation can last 6–8 hours, depending on the water tank capacity and spraying mode.

Q3: What is the water tank capacity of this truck?
A3: The water tank typically holds 10,000–12,000 liters, allowing for extended spraying cycles without frequent refills. The tank is made of corrosion-resistant steel to ensure durability.

Q4: Does it support fast charging?
A4: Yes, the truck supports both fast charging and slow charging modes. With a DC fast charger, it can reach 80% charge in about 90 minutes, while a standard AC charger will take approximately 6–8 hours for a full charge.

Q5: What are the spraying methods available?
A5: The truck features multiple spraying modes, including front flush, rear spray, side spray, and high-pressure misting. It also comes with a 360° rotating fog cannon for long-distance dust suppression, ideal for large construction sites and urban cleaning operations.

Q6: How does it perform in terms of environmental benefits?
A6: Being 100% electric, the truck produces zero emissions and significantly reduces noise compared to diesel-powered models. It is an ideal solution for eco-friendly urban sanitation and dust control projects.

Q7: Can it be customized?
A7: Yes, customization options are available, including tank size, spraying distance, fog cannon power, and battery capacity to meet different operational needs.

Q8: Where is this truck commonly used?
A8: This electric dust suppression truck is widely used in construction sites, mining areas, cement plants, steel mills, urban sanitation, and environmental protection projects.
