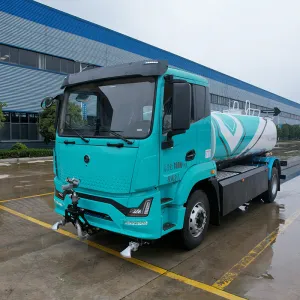

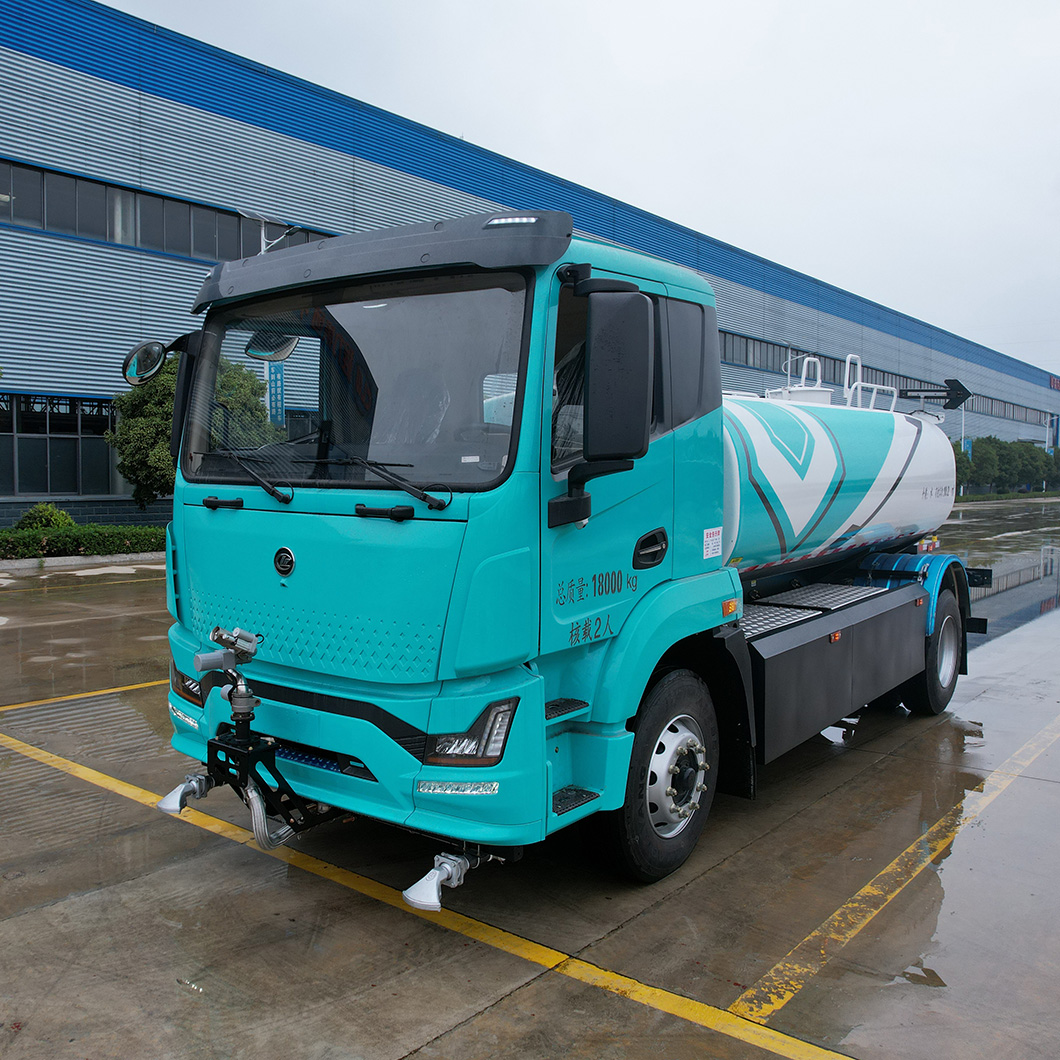

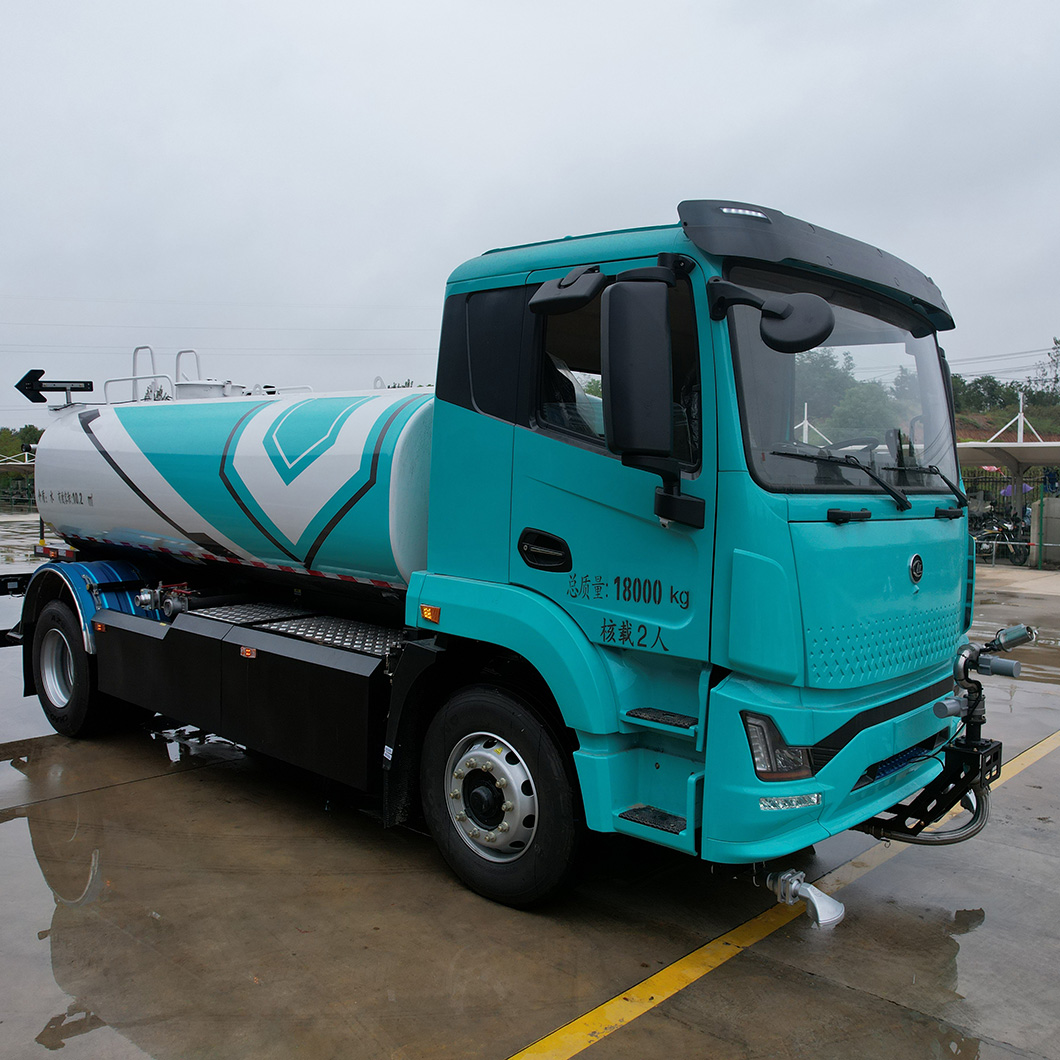

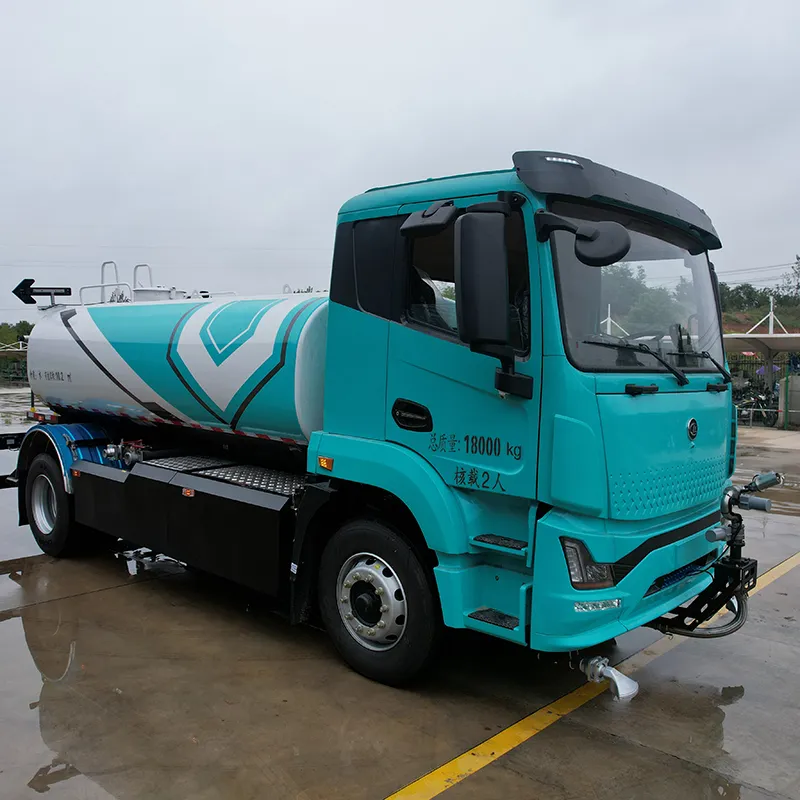

18-Ton Pure Electric water sprinkler truck – CL5185GSSBEV

Product OveRView

The 18-ton pure electric water sprinkler truck represents a new generation of eco-friendly sanitation vehicles developed by our company. It is built on our self-developed CL1180JBEV pure electric chassis, integrating advanced technology, years of industry expertise, and extensive customer feedback. This innovative design combines the chassis and superstructure into one unified solution, specifically engineered to address pain points in the sanitation sector.

Designed for urban road cleaning, dust suppression, landscaping irrigation, and environmental maintenance, this electric water sprinkler truck ensures zero emissions, low noise, high efficiency, and exceptional operational reliability, making it a leading choice for modern cities committed to sustainable development.

Key Technical Specifications

Product Features and Advantages

1. Proprietary Electric Chassis

• Fully self-developed chassis dedicated to sanitation vehicles.

• Integrated design for seamless chassis-superstructure compatibility.

• Advanced corrosion-resistant electrophoretic coating, ensuring 6–8 years of rust-free performance.

• Intelligent three-electric system matching, optimized through big data for energy efficiency.

• Real-time telemetry monitoring and digital fleet management.

2. High Safety Standards

• Battery Protection: IP68-rated battery with dual thermal runaway resistance, advanced insulation, and real-time monitoring for voltage, current, and temperature.

• Motor Protection: IP68-rated motor with instant shutdown in case of overload, short circuit, or overvoltage.

• Integrated Control System: Four-in-one controller with IP68 protection.

• Driver Assistance:

• 360° surround-view cameras.

• Hill-hold functionality for slope safety.

• Low water level alarms and motor speed protection.

3. Ultra-Fast Charging

• Single-port fast charging system: SOC 30% → 80% in just 30 minutes (with 150kW charger at ≥20°C).

4. Superior Comfort

• Air suspension seats, ergonomic cabin design, and floating cab structure for a smooth ride.

• Dual 12.3-inch full LCD displays, multifunction steering wheel, automatic climate control, and large storage space.

• Noise-reduction design and silent operating mode for urban environments.

5. Enhanced Performance

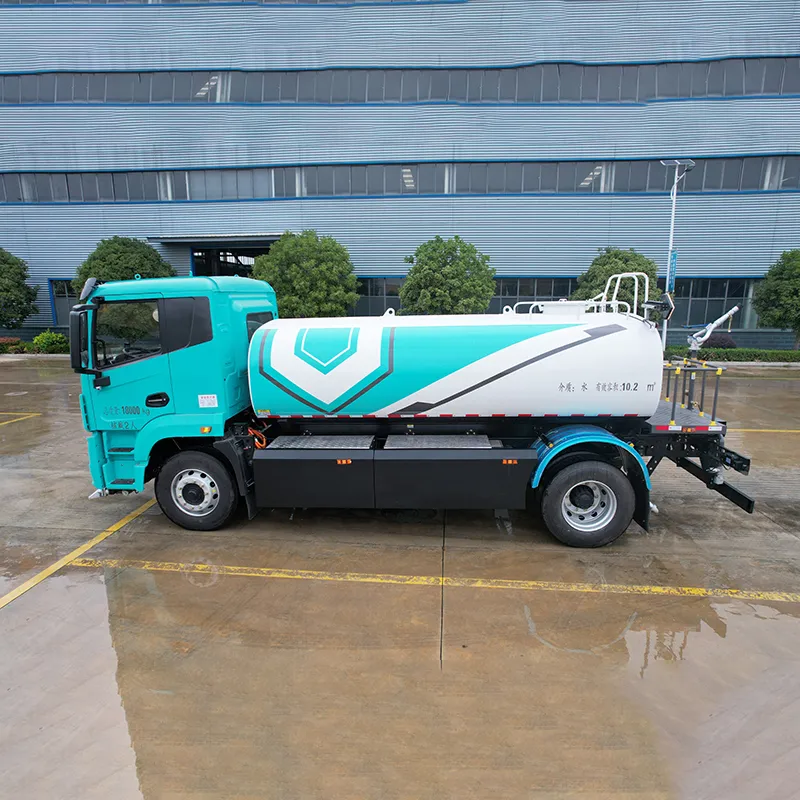

• Large capacity tank (10.2 m³ effective), surpassing industry average for this tonnage.

• Smart speed control: adjustable motor speed for safety in pedestrian zones or traffic signals.

• Low-speed creep and cruise control for easy maneuvering and energy efficiency.

6. Rigorous Reliability Testing

• High-temperature endurance test in Turpan (ambient up to 49.6°C, road surface 70°C+).

• Water-wading test: successfully passed 500mm water depth driving for 10 minutes without performance loss.

• Reinforced road test: includes S-curves, cobblestone, twist roads, slope starts, and brake tests to ensure durability.

Specialized Superstructure

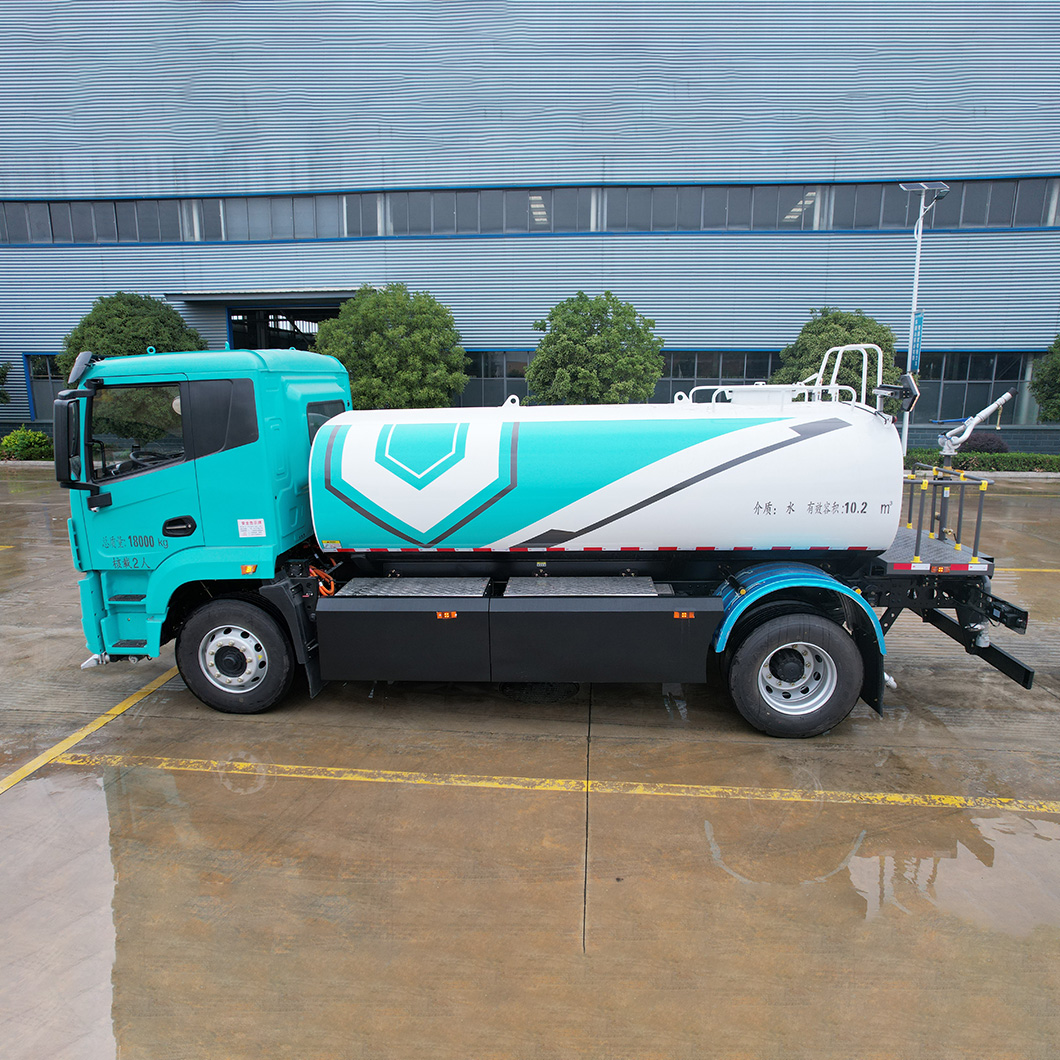

Water Tank

• Made from high-strength Q235B steel, 4mm thick body, 5mm end caps.

• Anti-corrosion treatment with electrophoresis coating and imported anti-rust lining paint.

• Internal wave breakers to minimize impact during driving.

• Anti-vortex design to prevent pump cavitation and noise.

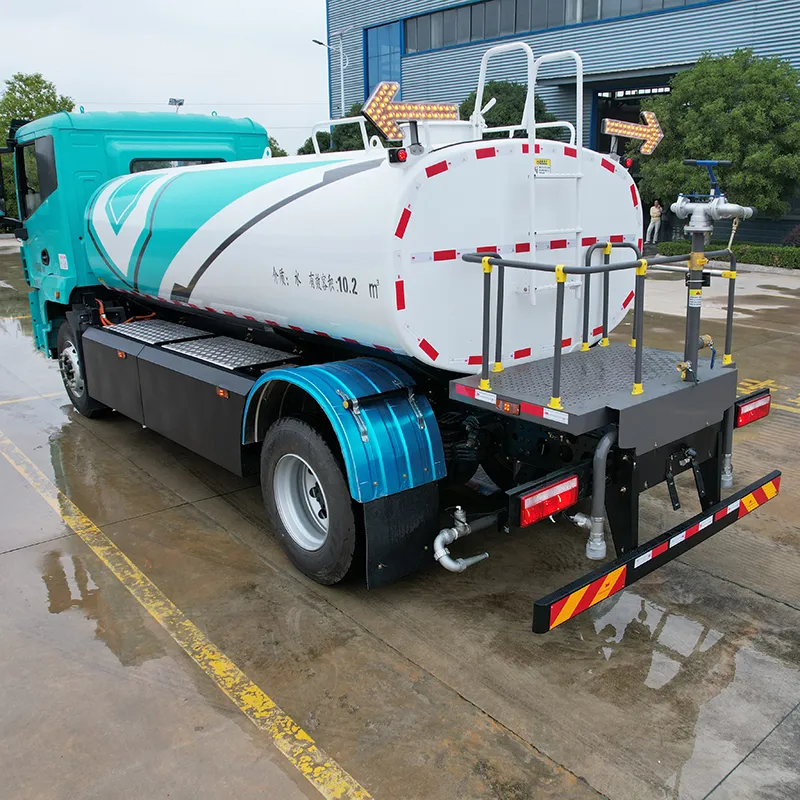

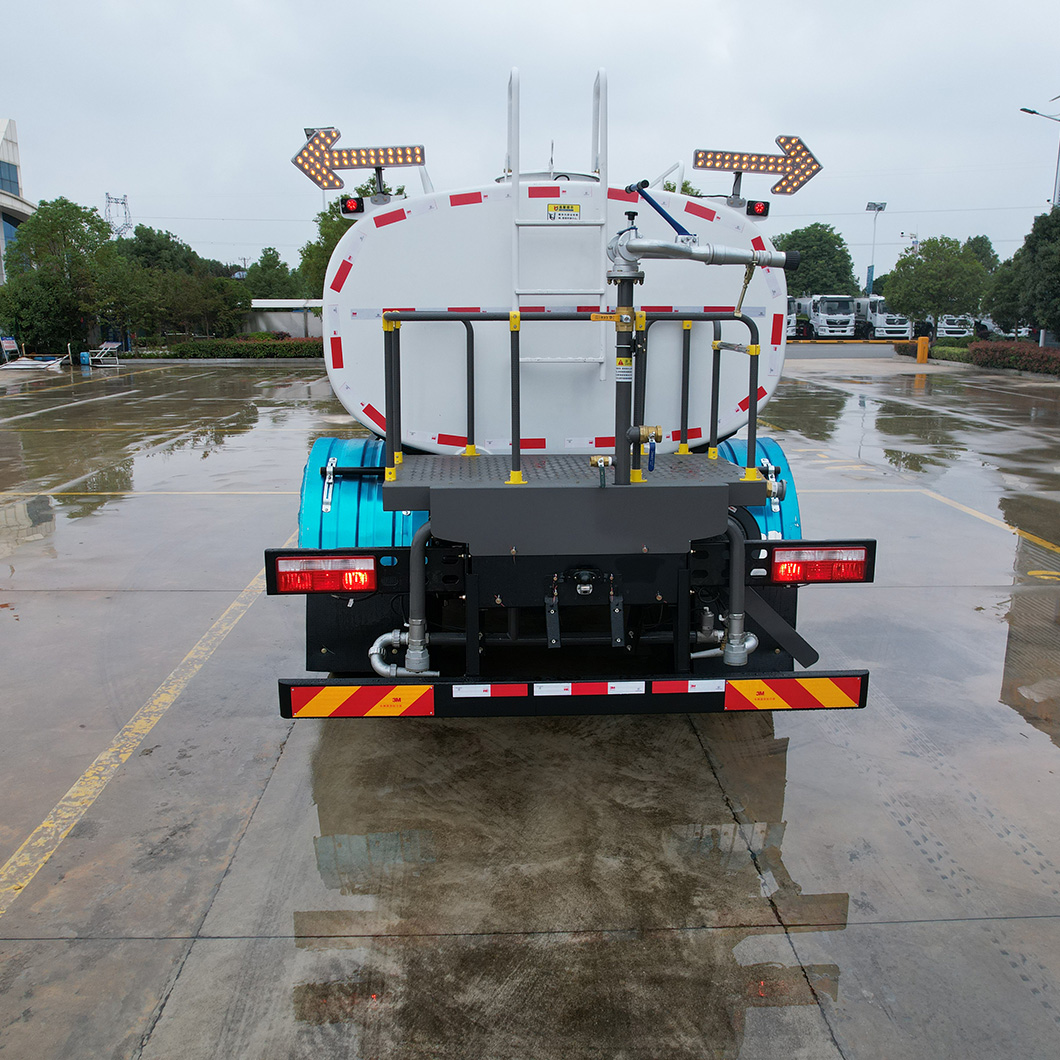

Rear Platform

• Large working space for hoses and tools.

• Equipped with anti-slip steps, safety rails, and quick-maintenance design.

Spraying System

• High-performance low-pressure water pump (65QZ-50/110N-K-T2-YW1).

• Flow rate: 50 m³/h, head: 110m.

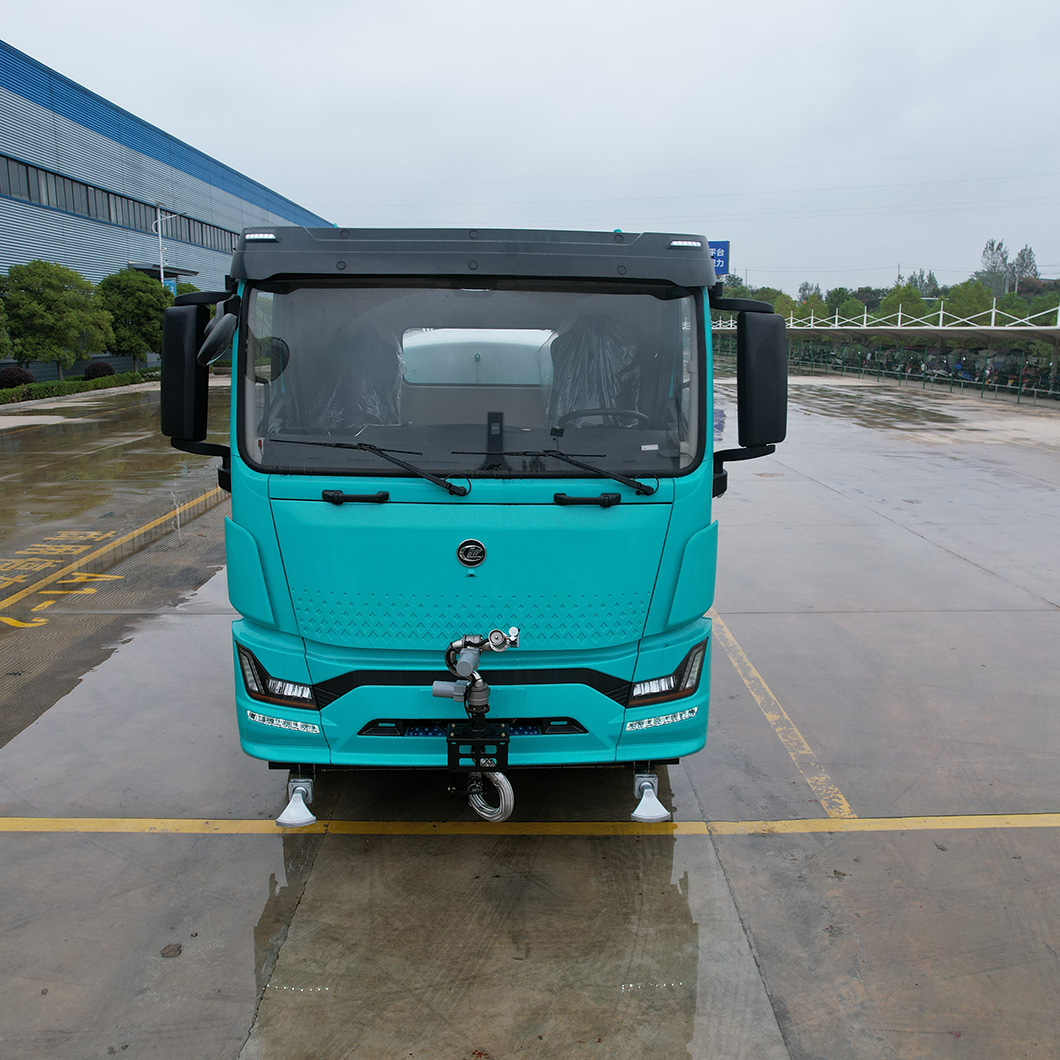

• Multiple spraying modes: front duckbill nozzles, rear sprinklers, side flushing, and 360° rotatable water cannon.

• Optional front remote-controlled water cannon, misting system, and extra spray bars.

• Emergency firefighting capability via standard fire hose interface.

Applications

• Urban road cleaning and dust suppression.

• Green belt and landscaping irrigation.

• Construction site dust control.

• Emergency firefighting assistance.

• Environmental sanitation for industrial zones, parks, and residential areas.

Frequently Asked Questions (FAQ)

Q1: What is the driving range of the 18-ton pure electric water sprinkler truck on a full charge?
A: The truck offers a range of approximately 230 kilometers under constant speed conditions, which is sufficient for a full day of urban sanitation operations.

Q2: How long does it take to charge the battery?
A: With a 150 kW fast charger, the truck can charge from 30% to 80% SOC in just 30 minutes under optimal conditions (ambient temperature ≥ 20°C).

Q3: What type of battery does this vehicle use?
A: It uses a Lithium Iron Phosphate (LFP) battery with high safety standards, excellent thermal stability, and long cycle life. The total battery capacity is 162.05 kWh.

Q4: Is the vehicle waterproof and safe for rainy operations?
A: Yes. Both the battery system and motor are IP68-rated, ensuring excellent water resistance. The truck has successfully passed 500 mm water-wading tests without performance issues.

Q5: What is the effective water tank capacity?
A: The effective water tank capacity is 10.2 cubic meters, and the total tank volume is 10.7 cubic meters, which is above the industry standard for an 18-ton vehicle.

Q6: What are the spraying capabilities?
A: The truck features front duckbill nozzles, rear sprinklers, side flushing jets, and a 360° rotatable water cannon with a shooting range of 40 meters or more. Optional features include misting systems and remote-controlled water cannons.

Q7: Can the truck be used for firefighting in emergencies?
A: Yes. The truck is equipped with standard fire hose interfaces, allowing it to serve as an emergency water supply for firefighting.

Q8: How is the durability of the tank and chassis ensured?
A: The tank is made of Q235B high-strength steel and undergoes electrophoretic coating plus anti-rust paint for superior corrosion resistance. The chassis and superstructure are designed and manufactured as an integrated unit for maximum strength and longevity.

Q9: What driver comfort features does the truck offer?
A: The cabin includes air suspension seats, automatic air conditioning, dual 12.3-inch digital displays, and multifunction steering wheel. It also supports cruise control, electronic parking brake (EPB), and silent mode for low-noise operation.

Q10: How does this model compare to traditional diesel sprinkler trucks?
A: Compared to diesel models, this pure electric truck offers zero emissions, lower operating costs, quieter performance, and simpler maintenance. It also benefits from government incentives for new energy vehicles in many regions.
